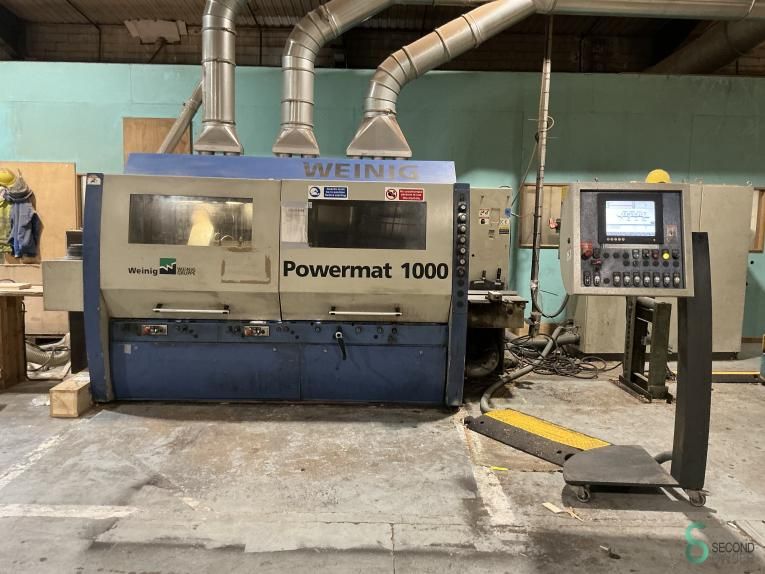

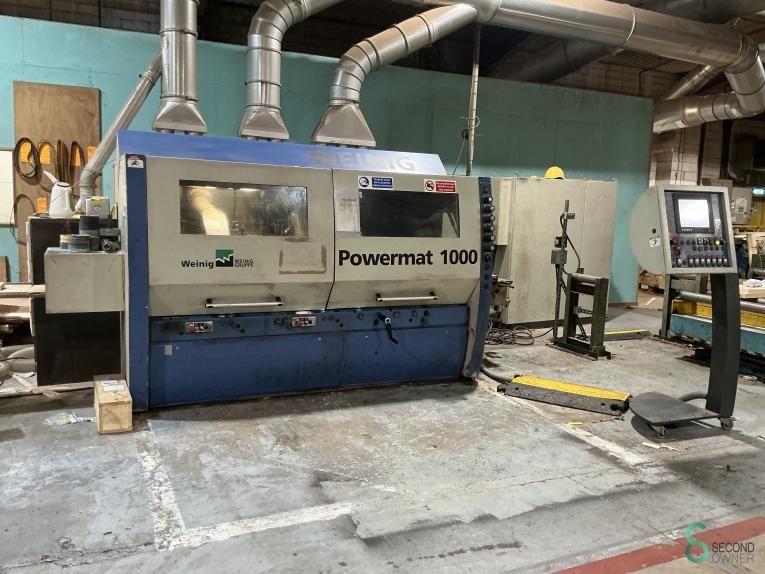

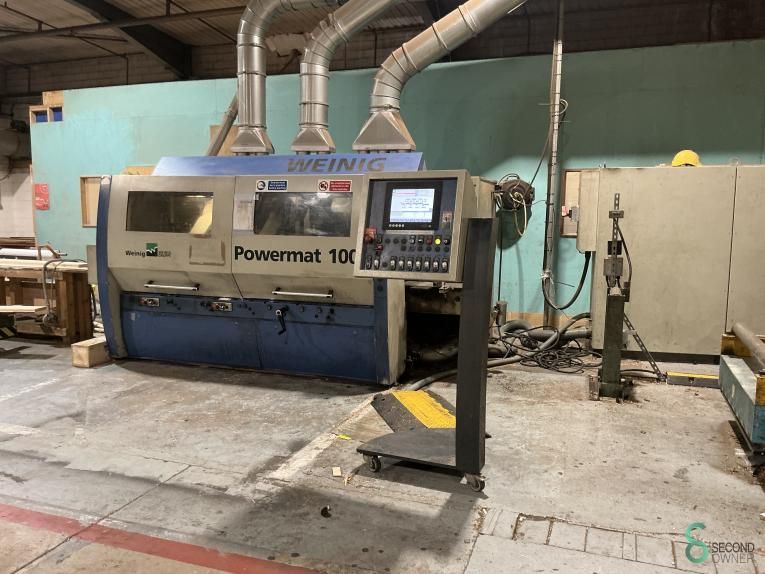

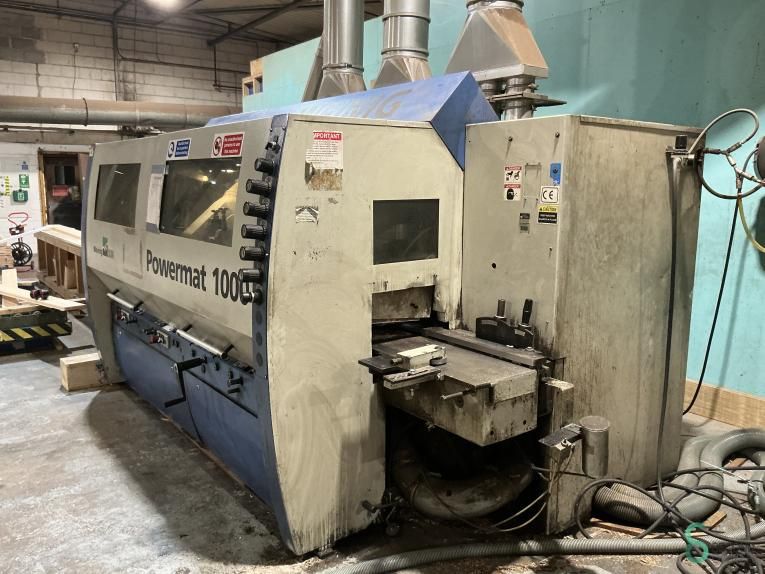

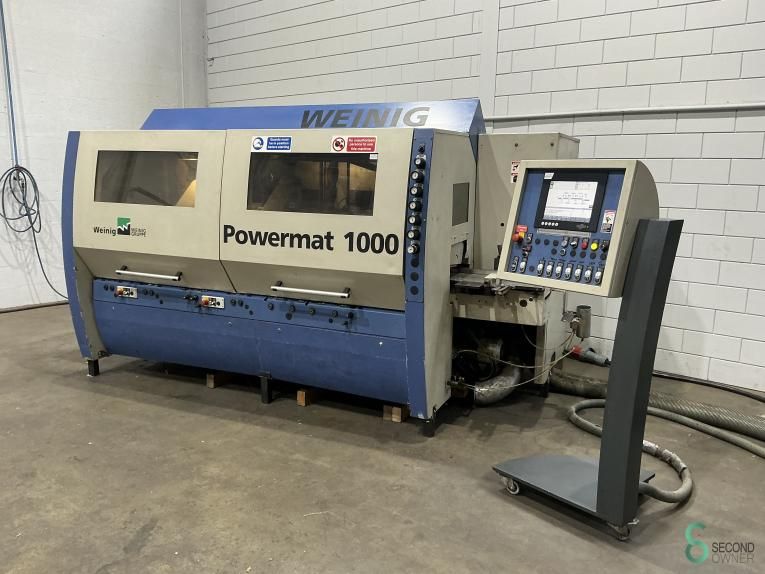

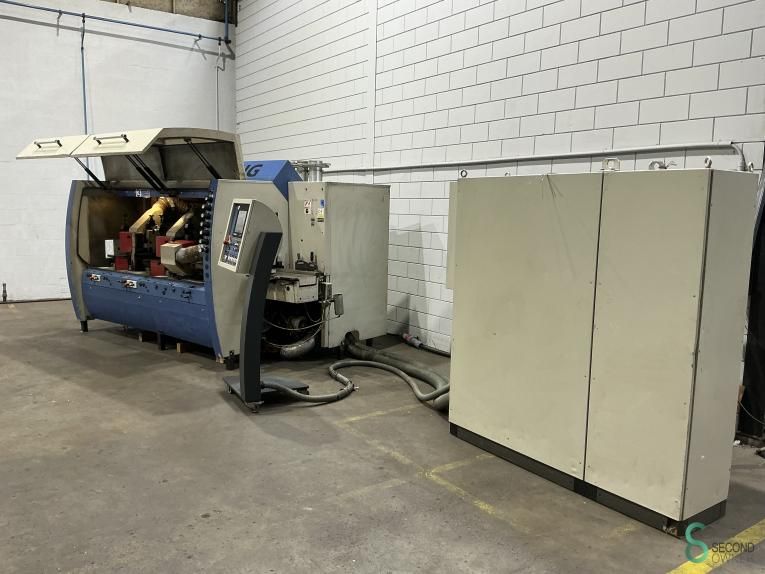

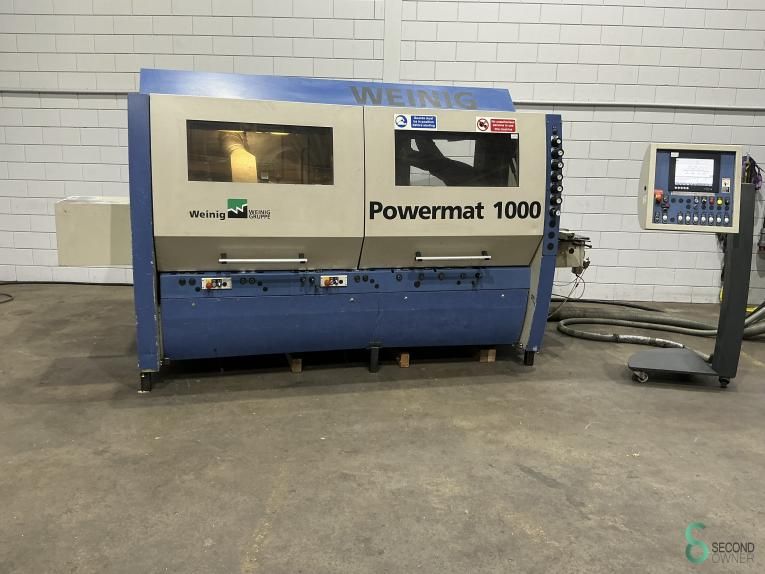

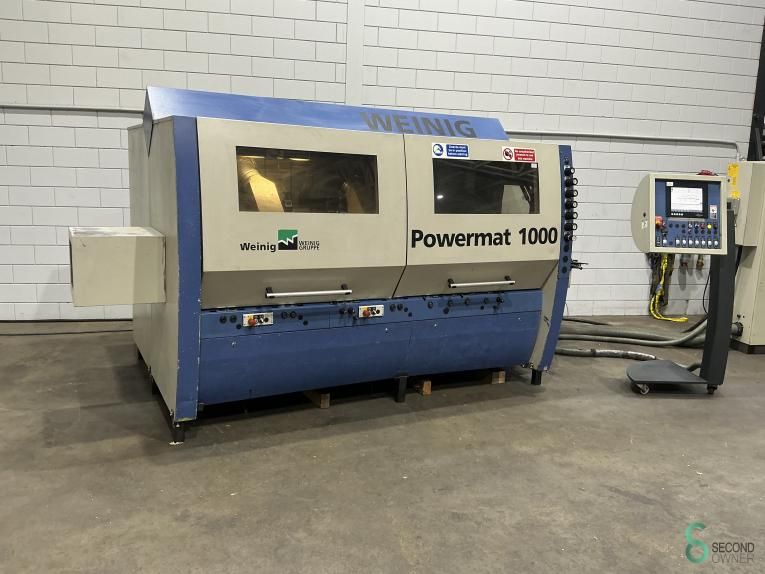

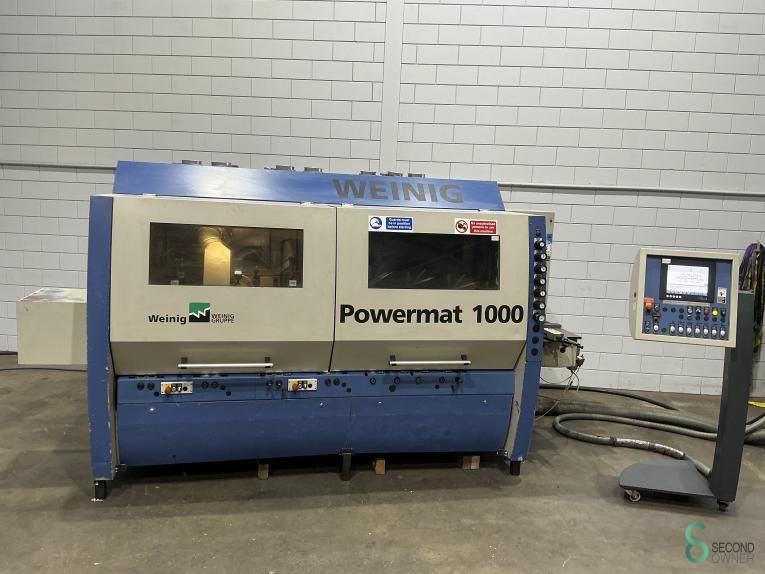

Four sided planers Weinig Powermat 1000 2004

Description

- Year: 2004
- Documentation available: No
- CE marking present: Yes
- CE certificate present: No
- Serial number: 102848
- Operating hours: 3142

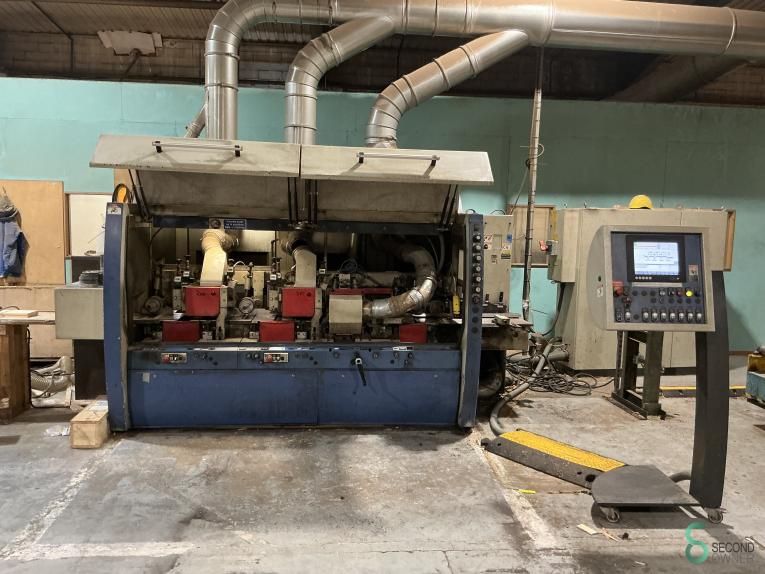

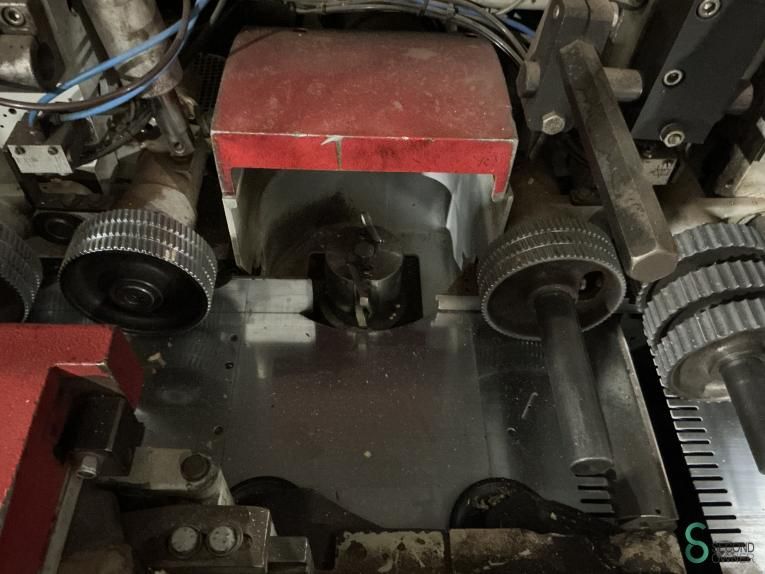

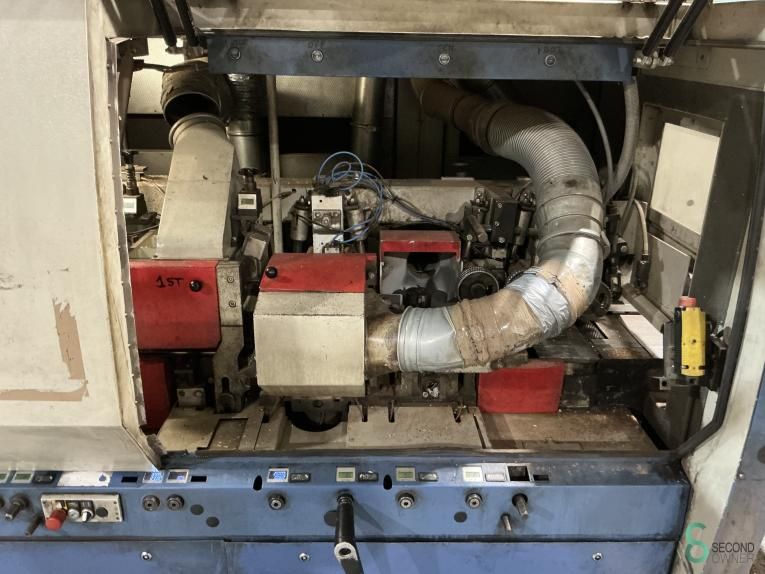

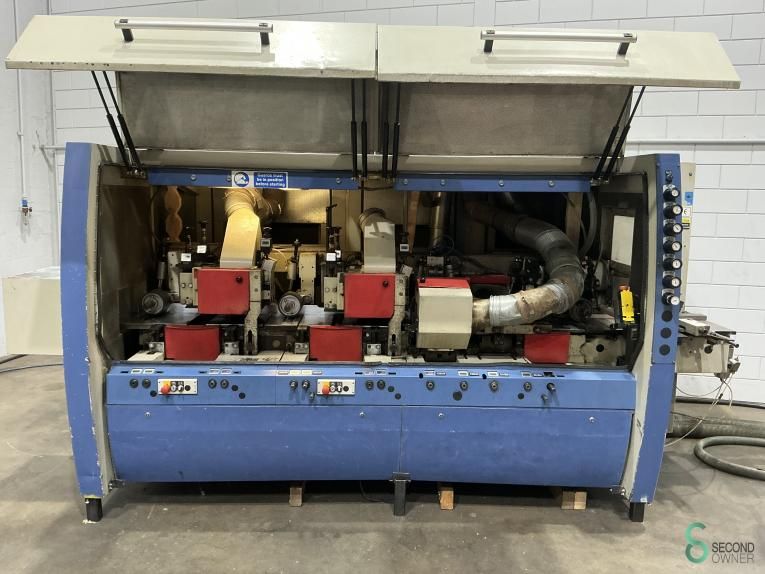

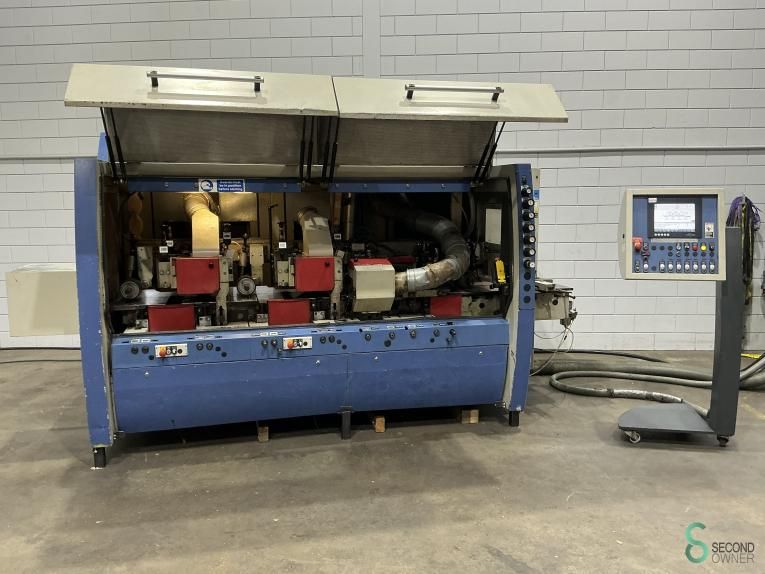

- Number of spindles [pcs.]: 7

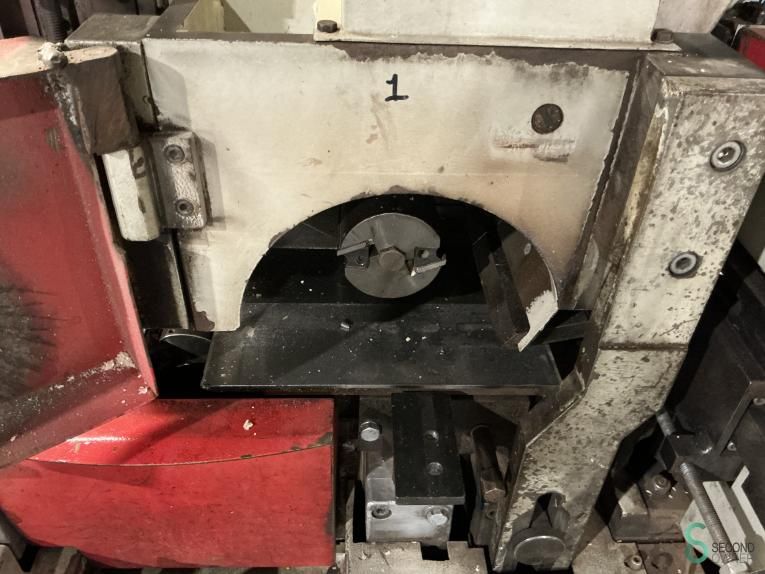

- └ Spindle 1:

- - Spindle type: Bottom
- - Motor power [kW]: 15
- - Tool present: Yes

- └ Spindle 2:

- - Spindle type: Right
- - Motor power [kW]: 11
- - Tool present: Yes

- └ Spindle 3:

- - Spindle type: Left
- - Motor power [kW]: 11
- - Tool present: Yes

- └ Spindle 4:

- - Spindle type: Top
- - Motor power [kW]: 22
- - Tool present: Yes

- └ Spindle 5:

- - Spindle type: Bottom
- - Motor power [kW]: 15
- - Tool present: Yes

- └ Spindle 6:

- - Spindle type: Top
- - Motor power [kW]: 30
- - Tool present: Yes

- └ Spindle 7:

- - Spindle type: Bottom
- - Motor power [kW]: 15

- Min. planing width [mm]: 20
- Max. planing width [mm]: 300
- Min. planing height [mm]: 3
- Max. planing height [mm]: 160

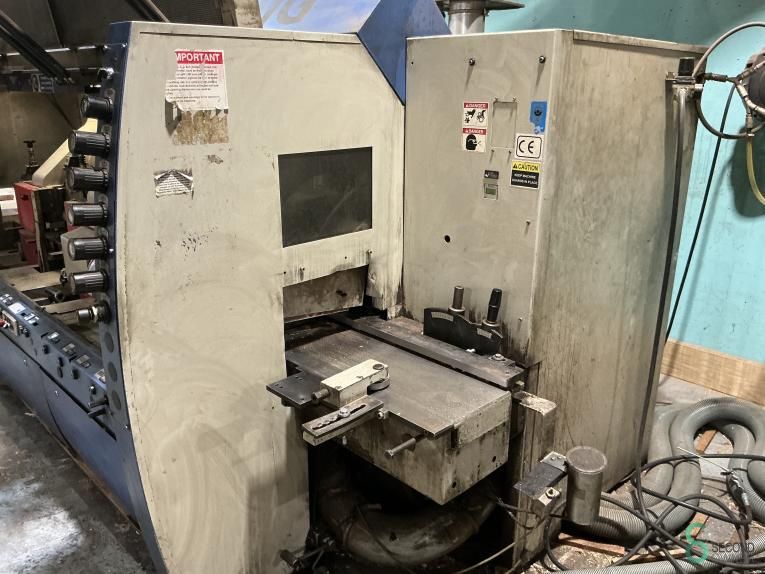

- Feed table length [mm]: 1000

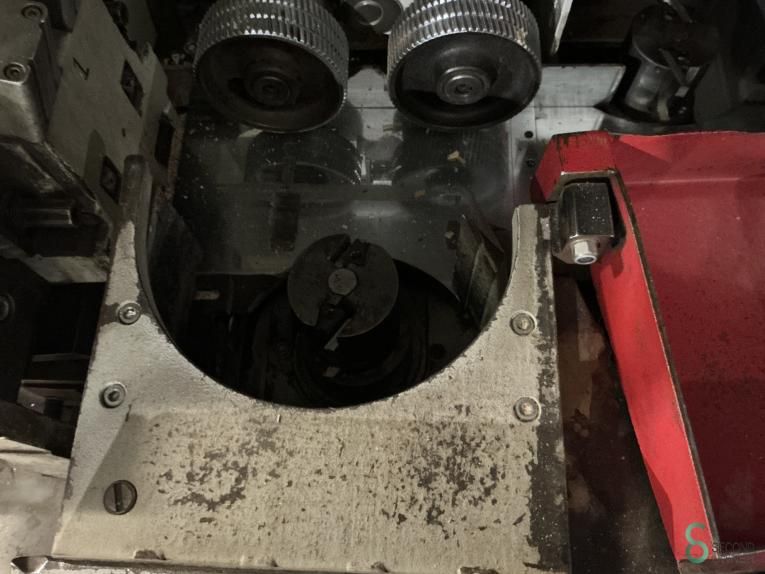

- Feed roller diameter [mm]: 140
- Conveyor drive: Cardan drive
- Lubrication system: Automatic
- Diameter extraction nozzle [mm]: 160
- Options: Powered rollers in table, Powerlock
- Feed speed: Manual

- └ Min. feed speed [m/min]: 5
- └ Max. feed speed [m/min]: 33
- └ Feed speed control: Continuously adjustable

- Voltage [V]: 400
- Current consumption [A]: 278
- Fuse [A]: 400
- Power [kW]: 128.0
- Transport dimensions: 5500mm x 2400mm x 2100mm (l x w x h)
- Transport weight [kg]: 5000kg
- Transport packages [pcs.]: 3
