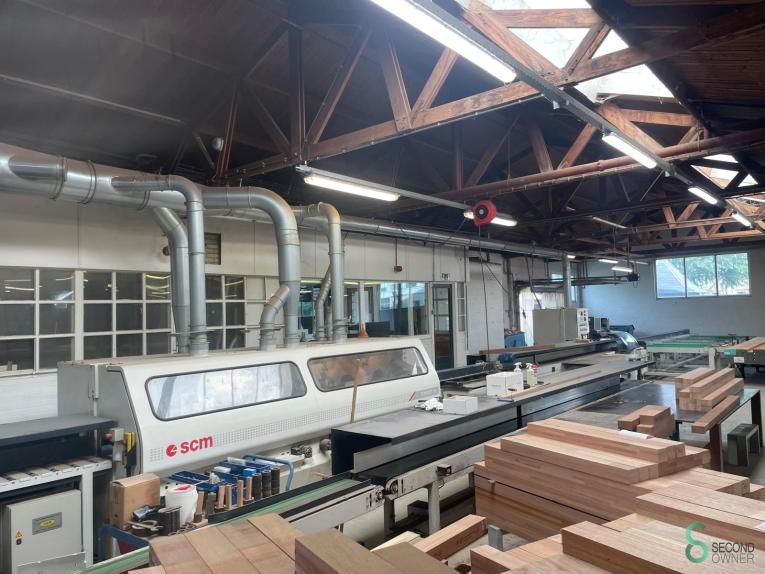

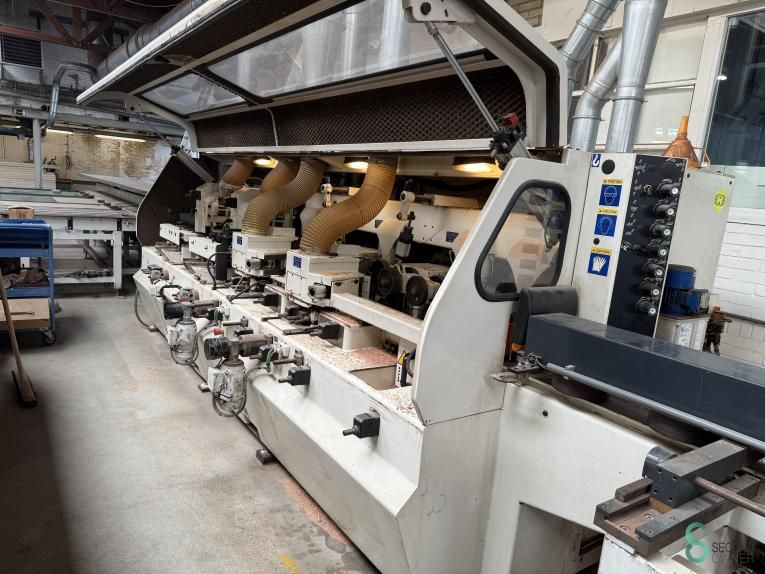

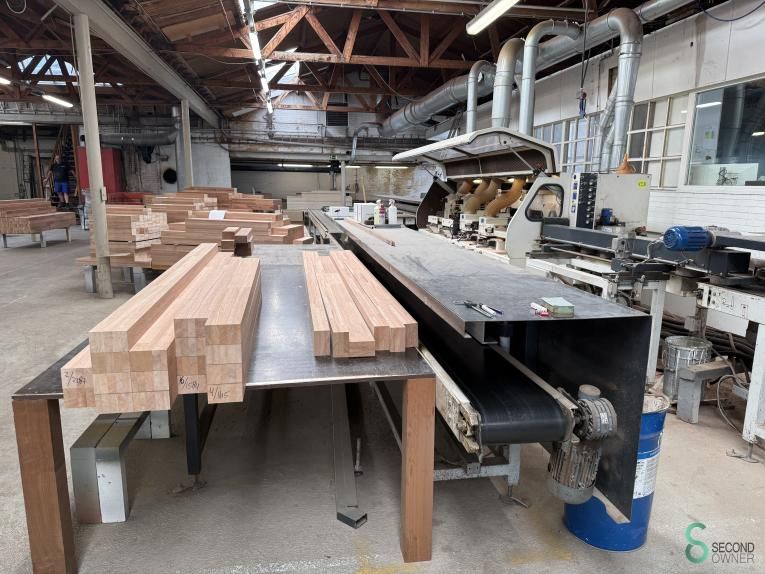

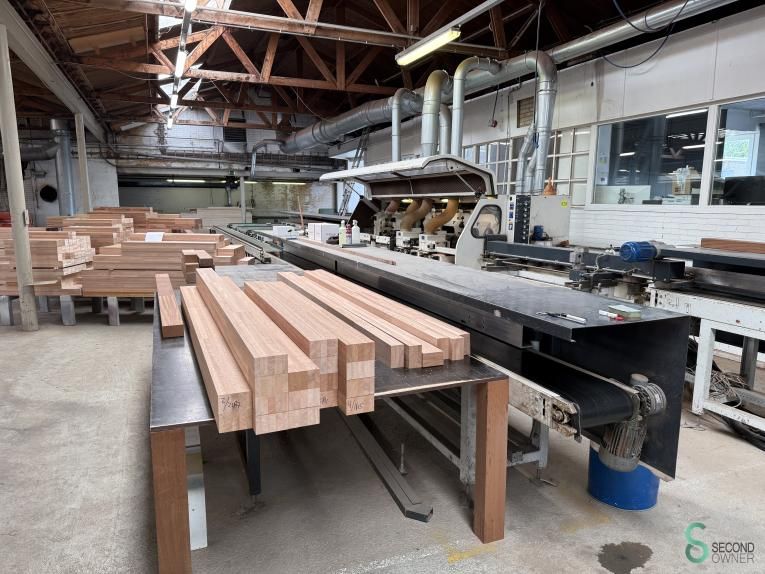

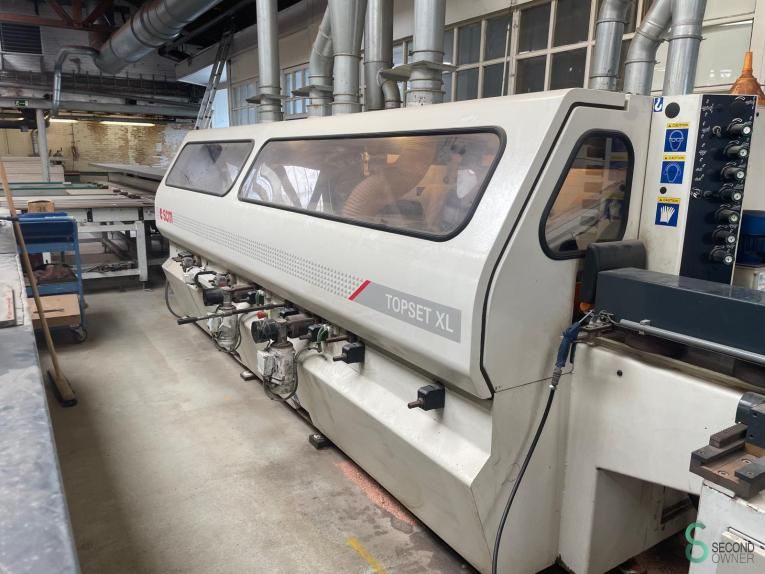

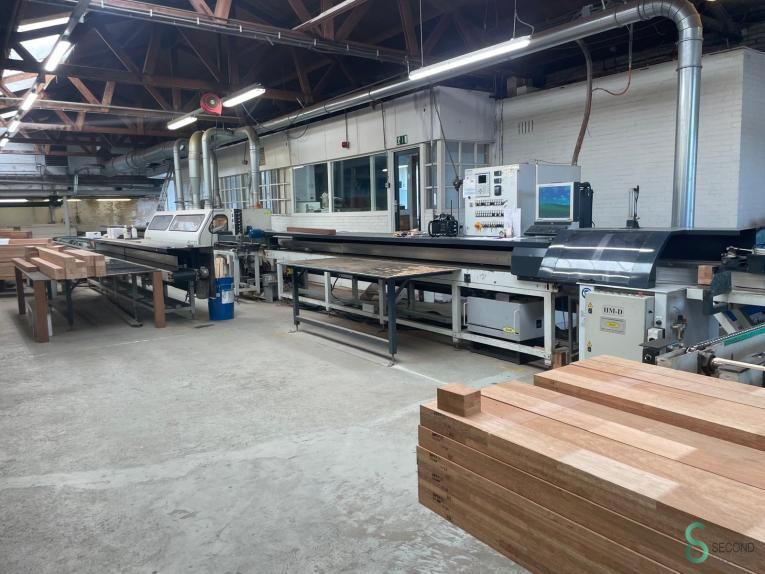

Four sided planers SCM Topset XL 8 2006

Description

- Year: 2006
- Documentation available: Yes

- └ Type Documentation: Technical data, Electrical diagrams

- CE marking present: Yes
- CE certificate present: No
- Serial number: AA1/015315

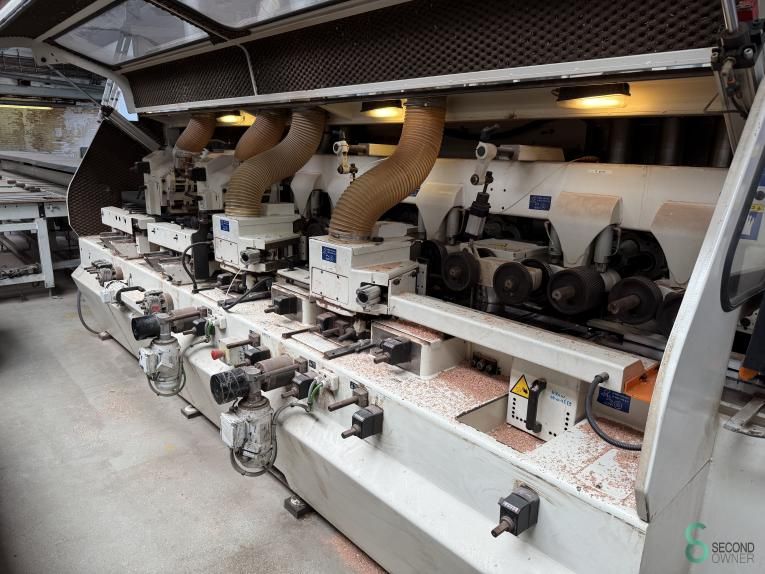

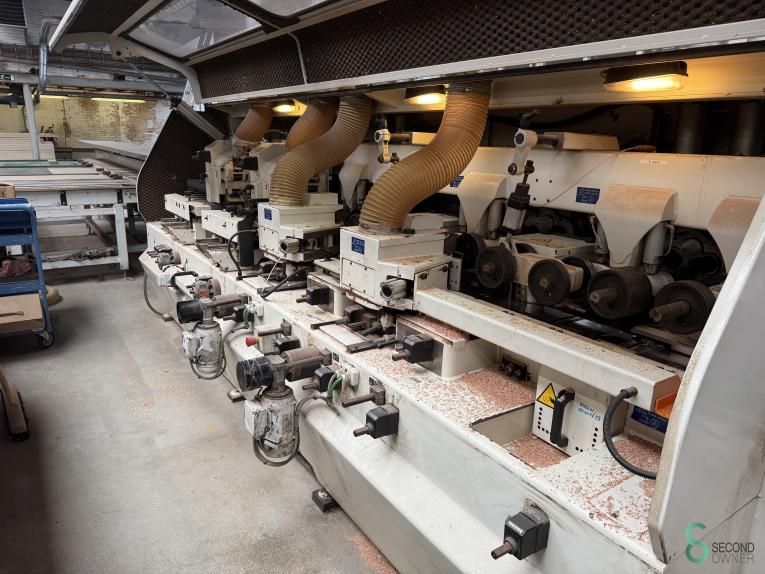

- Number of spindles [pcs.]: 8

- └ Spindle 1:

- - Spindle type: Bottom
- - Motor power [kW]: 15
- - Spindle diameter [mm]: 40
- - Tool present: Yes

- └ Spindle 2:

- - Spindle type: Right
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 40
- - Tool present: Yes

- └ Spindle 3:

- - Spindle type: Left
- - Motor power [kW]: 15
- - Spindle diameter [mm]: 40
- - Tool present: Yes

- └ Spindle 4:

- - Spindle type: Right
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 40
- - Tool present: Yes

- └ Spindle 5:

- - Spindle type: Left
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 40
- - Tool present: Yes

- └ Spindle 6:

- - Spindle type: Top
- - Motor power [kW]: 15
- - Spindle diameter [mm]: 40
- - Tool present: Yes

- └ Spindle 7:

- - Spindle type: Top
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 40
- - Tool present: Yes

- └ Spindle 8:

- - Spindle type: Bottom
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 40
- - Tool present: Yes

- Min. planing width [mm]: 25
- Max. planing width [mm]: 240
- Min. planing height [mm]: 10
- Max. planing height [mm]: 120
- Feed table length [mm]: 2500
- Conveyor drive: Cardan drive
- Lubrication system: Automatic
- Options: Automatic outfeed system, Automatic feeding system

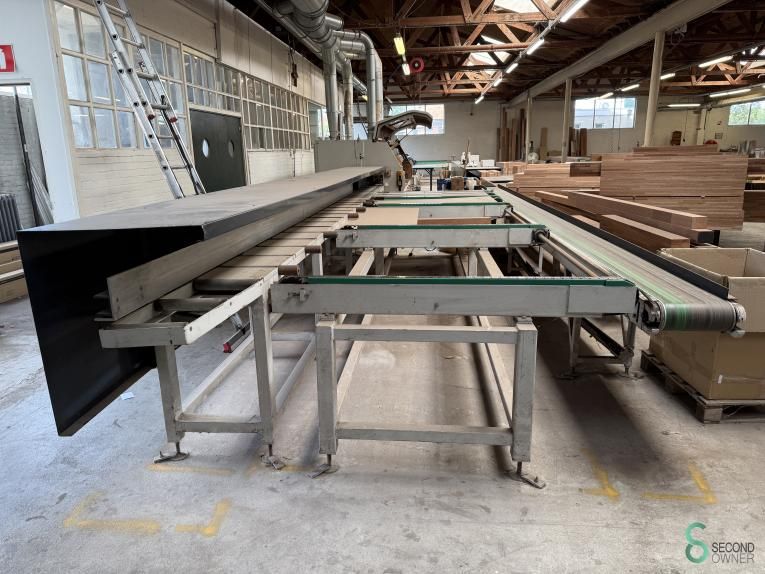

- Feeding system:

- └ Brand: H&M
- └ Max. feed length [mm]: 250

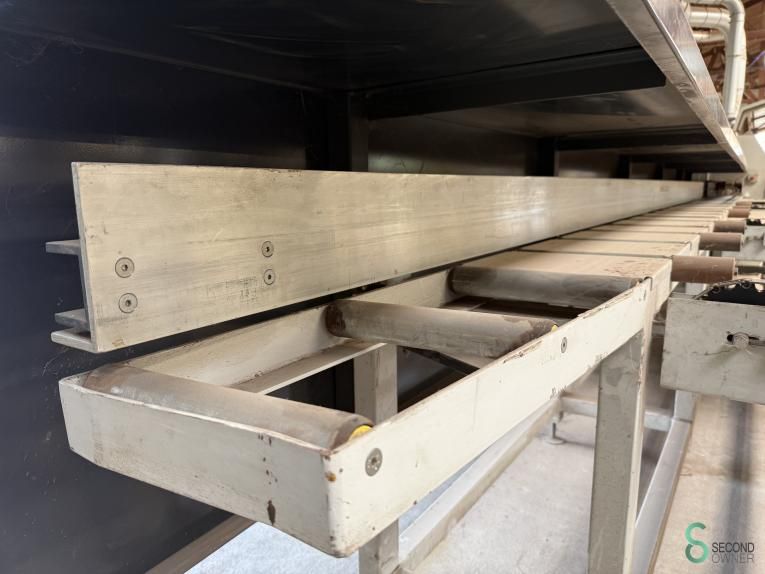

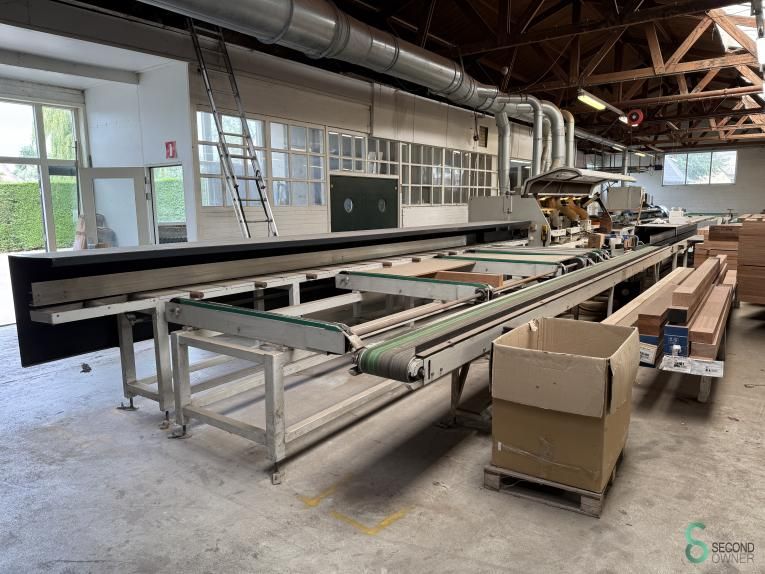

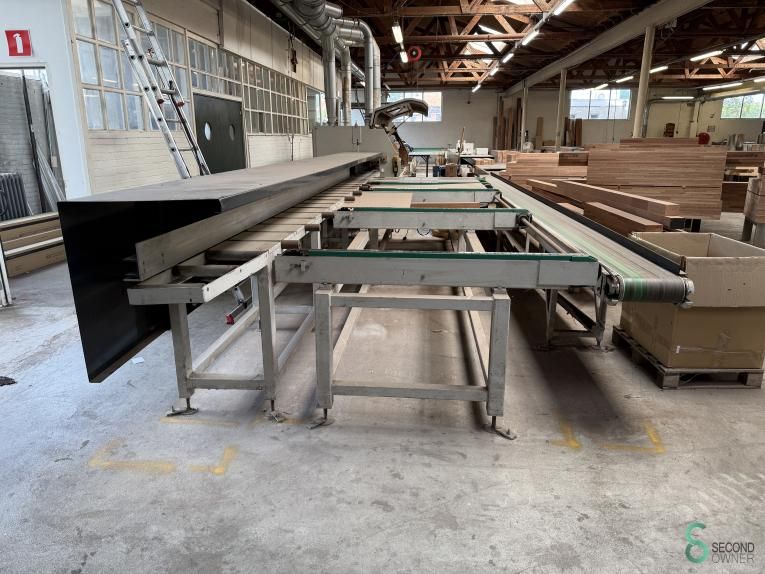

- Outfeed system:

- └ Brand: H&M
- └ Max. output length [mm]: 760

- Transport dimensions: 20000mm x 2400mm x 2200mm (l x w x h)
- Transport weight [kg]: 6000kg
- Transport packages [pcs.]: 8
