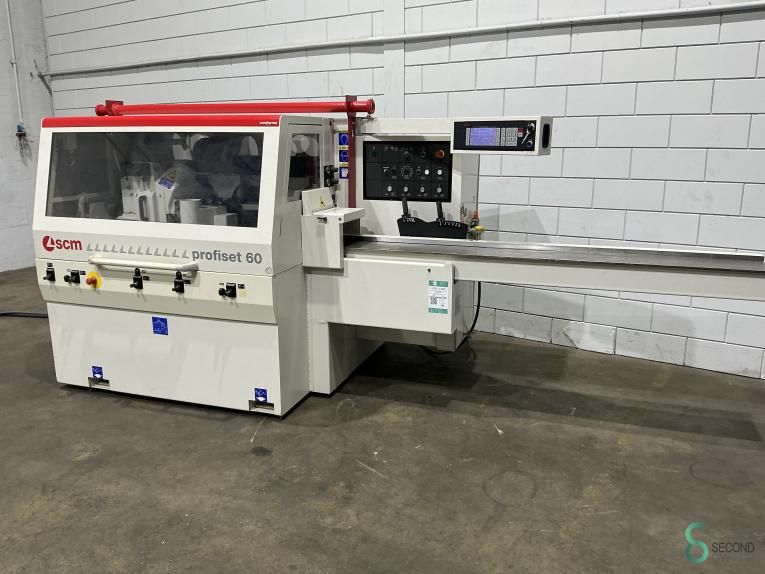

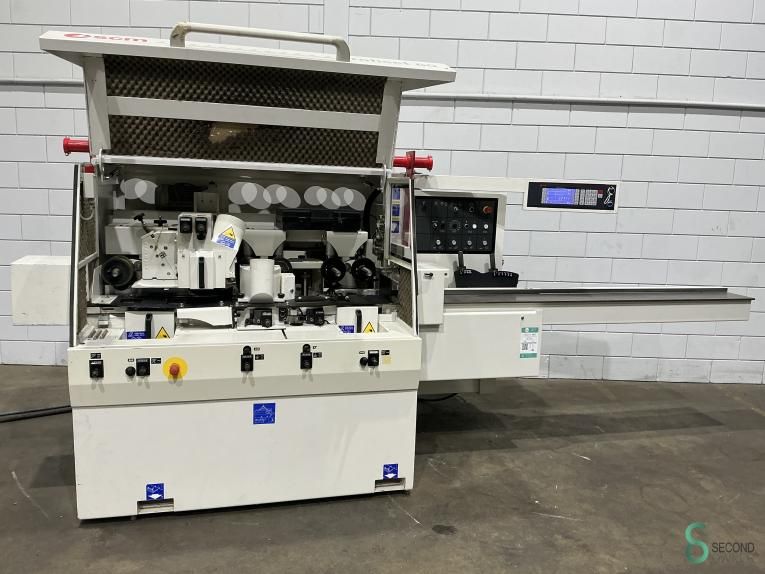

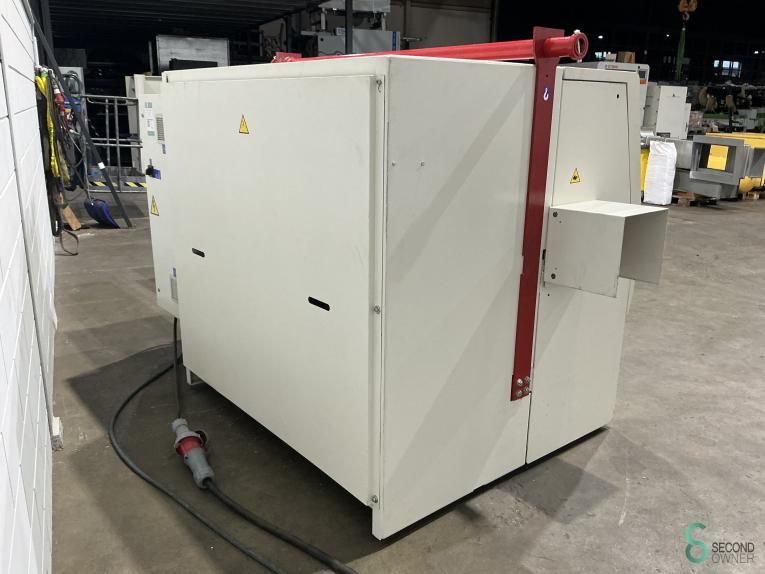

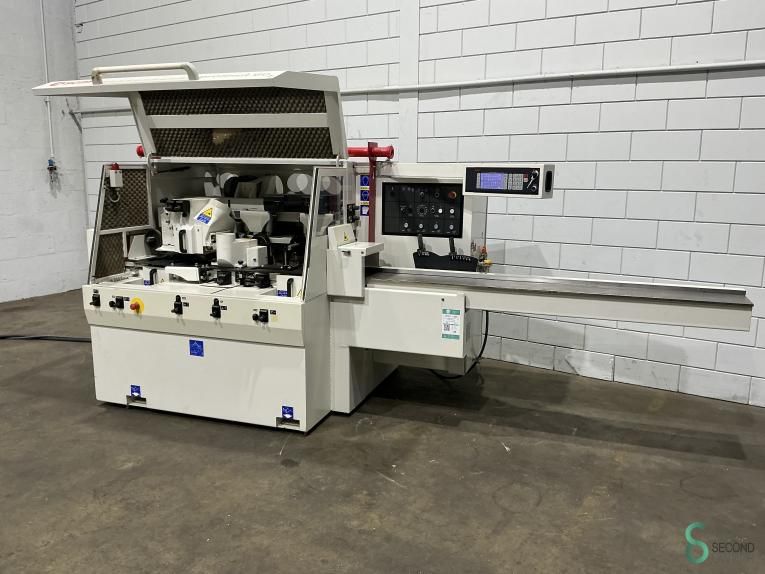

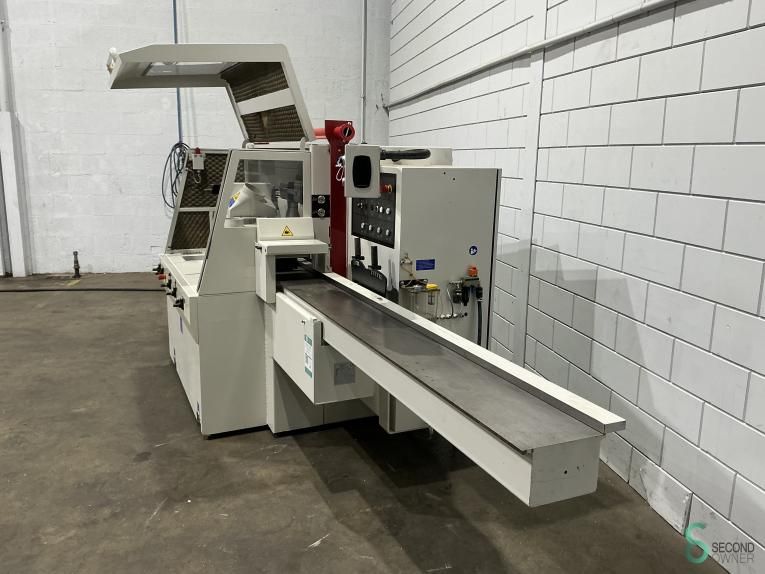

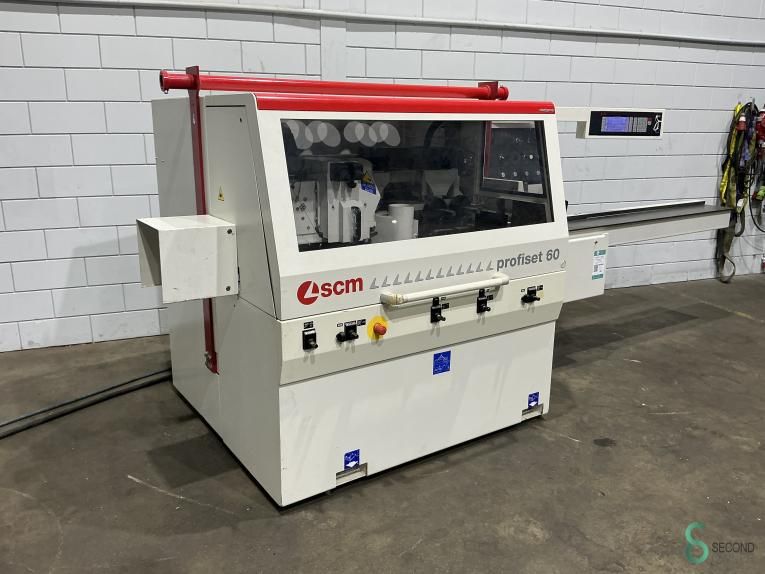

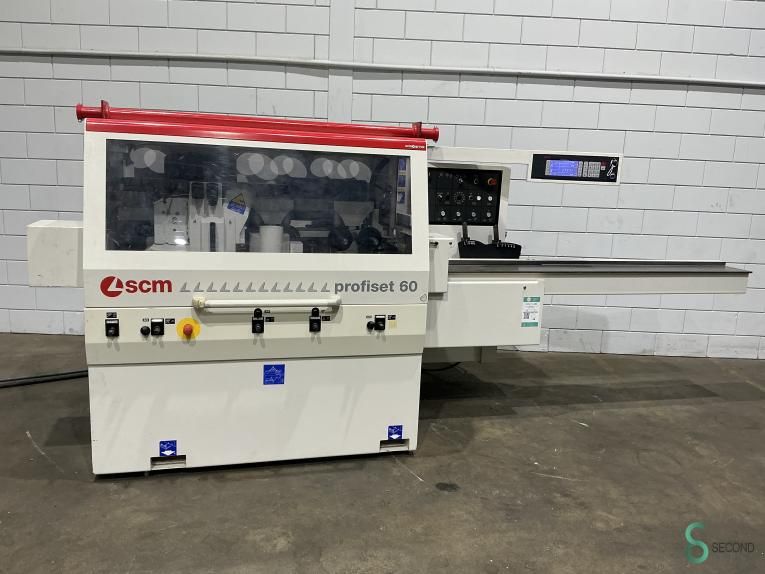

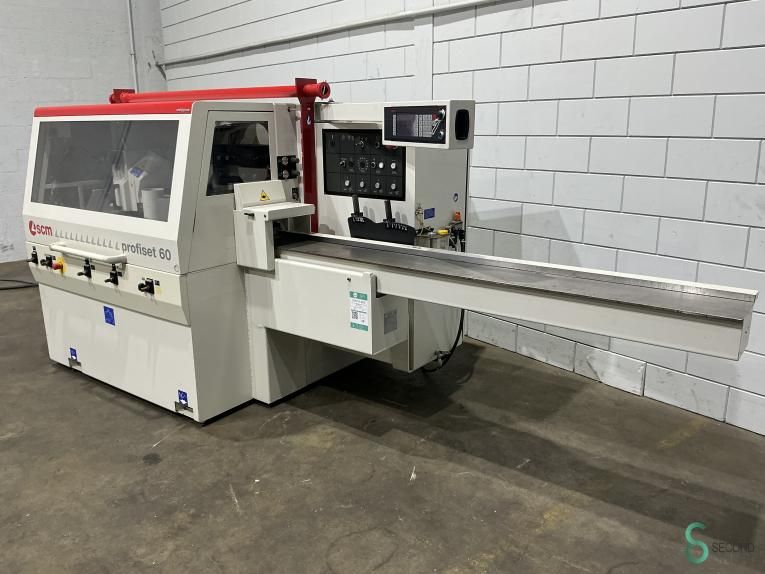

Four sided planers SCM Profiset 60 2013

Description

- Year: 2013

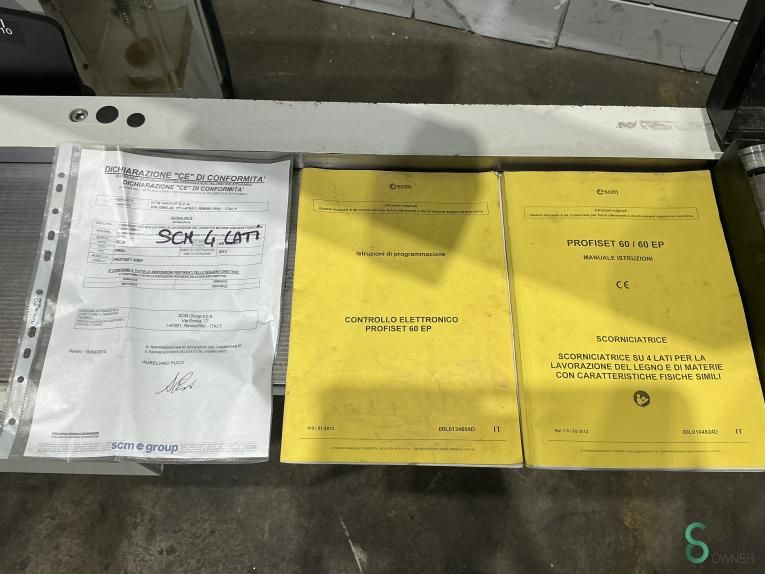

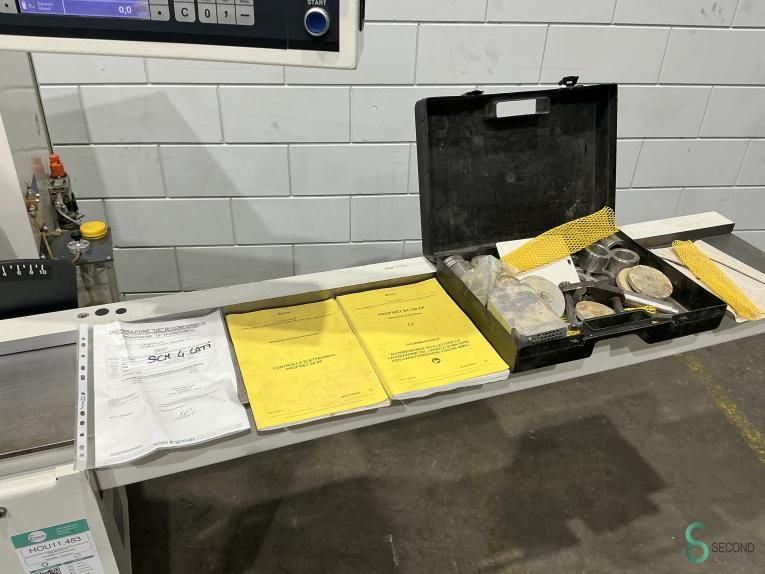

- Documentation available: Yes

- └ Type Documentation: Operating system, Technical data, User manual

- CE marking present: Yes
- CE certificate present: No
- Serial number: AB - 216795
- Number of spindles [pcs.]: 5

- └ Spindle 1:

- - Spindle type: Bottom
- - Motor power [kW]: 5.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 180

- └ Spindle 2:

- - Spindle type: Right
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 180

- └ Spindle 3:

- - Spindle type: Left
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 180

- └ Spindle 4:

- - Spindle type: Top
- - Motor power [kW]: 9
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 180

- └ Spindle 5:

- - Spindle type: Bottom
- - Motor power [kW]: 5.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 140

- Min. planing width [mm]: 25
- Max. planing width [mm]: 230
- Min. planing height [mm]: 6
- Max. planing height [mm]: 120
- Feed table length [mm]: 2470
- Feed roller diameter [mm]: 140
- Feed motor [kW]: 3
- Conveyor drive: Cardan drive
- Lubrication system: Manual
- Diameter extraction nozzle [mm]: 120
- Options: Powered rollers in table
- Feed speed: Automatic

- └ Min. feed speed [m/min]: 5
- └ Max. feed speed [m/min]: 25
- └ Feed speed control: Variable

- Voltage [V]: 400
- Current consumption [A]: 57
- Fuse [A]: 63
- Power [kW]: 10.0
- Transport dimensions: 4150mm x 1650mm x 1750mm (l x w x h)
- Transport weight [kg]: 2600kg
- Transport packages [pcs.]: 1
