CNC Horizontal Machine centers Biesse Rover C6.65 CONF.3 2007

Description

- Machine available from: 2026-06-24
- Year: 2007
- Documentation available: Yes
- CE marking present: Yes
- CE certificate present: No
- Serial number: 97649
- Number of milling spindles [pcs.]: 2

- └ Milling spindle 1:

- - Number of controlled axes [pcs.]: 5
- - Min. spindle speed [rpm]: 1000
- - Max. spindle speed [rpm]: 20000
- - Main motor power [kW]: 9

- └ Milling spindle 2:

- - Number of controlled axes [pcs.]: 3
- - Main motor power [kW]: 18.5

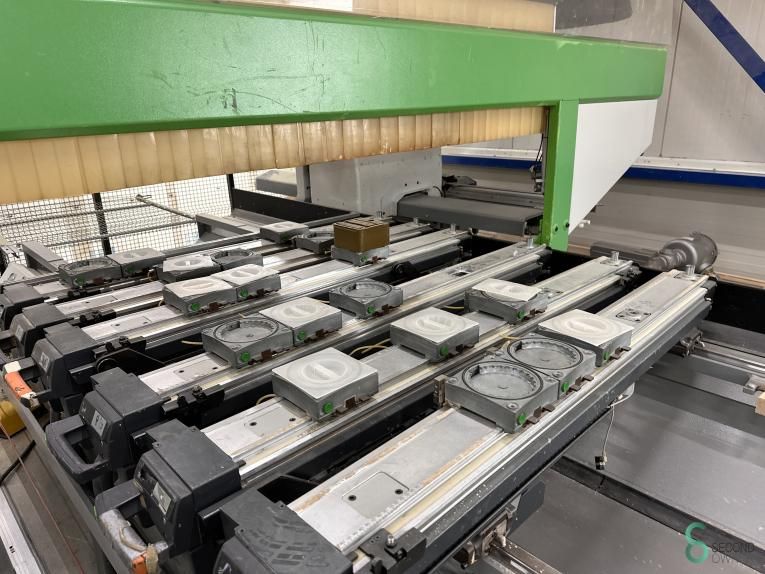

- Type milling table: Beam table
- Tool holder: HSK-F63
- Material clamp system: Pneumatic
- Drilling unit present: No

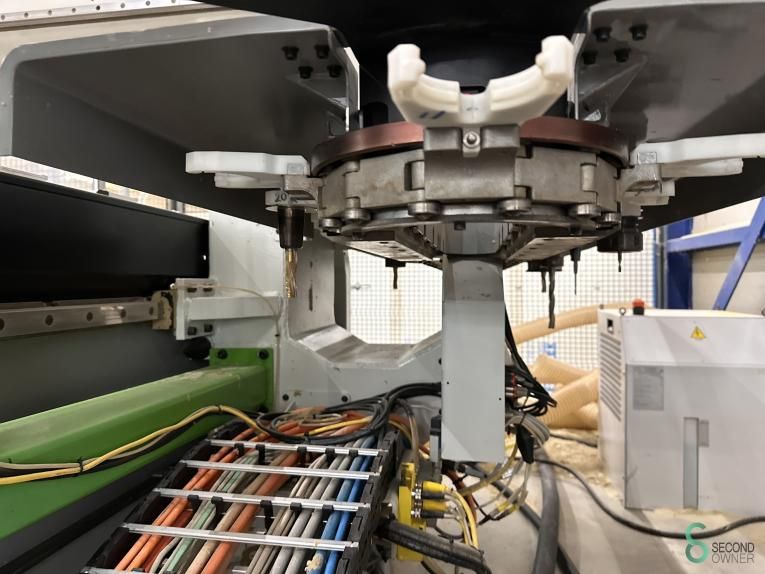

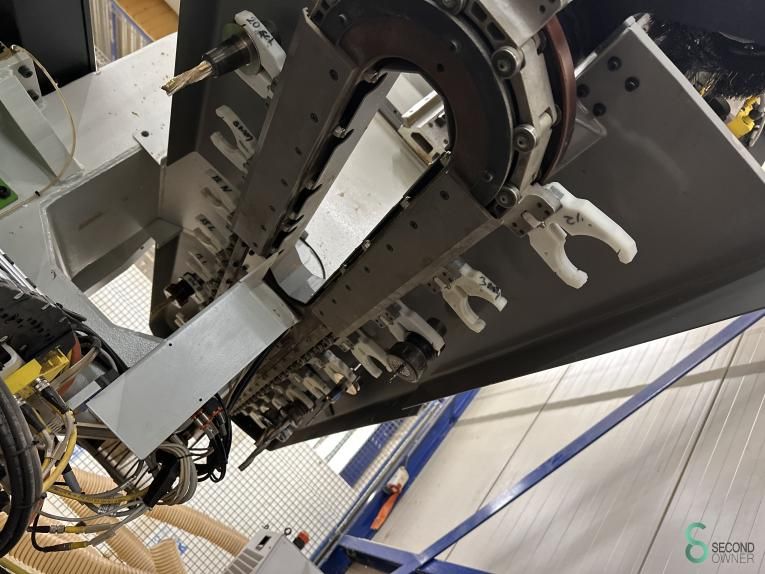

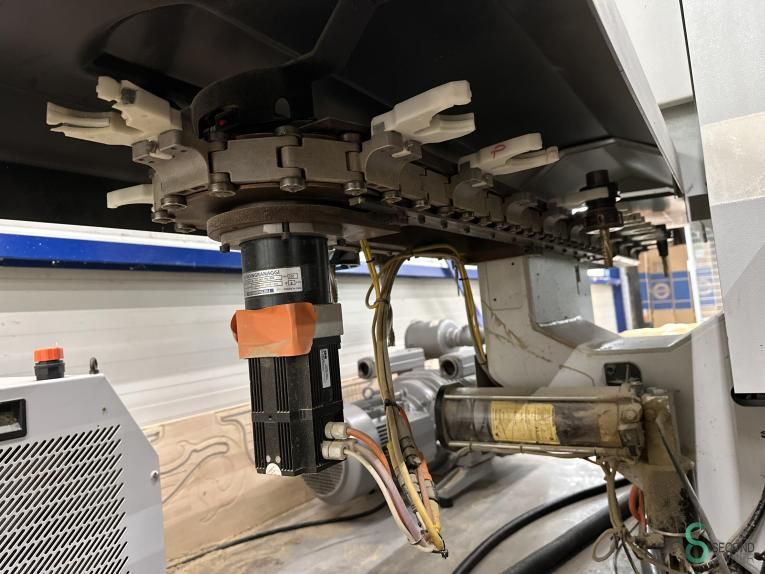

- Tool changer positions [pcs.]: 22
- System/software: BiesseWorks
- Safety feature: Safety mat

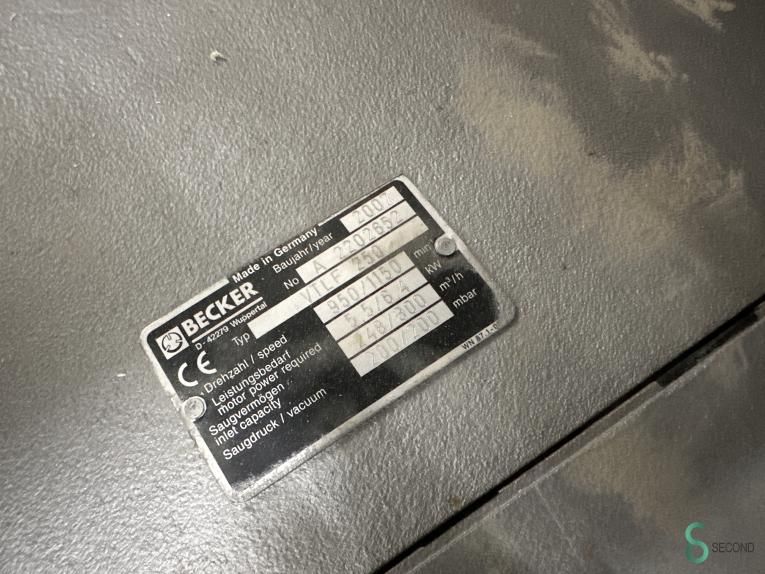

- Vacuum pump present: Yes

- └ Number [pcs.]: 1
- └ Brand: Becker
- └ Type: VTLF 250
- └ Year of manufacture: 2007
- └ Main motor power [kW]: 5.5
- └ Capacity [m³/h]: 250

- Tools included: No
- CNC options: EPS system, Offcut conveyor, Manual control
- CNC documentation available: User keys/licenses, USB stick
- Table length [mm]: 6200
- Table width [mm]: 1320
- Working range X [mm]: 6200
- Working range Y [mm]: 1535
- Z-axis working range [mm]: 275
- X-axis maximum stroke [mm]: 6820
- Y-axis maximum stroke [mm]: 1963
- Transport dimensions: 11000mm x 2400mm x 2500mm (l x w x h)
- Transport weight [kg]: 7200kg
- Transport packages [pcs.]: 1
