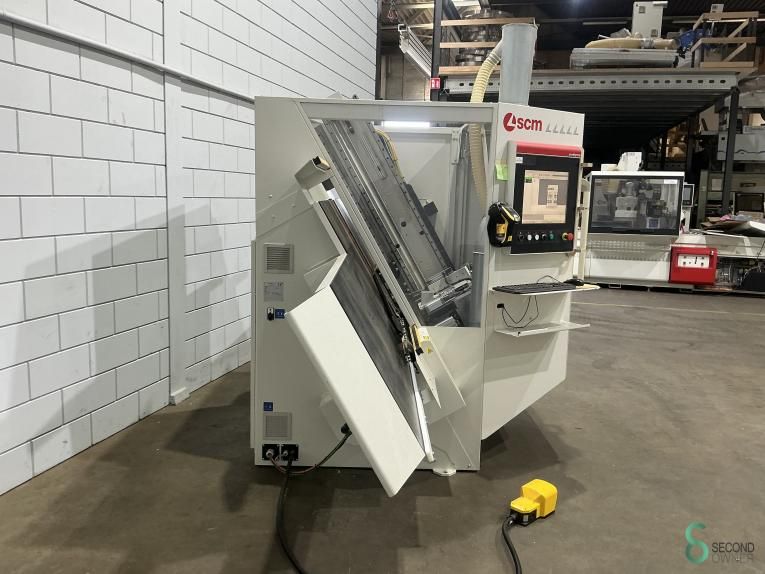

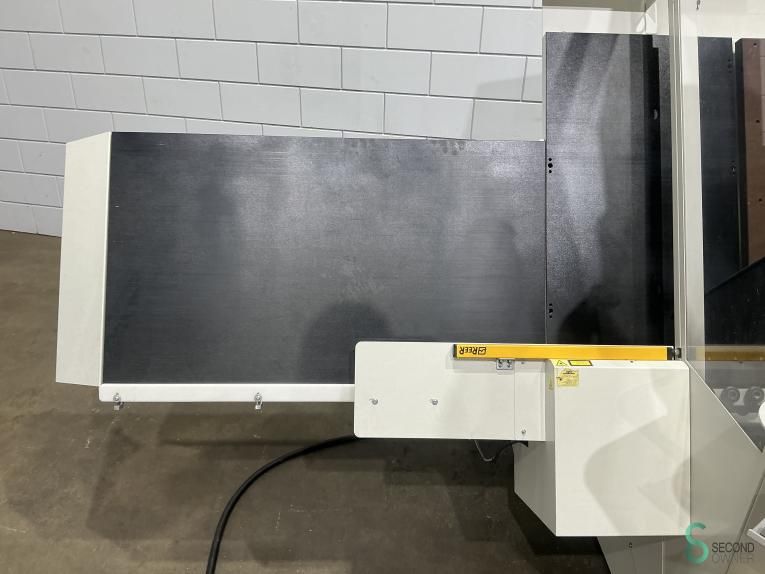

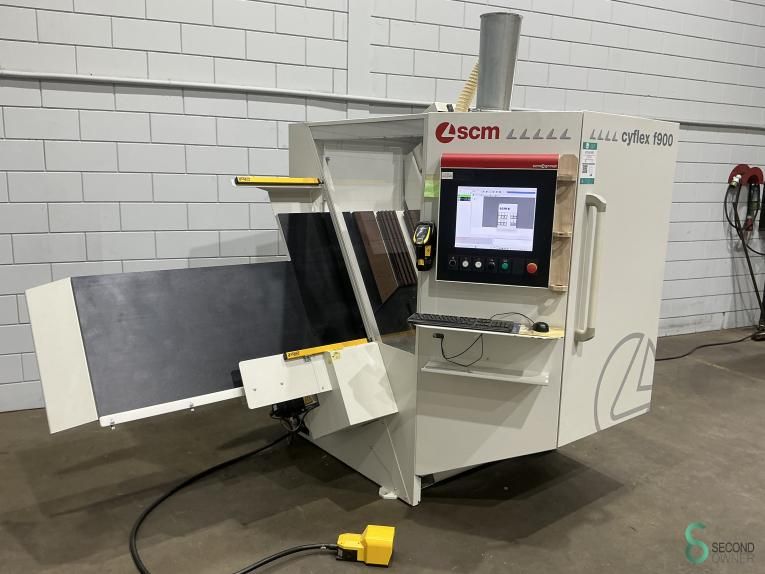

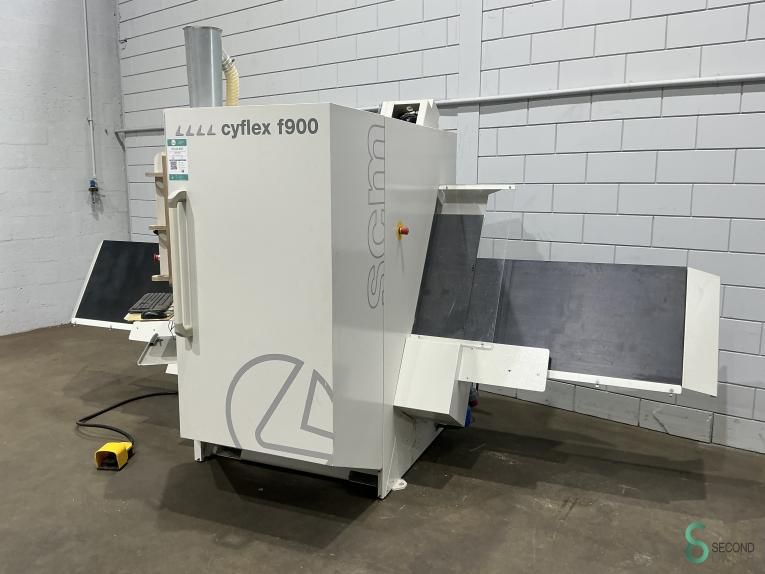

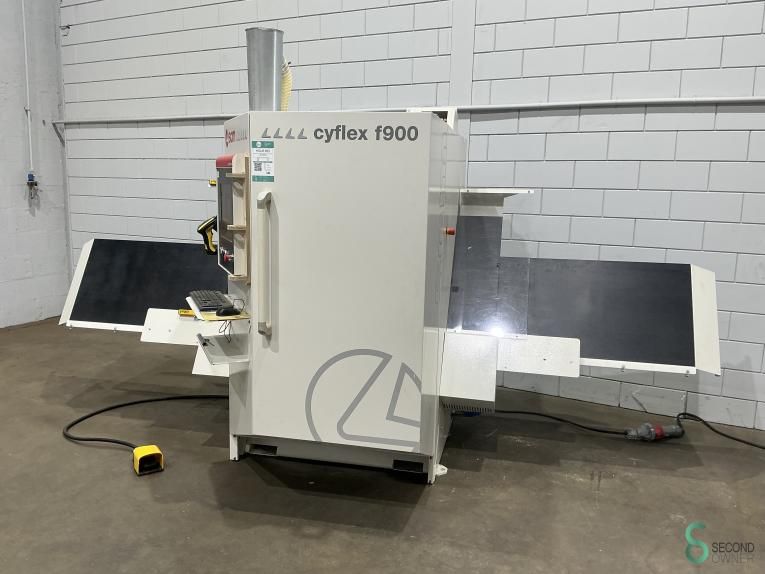

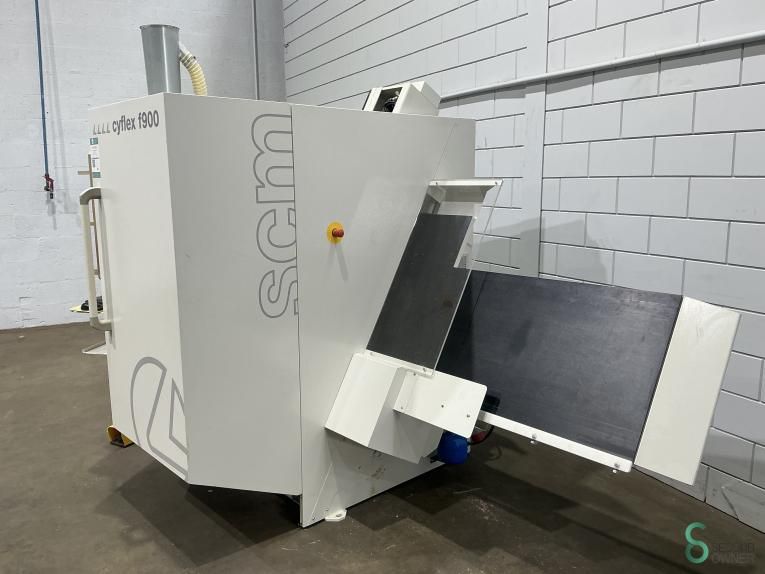

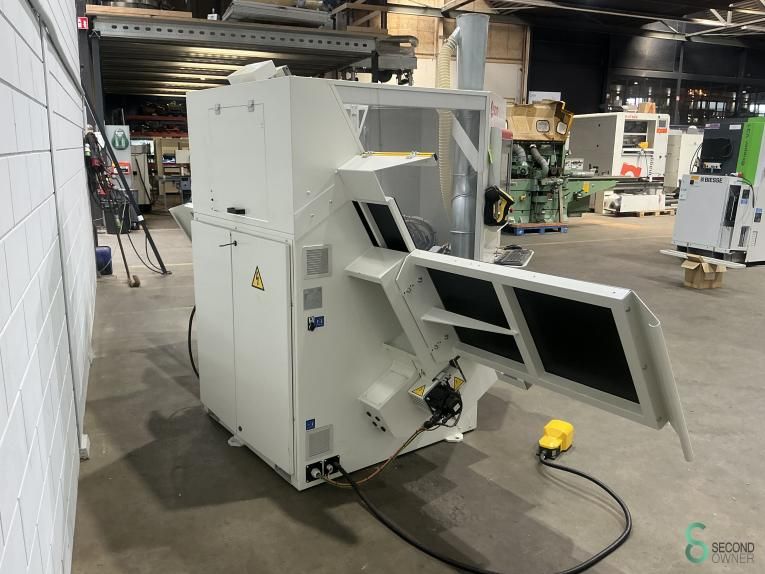

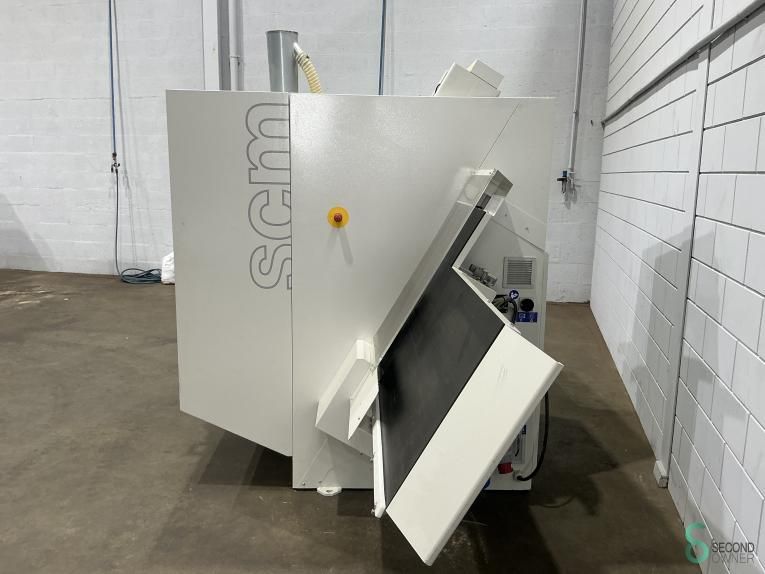

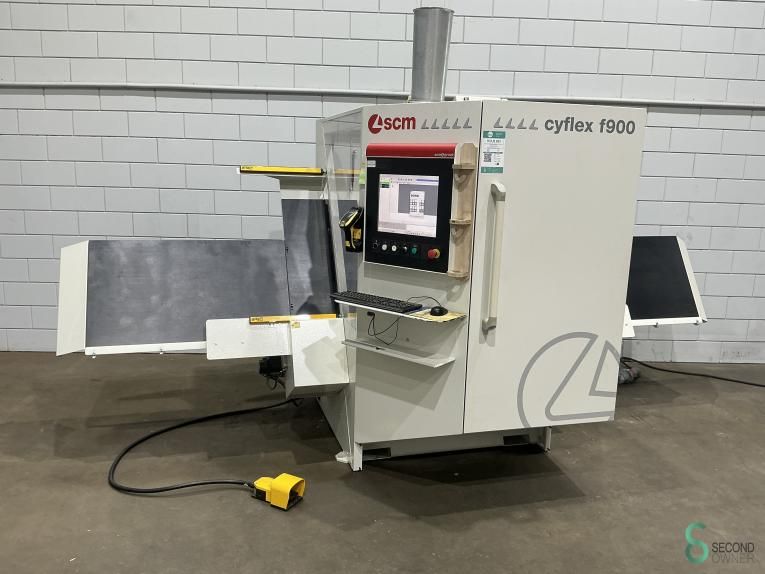

CNC Drilling Machines SCM Cyflex F900 2016

Description

- Year: 2016
- Documentation available: Yes
- CE marking present: Yes
- CE certificate present: No
- Serial number: AB/226310
- Operating hours: 5613
- Main motor power [kW]: 5.5
- Number of controlled axes [pcs]: 1
- Working range X [mm]: 3050
- Working range Y [mm]: 900
- Working range Z [mm]: 60
- Number of milling spindles [pcs]: 1
- Tool holder interface: ISO30
- Max. spindle speed [rpm]: 18000
- Horizontal drilling unit: Yes
- Horizontal drilling spindles [pcs]: 6
- Max. drilling depth [mm]: 35
- Vertical drilling unit: Yes
- Vertical drilling spindles [pcs]: 12
- Max. drilling depth [mm]: 60
- Manual operation: Yes

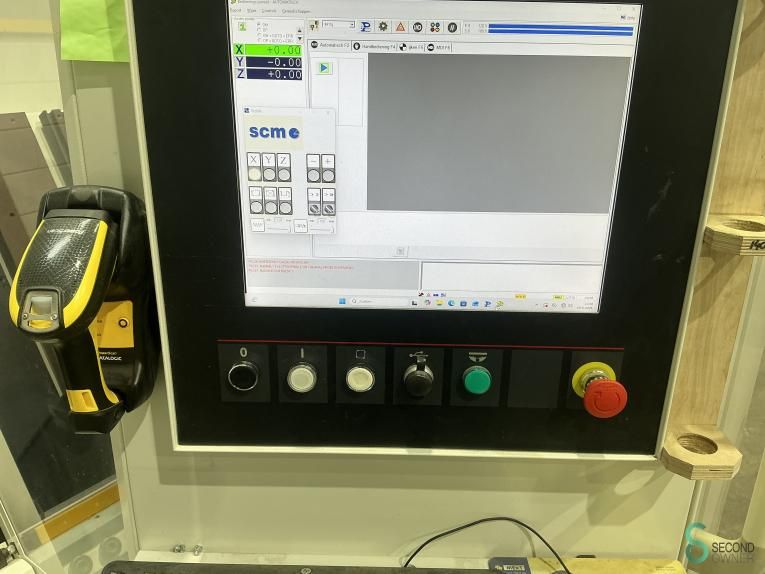

- Control: SCM Xilog
- Software: Xilog Plus
- Saw unit present: Yes
- Safety feature:
- Spindle speed control: Continuously adjustable
- Transport dimensions: 4300mm x 1880mm x 2350mm (l x w x h)
- Transport weight [kg]: 1310kg
- Transport packages [pcs.]: 1

Financial information
VAT: The price shown is exclusive of VAT
VAT/margin: VAT deductible for entrepreneurs

Delivery and trade-in always possible for everything in the industrial sectors
