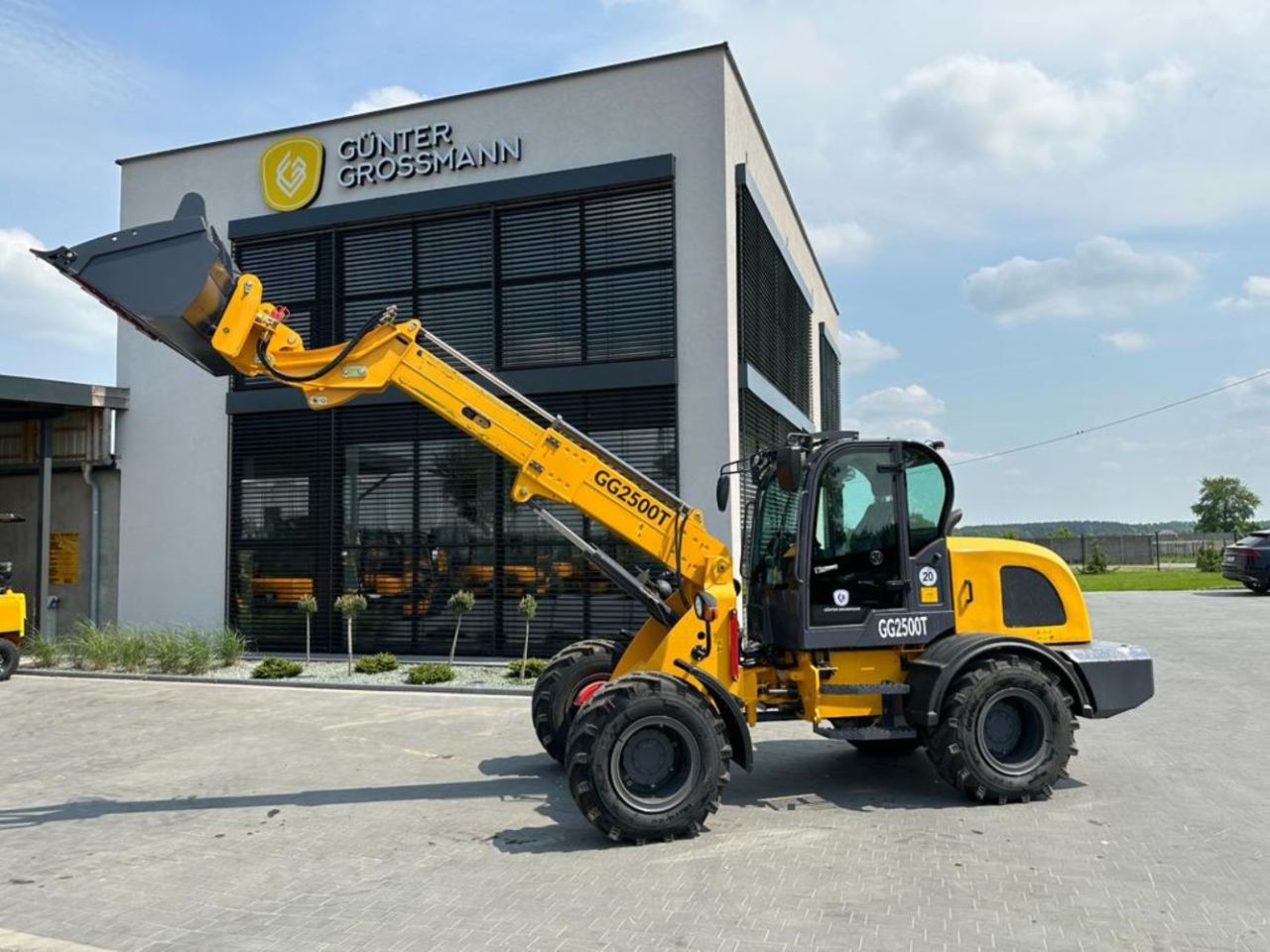

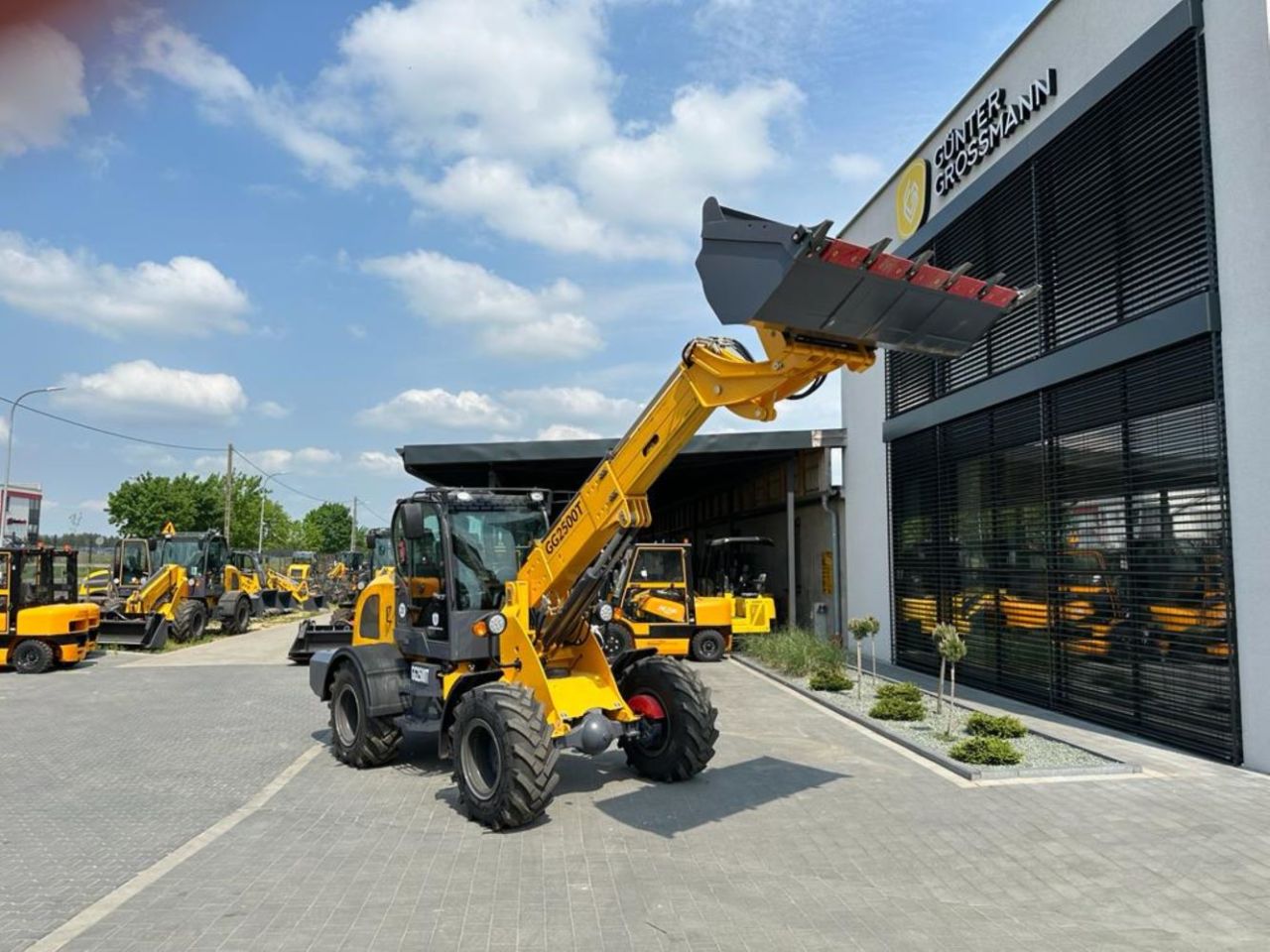

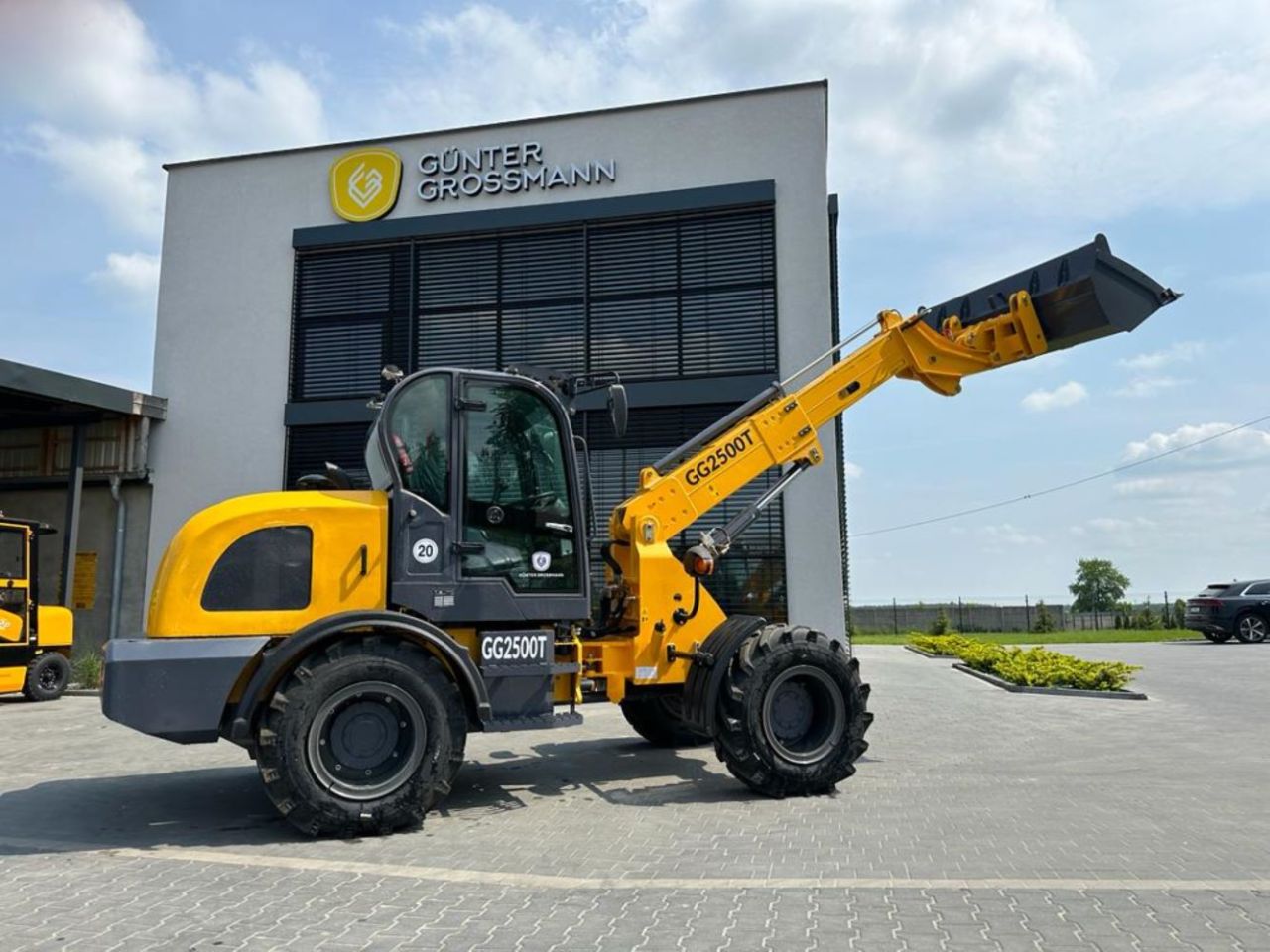

Telescopic Loader GG2500TEL
Basic information
Description
GG2500T
Machine weight 5500 kg
Engine Kunming Yunney Power Euro 5
Engine speed 2400 rpm
Lifting height 4500 mm
Rated load capacity 2500 kg
Engine power 75 HP
Max. travel speed 20 km/h
Wheelbase 1550 mm
Specification
Machine Weight: 5500 kg
Engine Kunming Yunney Power Euro 5
Engine Power: 75 HP
Lifting Height: 4500 mm
Rated Load: 2500 kg
Rated Speed: 2400 rpm
Hydraulic Pressure: 16 MPa
Hydraulic Oil Flow: 90 l/min
Standard Tire: 16/70-20
Work Range
Bucket Capacity (cbm): 1.0
Max Lifting Weight with Closed Boom: 2500 kg
Max Lifting Weight with Extended Boom: 800-1000 kg
Max Speed: 20 km/h
Wheelbase: 1550 mm
Track: 2550 mm
Discharge Clearance: 2850 mm
Bucket Capacity During Max Lifting 800 - 1000 kg
Main Dimensions
Length: 6270 mm
Width: 2100 mm
Height: 2670 mm
Telescopic Loader GG2500TEL
The Gunter Grossmann GG2500TEL is a modern telescopic loader combining a powerful engine with exceptional versatility. Powered by a Kunming Yunney Power Euro 5 engine delivering 75 HP, it meets strict emissions standards and is designed for demanding tasks across various working conditions.
Powerful Engine and Efficient Hydraulics
The 75 HP engine works alongside a hydraulic system operating at 16 MPa with an oil flow of 90 l/min, ensuring fast, precise, and energy-efficient task execution. The hydraulic setup provides smooth boom movement and excellent load control.
Load Capacity and Durability
Weighing 5500 kg with a rated load capacity of 2500 kg, the GG2500TEL offers stability and safety during heavy lifting. It features a maximum lifting height of 4.5 meters, allowing for effective material handling at significant heights.
Versatility in Work Range
Equipped with a 1.0 m³ bucket and a telescopic boom, it can handle loads ranging from 800 kg (with extended boom) to 2500 kg (with closed boom), providing a broad range of operational flexibility for diverse tasks.
Mobility and Compact Dimensions
With a top speed of 20 km/h, a wheelbase of 1550 mm, and a track width of 2550 mm, the machine delivers excellent stability and maneuverability. Its compact size — 6270 mm long, 2100 mm wide, and 2670 mm tall — facilitates easy transport and operation in confined spaces.
