GG 4000 rupsgraafmachine

Description

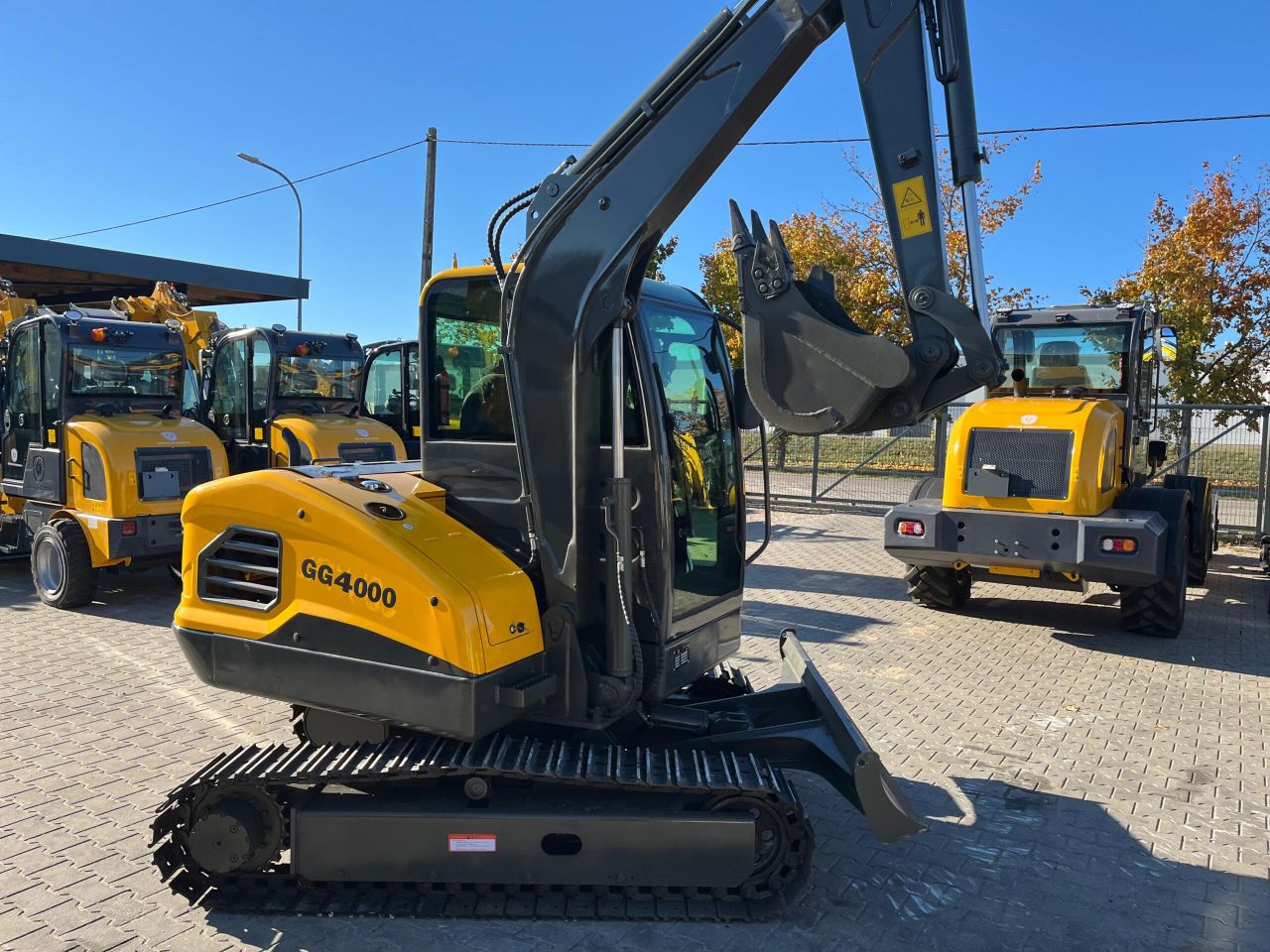

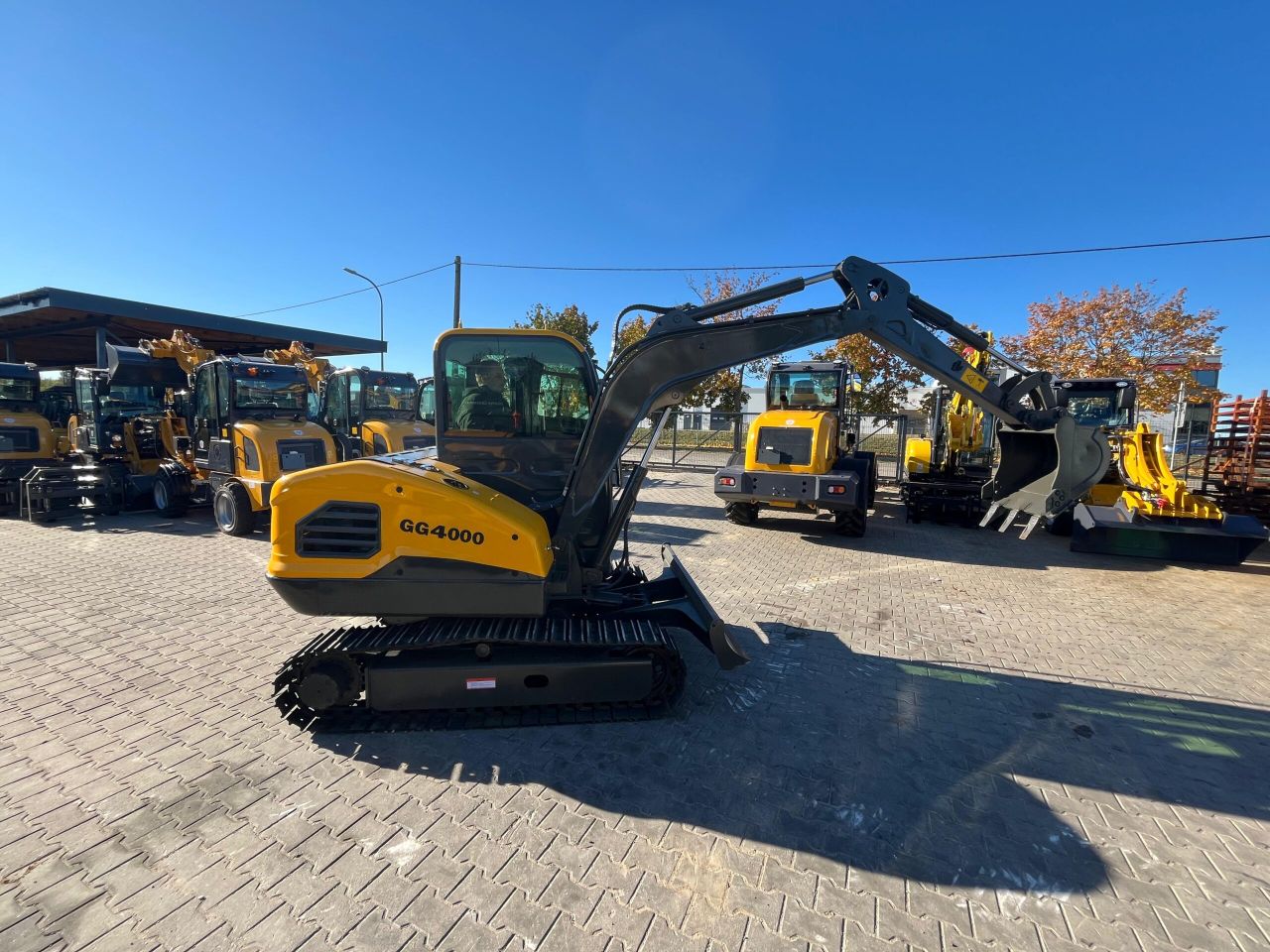

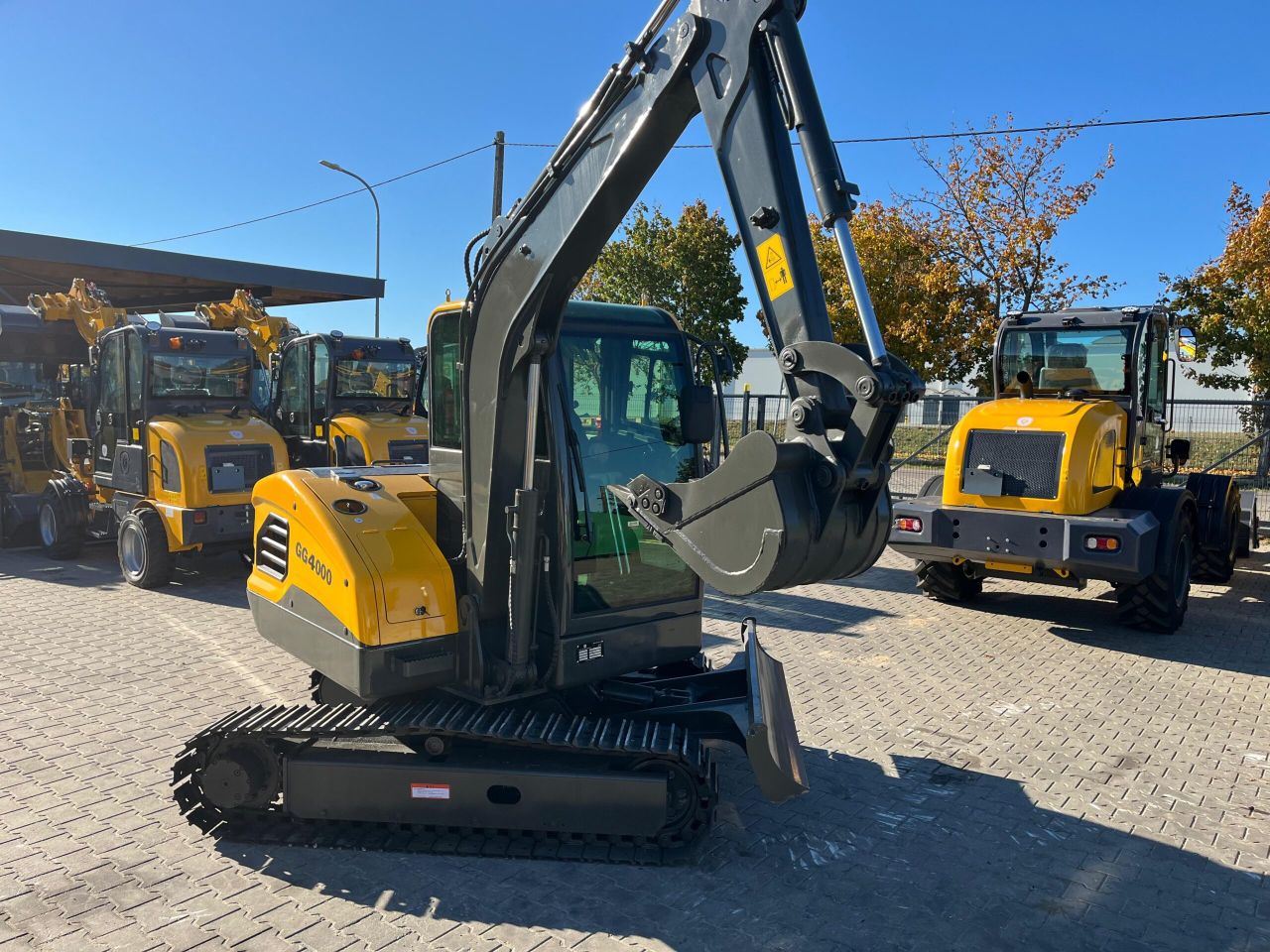

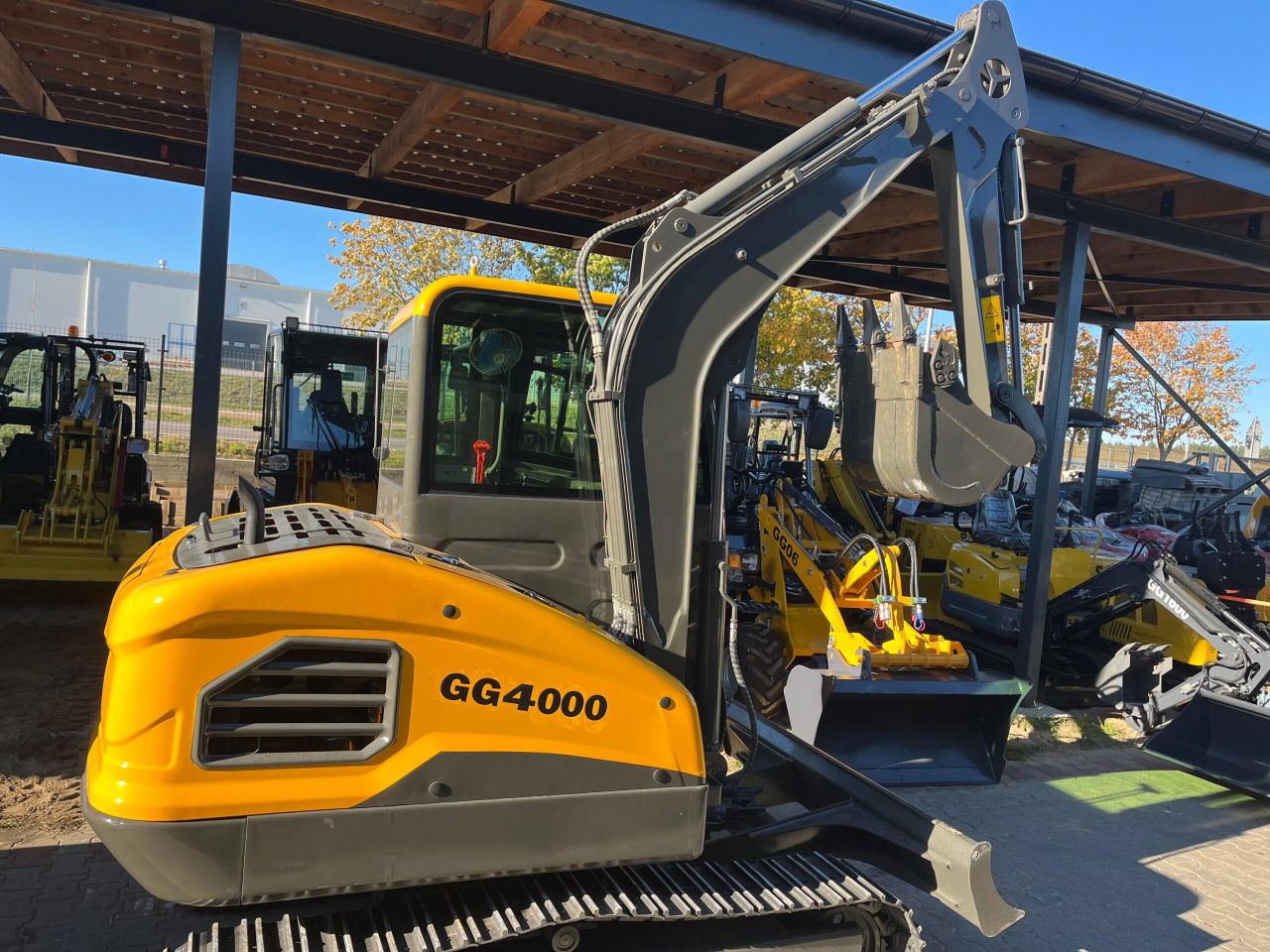

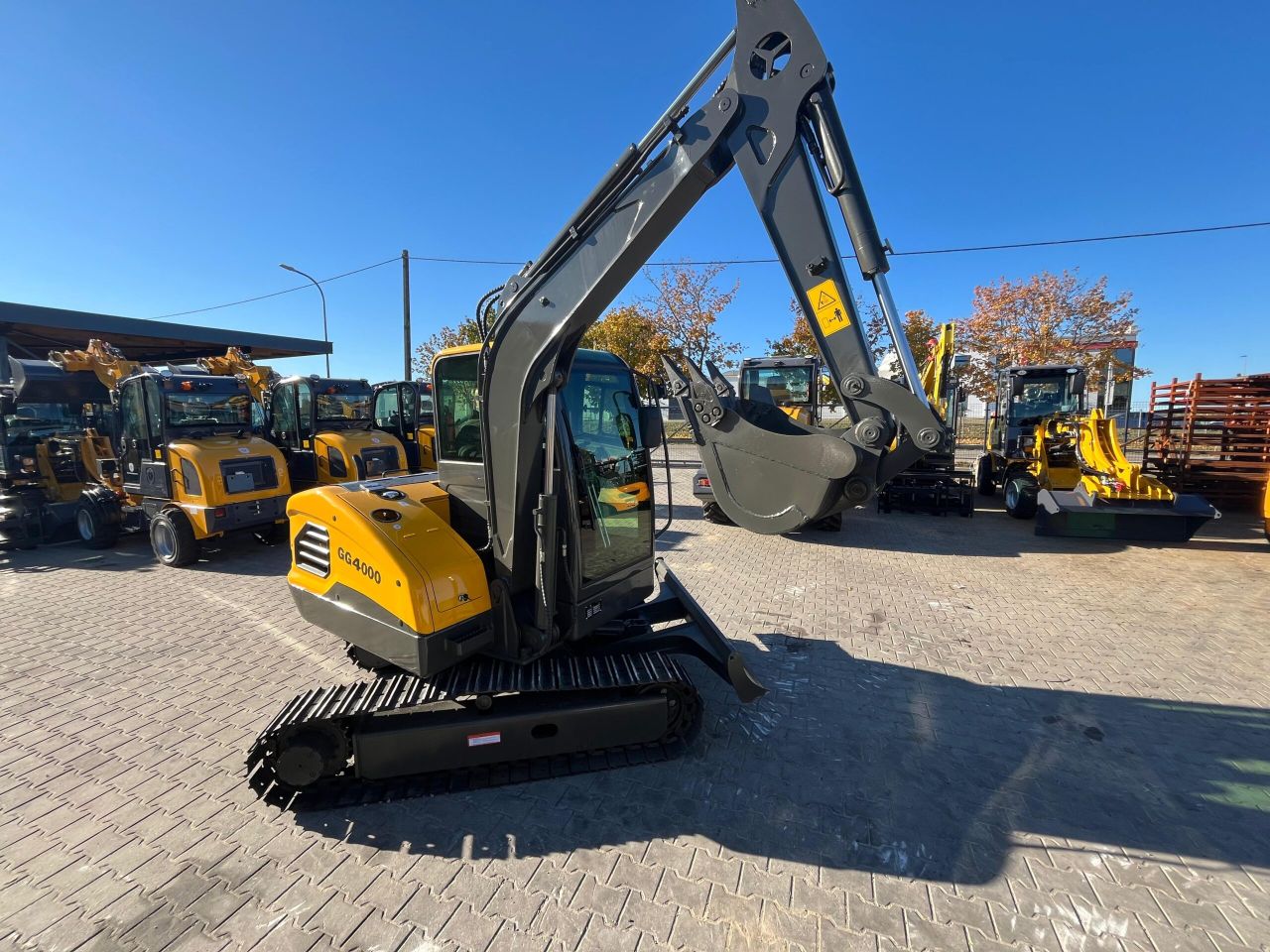

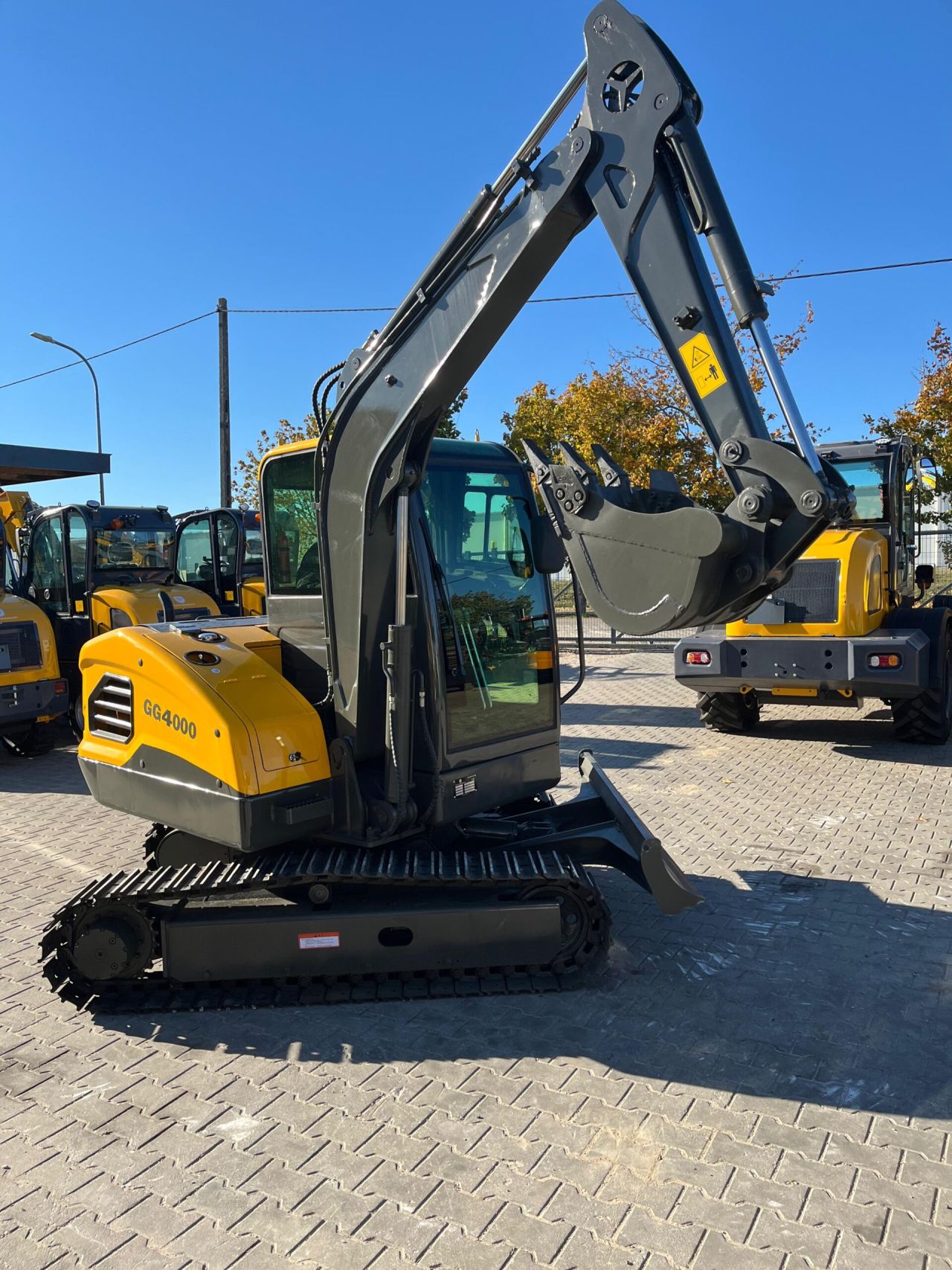

GG4000 Excavator

1. Machine weight – Our machine weighs 4000 kg, while our competitors are lighter. Check the machine's weight, as the paper carries everything. Without the correct weight, the machine is unstable.

2. Weight – Our competitors lack this weight, and it affects the work.

3. Joysticks – Our joysticks are precise; our competitors use inaccurate, lower-quality joysticks.

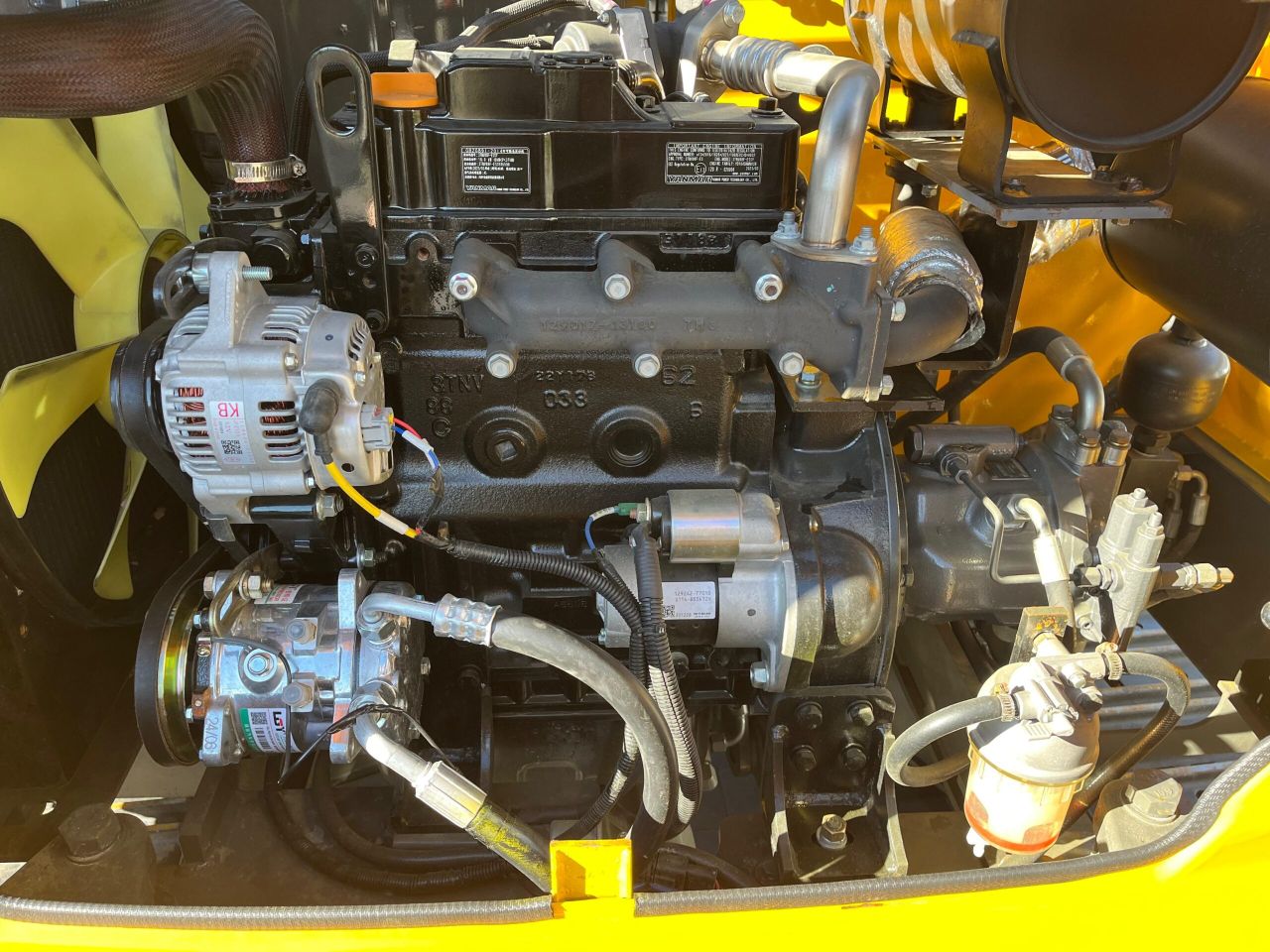

◜ One of the key advantages of the GG4000 excavator is its reliable power and versatility. Equipped with an 18.2 kW engine, available in Kubota, Yanmar, or Perkins versions, it guarantees excellent performance under various operating conditions.

◜ An innovative water cooling system and a working pressure of 22 MPa guarantee the engine's efficiency and durability. A 99 L/min hydraulic oil flow and an advanced TF piston pump make the machine extremely efficient, and the Load Sensing system adjusts power to current needs.

◜ With a maximum digging depth of 2545 mm and a maximum digging height of up to 4450 mm, the machine is ready to tackle a variety of construction challenges. With a bucket capacity of 0.16 m³ and the ability to work at a tilt angle of up to 35°, the GG4000 ensures precise and efficient digging.

Price
Reduced from €26,450 to €24,450
(excl. VAT) (Includes: GG4000 Excavator + 450 mm bucket)

SPECIFICATIONS
Model: GG1700
Make: Günter Grossmann
Engine model: Yanmar 3TNV88F
Machine weight: 4000 kg
Maximum power: 18.2 kW
Cooling method: Water cooling
Pressure: 22 mPa
Hydraulic oil flow: 99 L/min
Pump: TF piston
LKC travel motor: Two-speed pump
Chip module: Load sensing system
DIMENSIONS

Main dimensions
Transport length: 4400 mm
Transport height: 2280 mm
Chassis width: 1530 / 1600 mm
Track width: 2175 mm
Track width: 1703 mm
Minimum ground clearance: 557 mm
Boom length: 2400 mm
Arm length: 1250 mm
Operating range
Bucket capacity: 0.16 m³
Travel angle: 35°
Maximum digging force: 5560 N
Travel speed: 2.2 - 4.3 km/h
Unit swing speed: 8-10 rpm
Hydraulic tank capacity: 22 L
Maximum digging height: 4450 mm
Maximum drop height: 3050 mm
Maximum digging depth: 2545 mm
Maximum rotation radius: 1820 mm
Maximum digging depth of the dozer blade: 268 mm
Minimum turning radius: 1170 m
