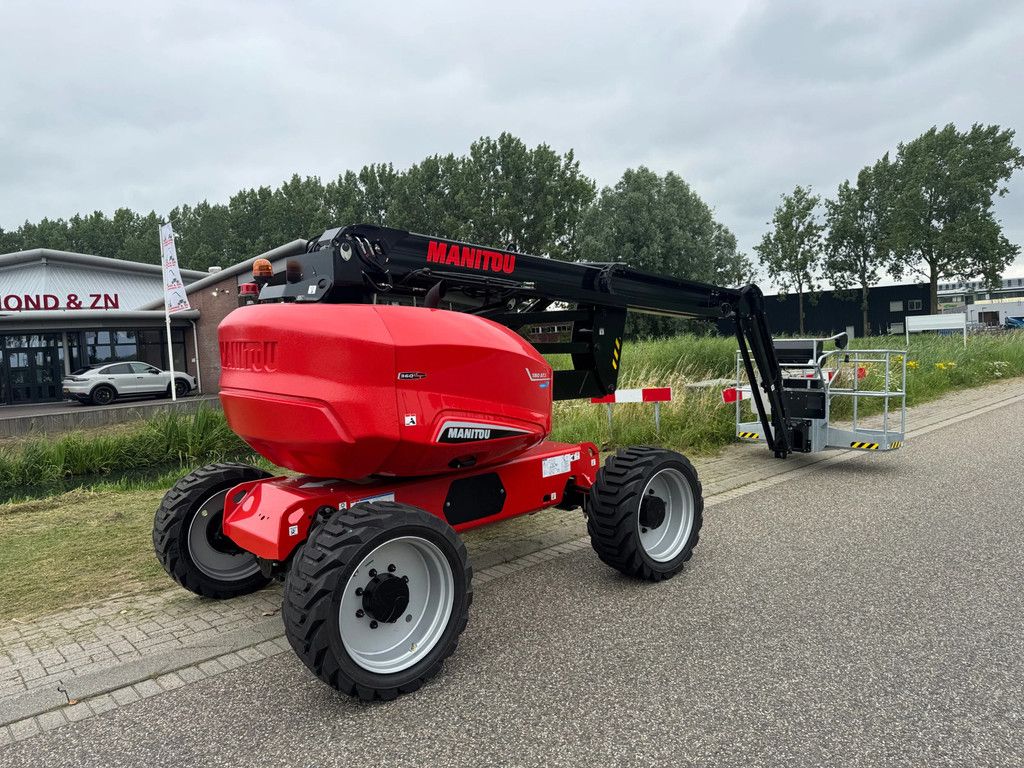

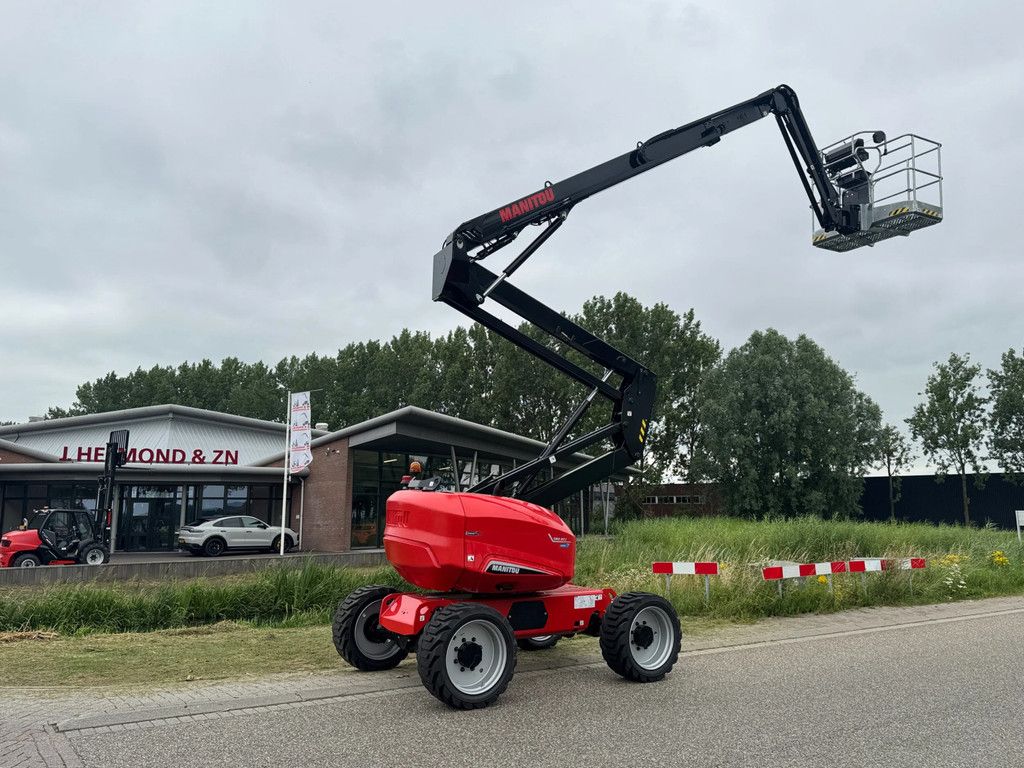

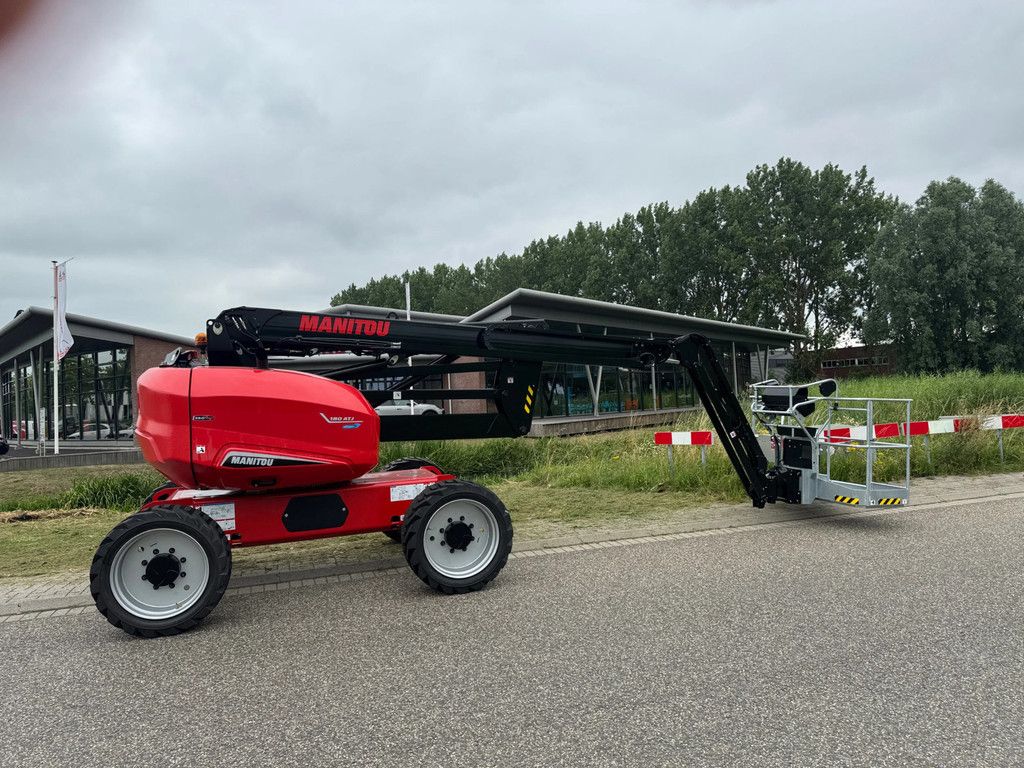

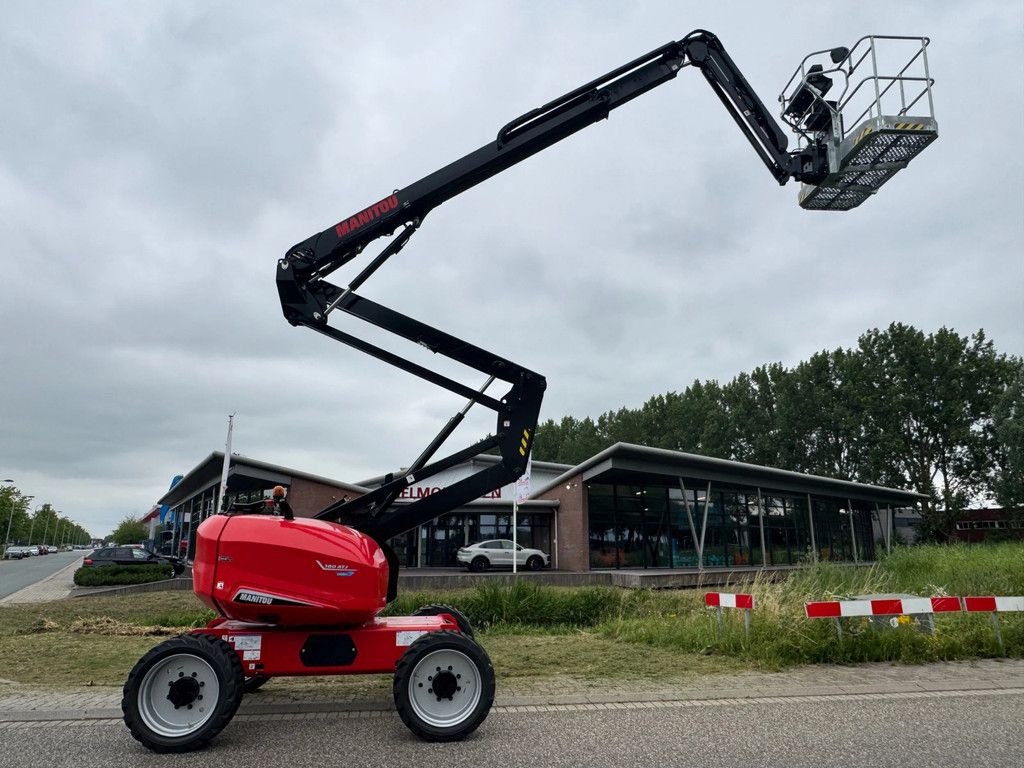

Manitou 180 ATJ CR 4WS K19 ST5 S1

Description

Working height: 18.18 m
Platform height: 16.18 m
Max. Reach: 10.51 m
Overhang: 7.42 m
Swinging motion (up / down) +65 ° / -59.50 °
Platform capacity: 230 kg
Upper carriage rotation: 360 °
Work cage rotation (right / left) 90 ° / 90 °
Number of persons (inside / outside) 2 / 2
Weight and dimensions
Own weight 7700 kg

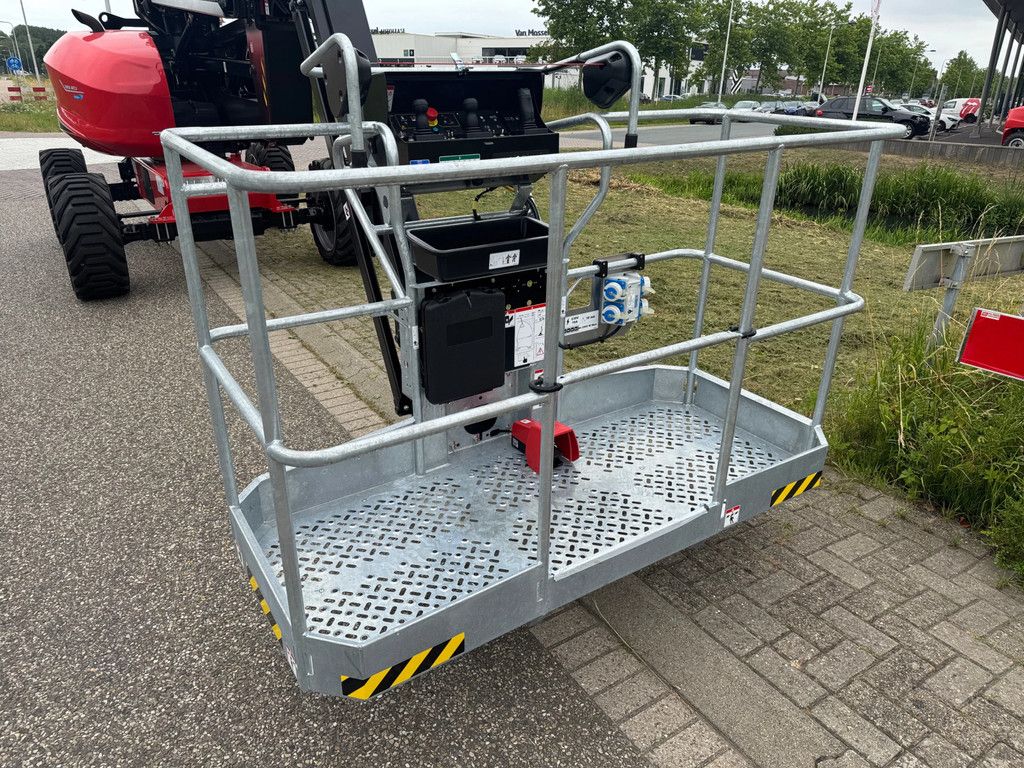

Platform dimensions (length x width) lp / ep: 1.80 m x 0.80 m
Floor height: 0.43 m
Total length: 7.79 m
Total width: 2.32 m
Total height: 2.47 m
Total transport length: 5.56 m
Total transport height: 2.56 m
Counterweight adjustment (upper carriage at 90°): 0.22 m
Outer turning circle: 3.63 m
Ground clearance in the center of the wheelbase: 0.40 m
Wheelbase: 2.20 m
