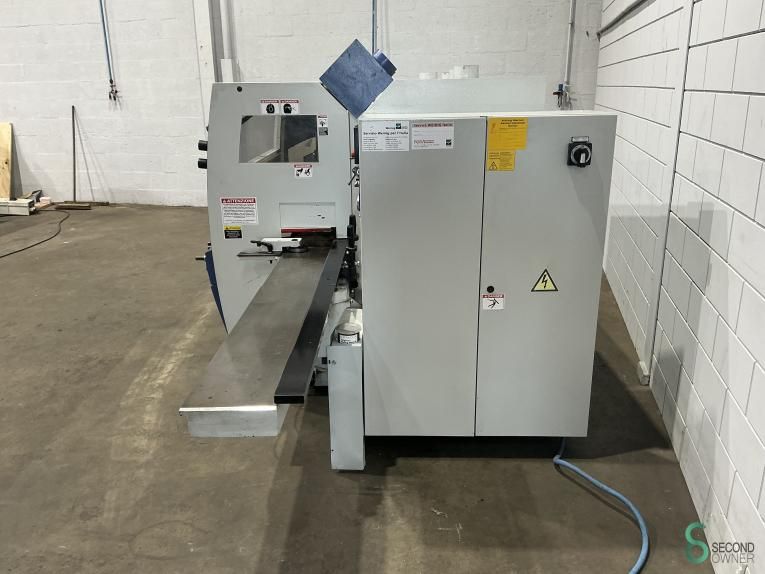

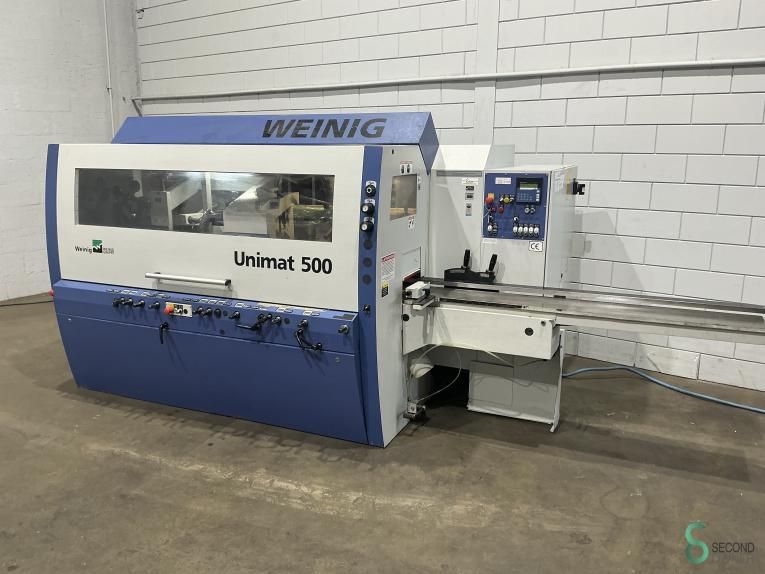

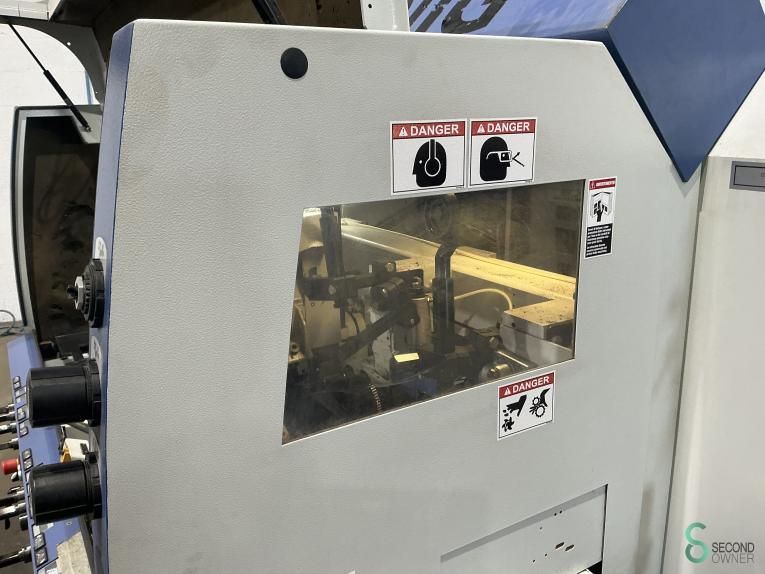

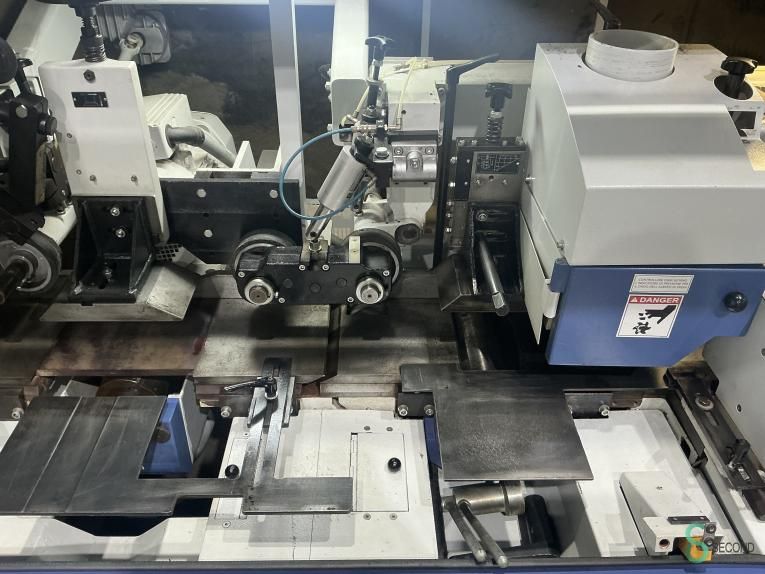

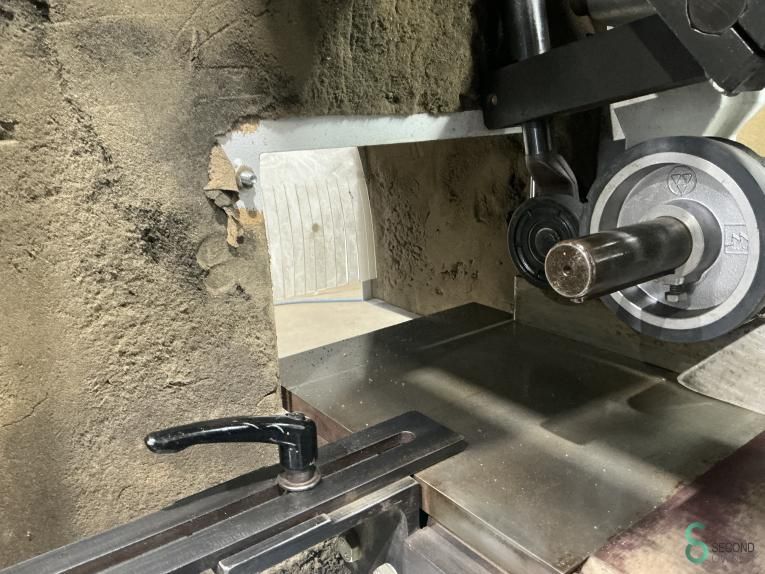

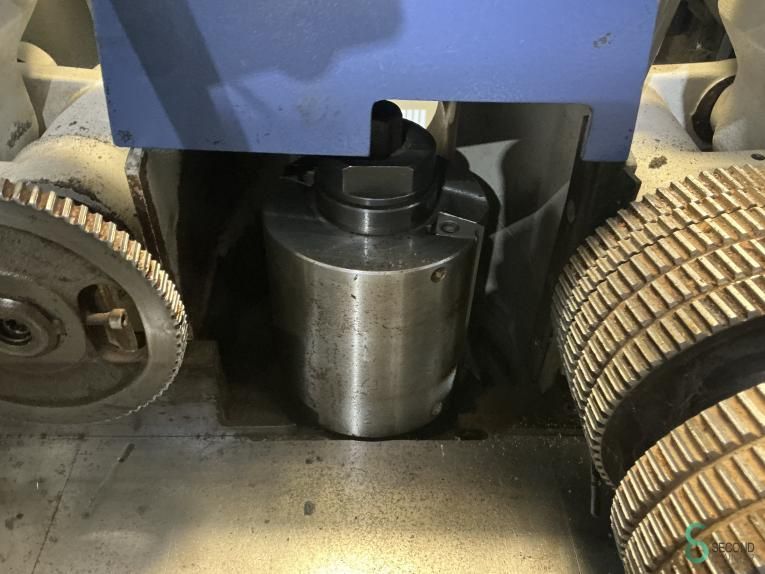

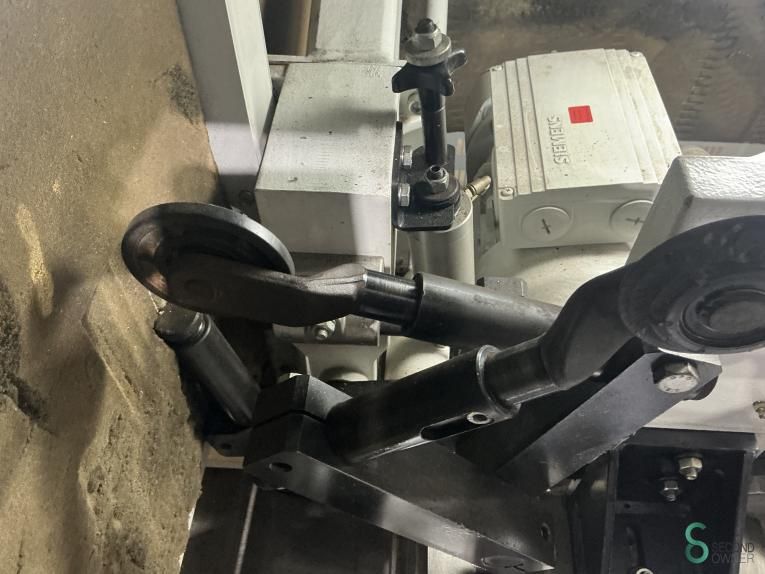

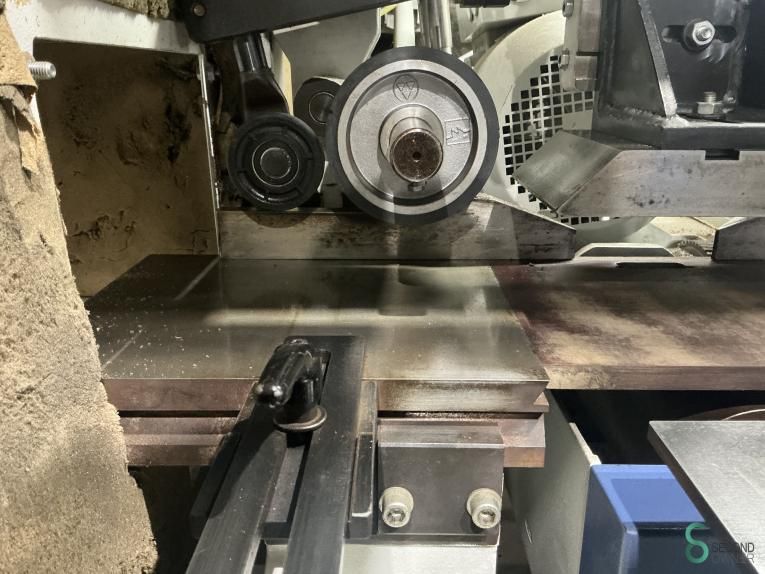

Four sided planers Weinig Unimat 500 2006

Description

- Year: 2006
- Documentation available: No
- CE marking present: Yes
- CE certificate present: No

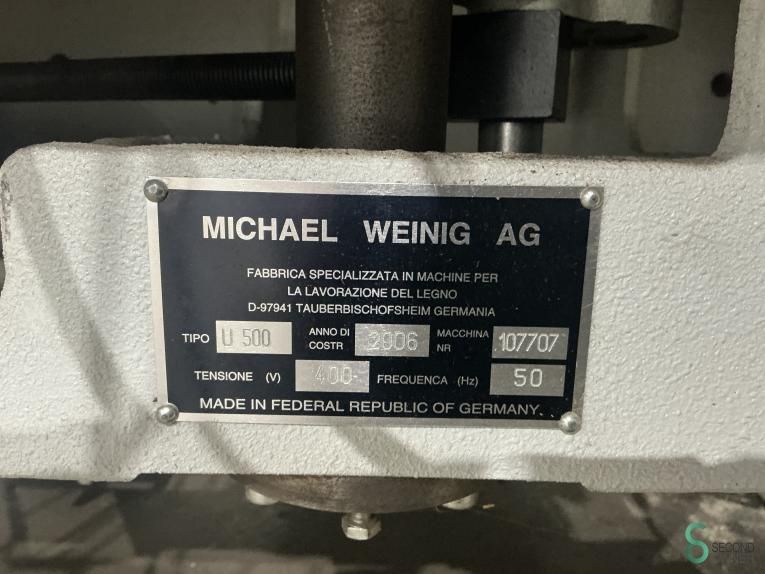

- Serial number: 107707

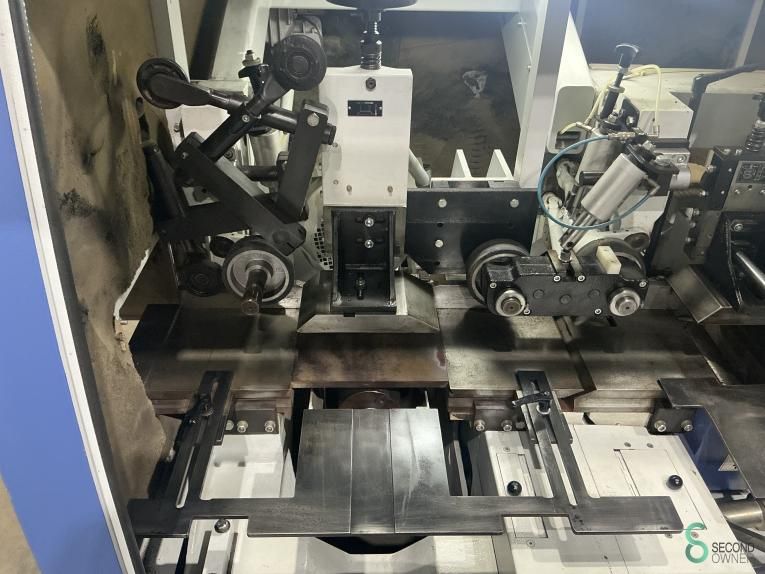

- Number of spindles [pcs.]: 6

- └ Spindle 1:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 5.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 2:

- - Spindle type: Right
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 3:

- - Spindle type: Left
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 4:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 5.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 5:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 5.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 6:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- Max. planing width [mm]: 230
- Max. planing height [mm]: 120
- Feed table length [mm]: 1800

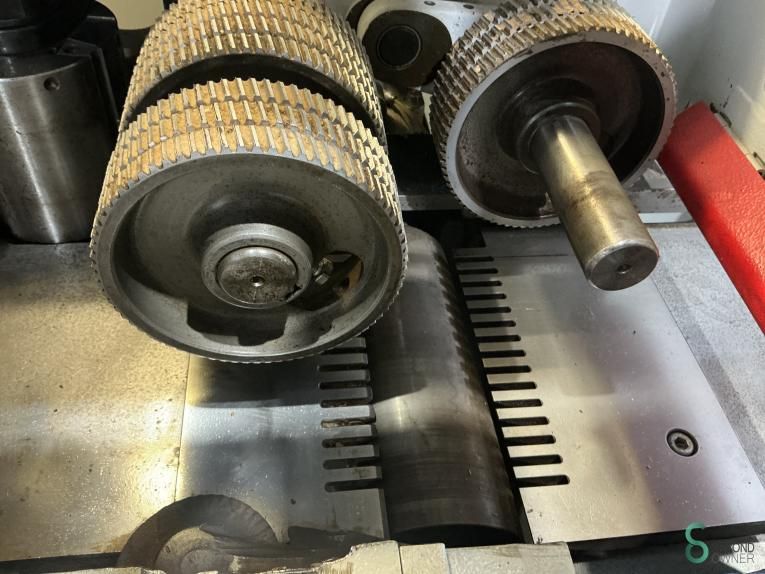

- Feed roller diameter [mm]: 140
- Feed motor [kW]: 4

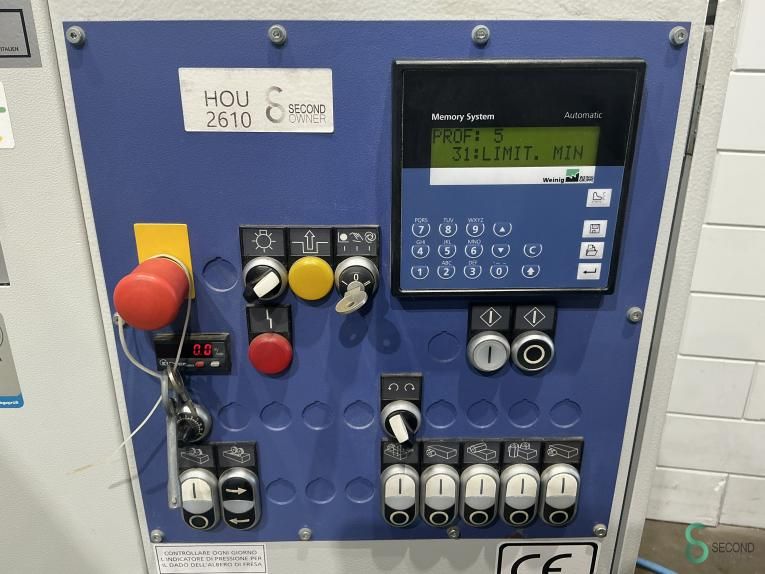

- System/software: Memory System
- Conveyor drive: Cardan drive
- Lubrication system: Manual
- Diameter extraction nozzle [mm]: 130
- Options: Automatic feeding system
- Feed speed: Automatic

- └ Min. feed speed [m/min]: 4
- └ Max. feed speed [m/min]: 30
- └ Feed speed control: Continuously adjustable

- Voltage [V]: 400
- Current consumption [A]: 78
- Fuse [A]: 80
- Power [kW]: 36.0
- Transport dimensions: 1900mm x 4210mm x 1830mm (l x w x h)
- Transport weight [kg]: 3500kg
- Transport packages [pcs.]: 1
