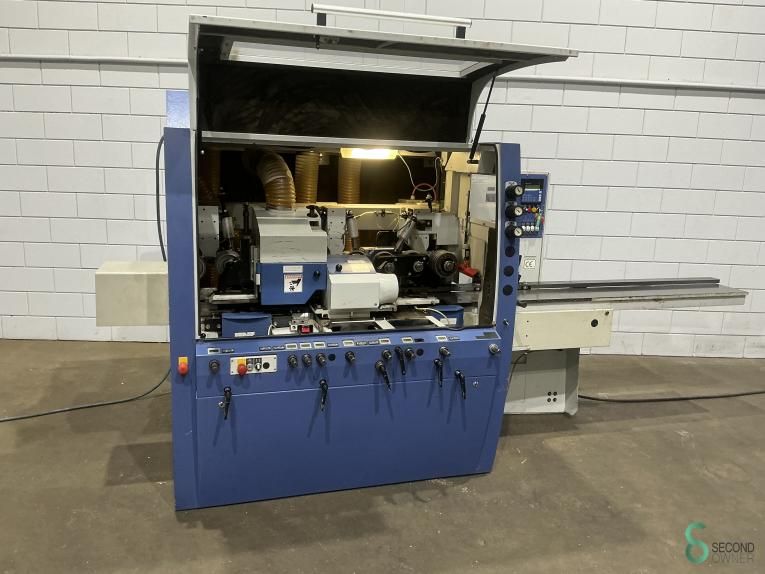

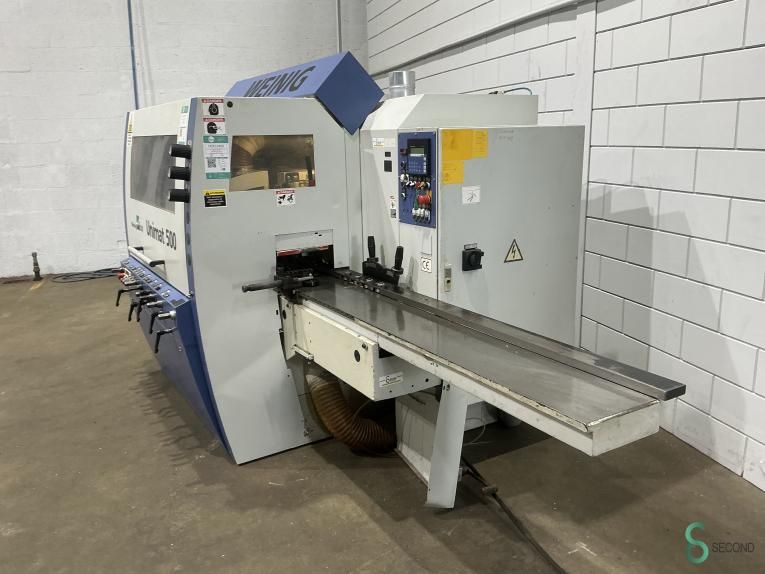

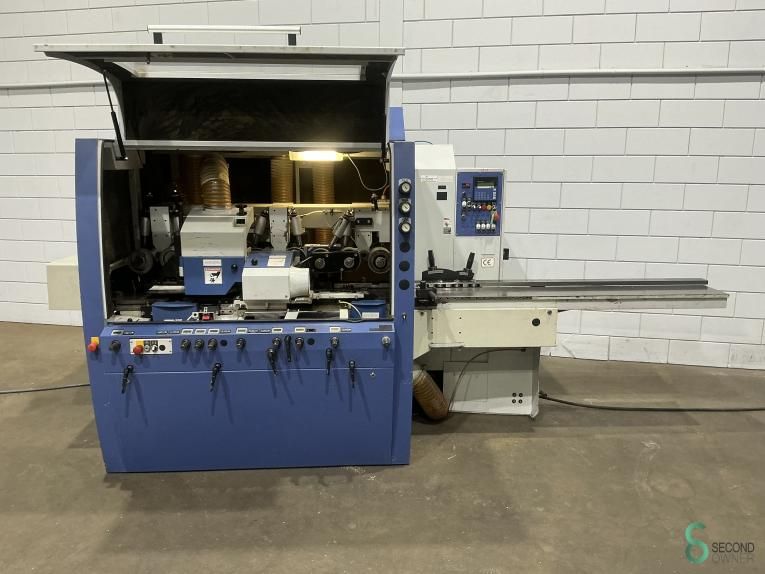

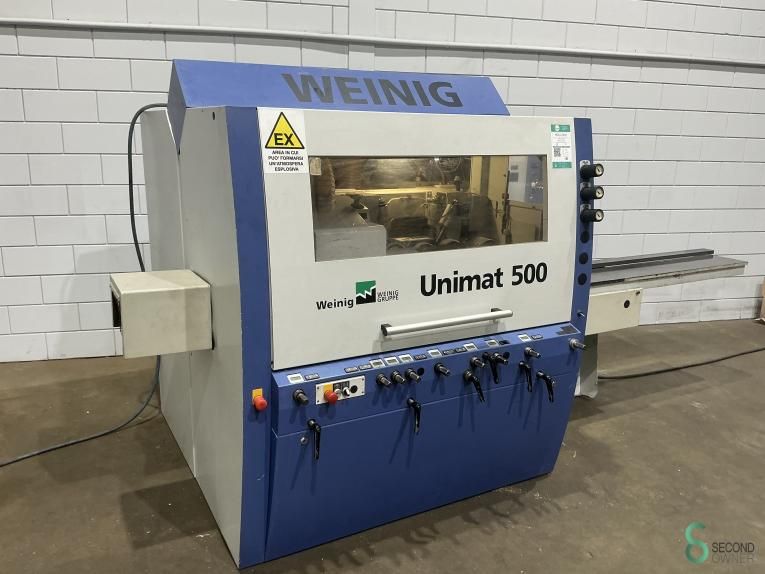

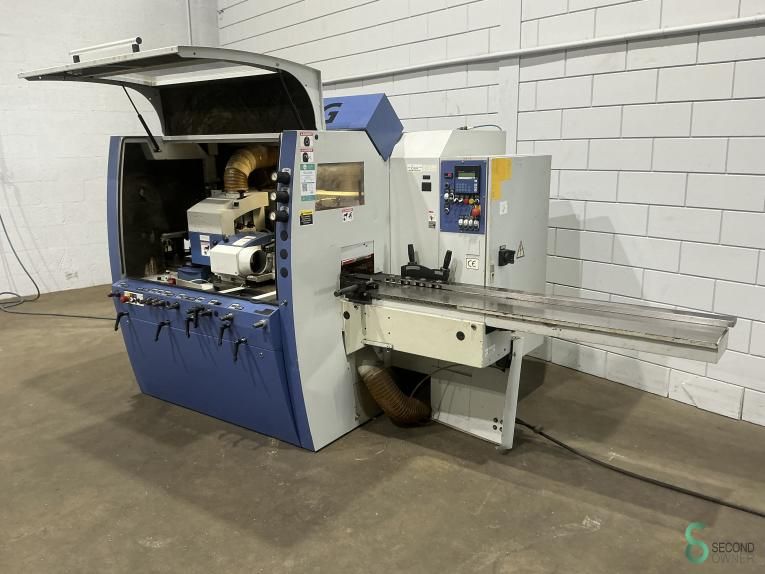

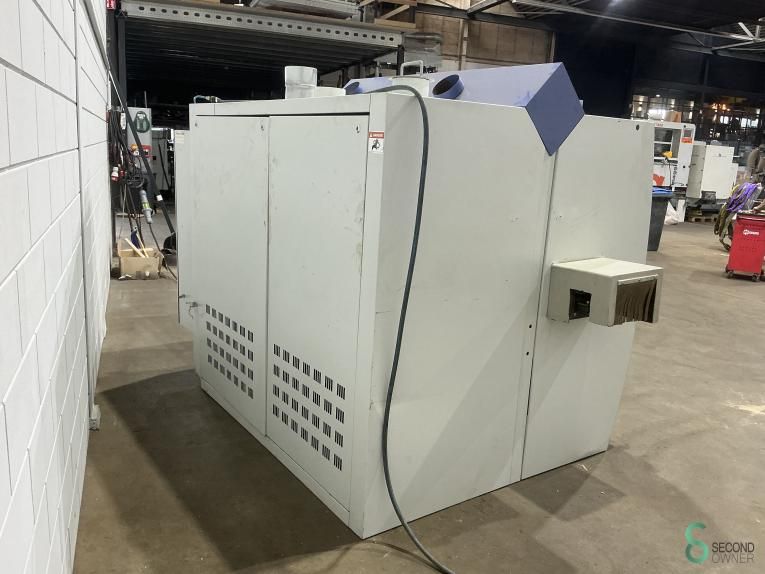

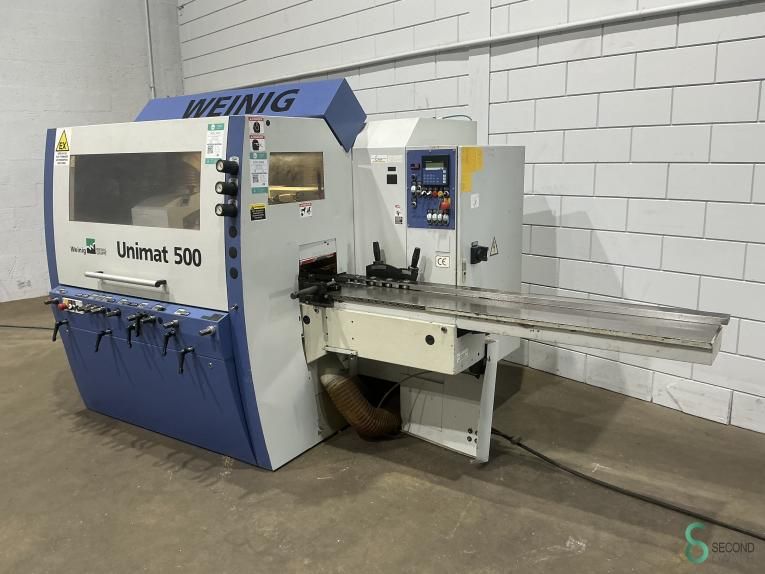

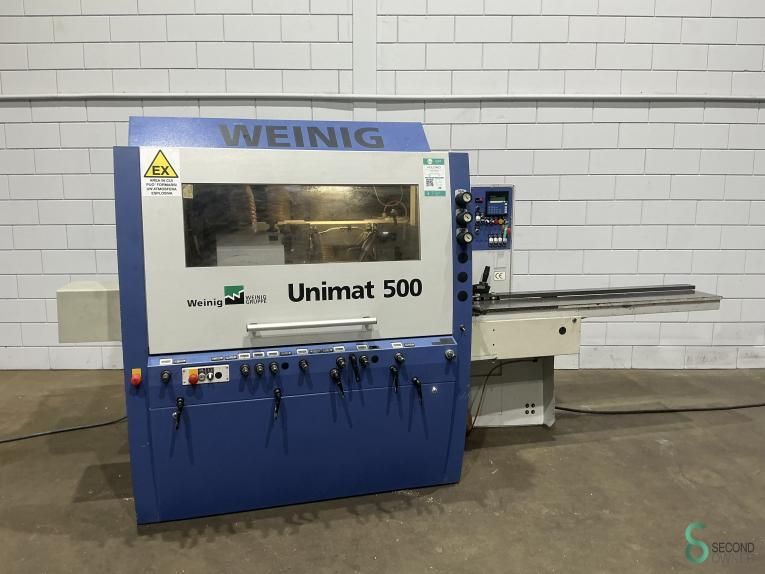

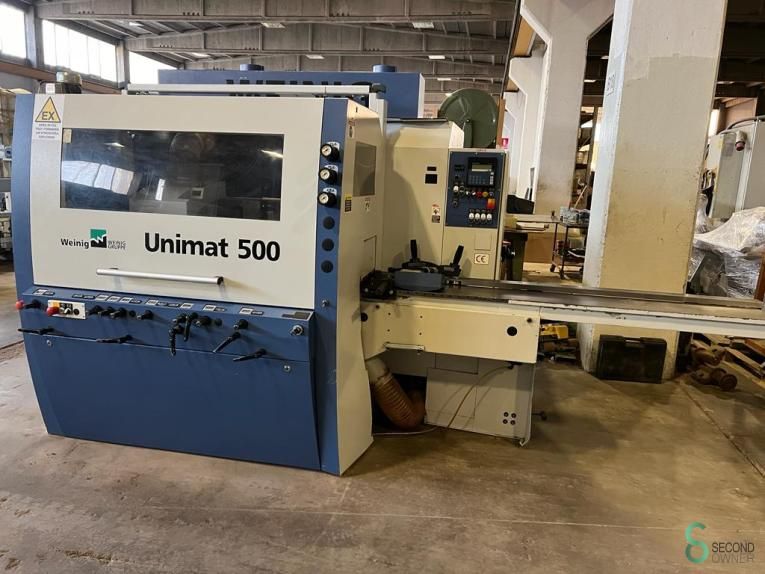

Four sided planers Weinig Unimat 500 2006

Description

- Year: 2006
- Documentation available: No
- CE marking present: Yes
- CE certificate present: No
- Serial number: 106992

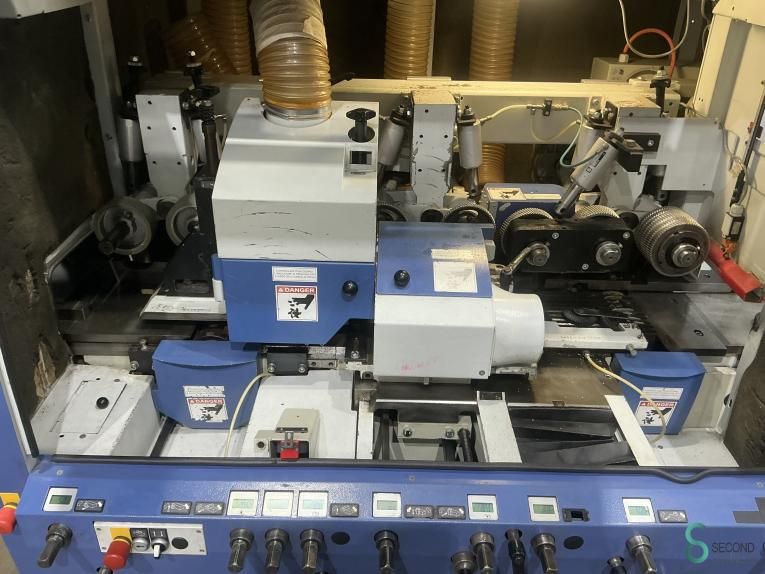

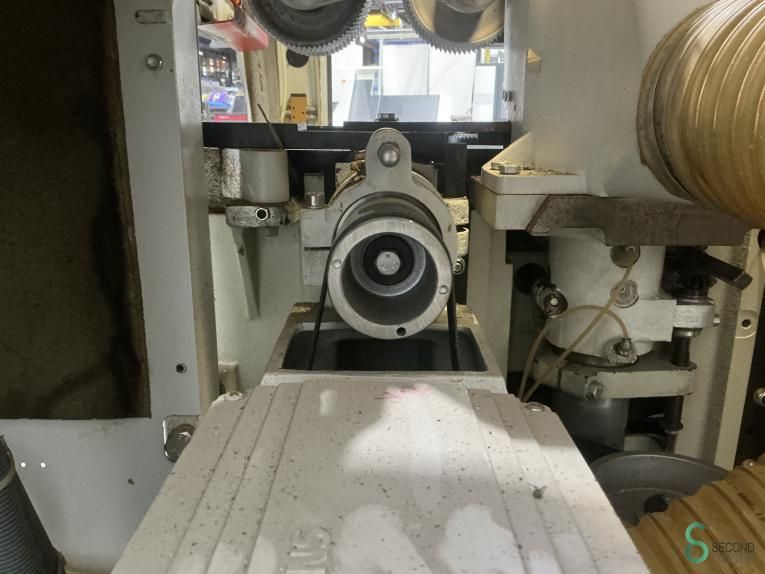

- Number of spindles [pcs.]: 5

- └ Spindle 1:

- - Spindle type: Bottom
- - Motor power [kW]: 5.5
- - Spindle diameter [mm]: 30
- - Max. planing block diameter [mm]: 130
- - Tool present: Yes

- └ Spindle 2:

- - Spindle type: Right
- - Motor power [kW]: 7.5
- - Tool present: Yes

- └ Spindle 3:

- - Spindle type: Left
- - Motor power [kW]: 7.5
- - Tool present: Yes

- └ Spindle 4:

- - Spindle type: Top
- - Motor power [kW]: 7.5
- - Tool present: Yes

- └ Spindle 5:

- - Spindle type: Bottom
- - Motor power [kW]: 5.5
- - Tool present: Yes

- Max. planing width [mm]: 240
- Max. planing height [mm]: 130
- Feed table length [mm]: 1780
- Feed roller diameter [mm]: 130
- Feed motor [kW]: 3

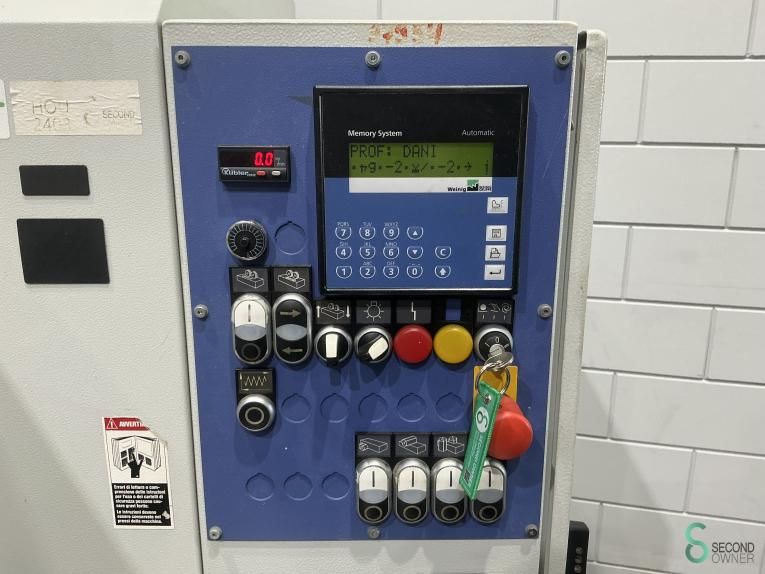

- System/software: memory systeem
- Conveyor drive: Cardan drive
- Lubrication system: Manual
- Diameter extraction nozzle [mm]: 140
- Feed speed: Manual

- └ Max. feed speed [m/min]: 4
- └ Feed speed control: Continuously adjustable

- Voltage [V]: 400
- Current consumption [A]: 88
- Fuse [A]: 100
- Power [kW]: 41.0
- Transport dimensions: 1800mm x 3580mm x 1840mm (l x w x h)
- Transport weight [kg]: 3500kg
- Transport packages [pcs.]: 1
