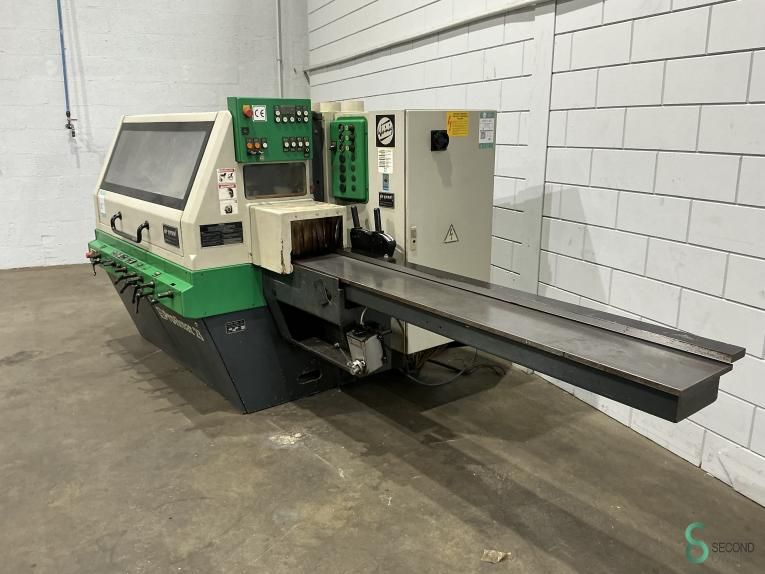

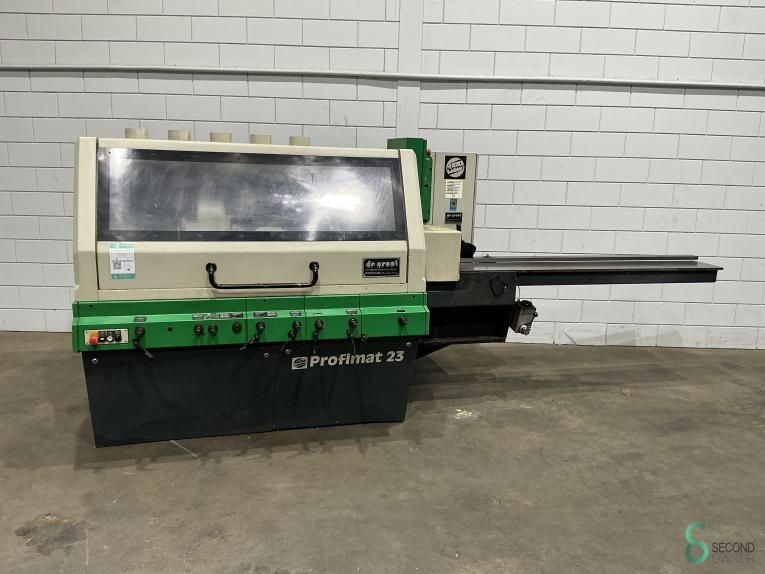

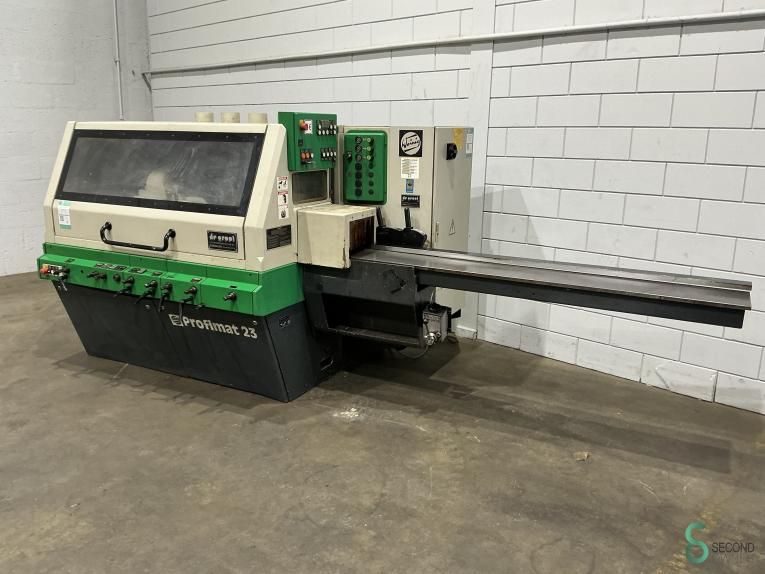

Four sided planers Weinig Profimat 23 1996

Description

- Year: 1996
- Documentation available: Yes
- Serial number: 123-2001
- Number of spindles [pcs.]: 5

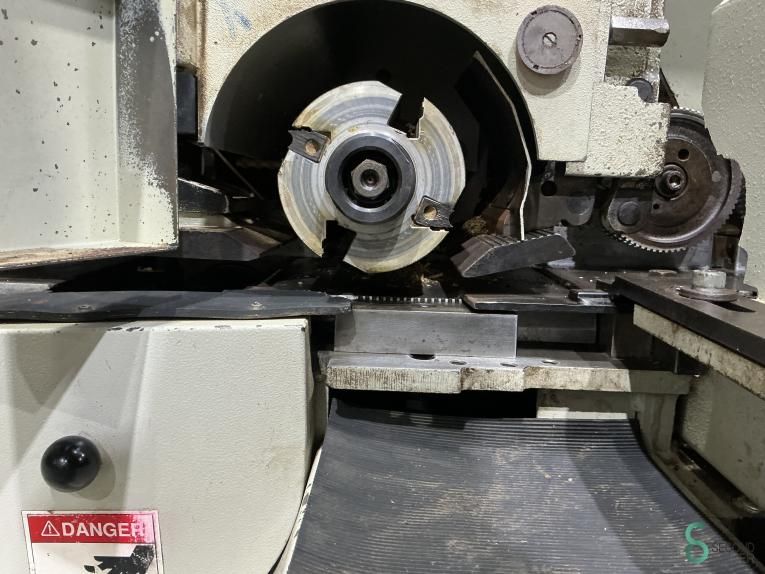

- └ Spindle 1:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 5.5
- - Spindle diameter [mm]: 120
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 150
- - Tool present: Yes

- └ Spindle 2:

- - Spindle type: Vertical spindle
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 140
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 160
- - Tool present: Yes

- └ Spindle 3:

- - Spindle type: Vertical spindle
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 120
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 160
- - Tool present: Yes

- └ Spindle 4:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 120
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 160
- - Tool present: Yes

- └ Spindle 5:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 140
- - Cutterhead speed [rpm]: 6000
- - Max. planing block diameter [mm]: 160
- - Tool present: Yes

- Max. planing width [mm]: 260
- Max. planing height [mm]: 120
- Feed table length [mm]: 2470

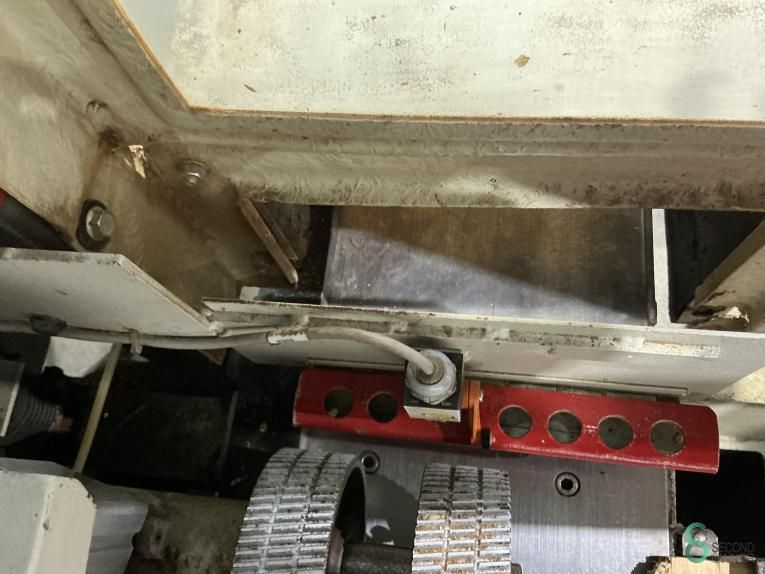

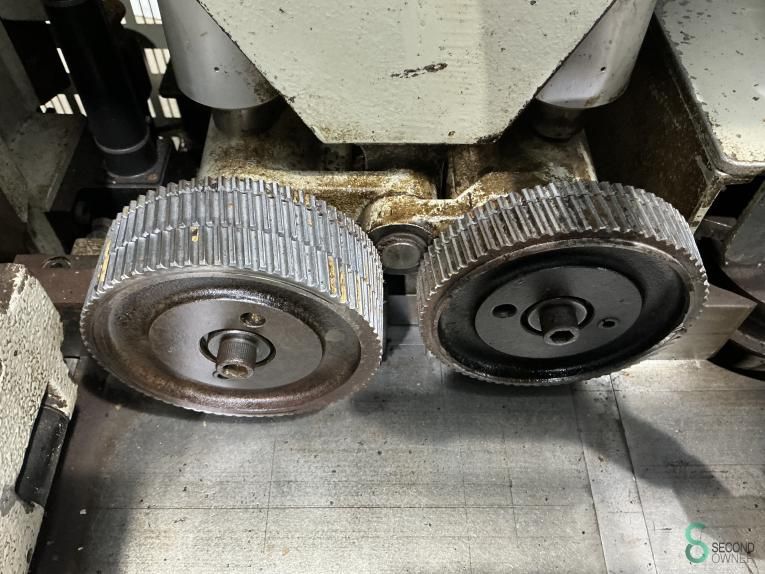

- Feed roller diameter [mm]: 140
- Feed motor [kW]: 2.2
- Tool type: Standard
- Conveyor drive: Cardan drive
- Lubrication system: Manual
- Diameter extraction nozzle [mm]: 140

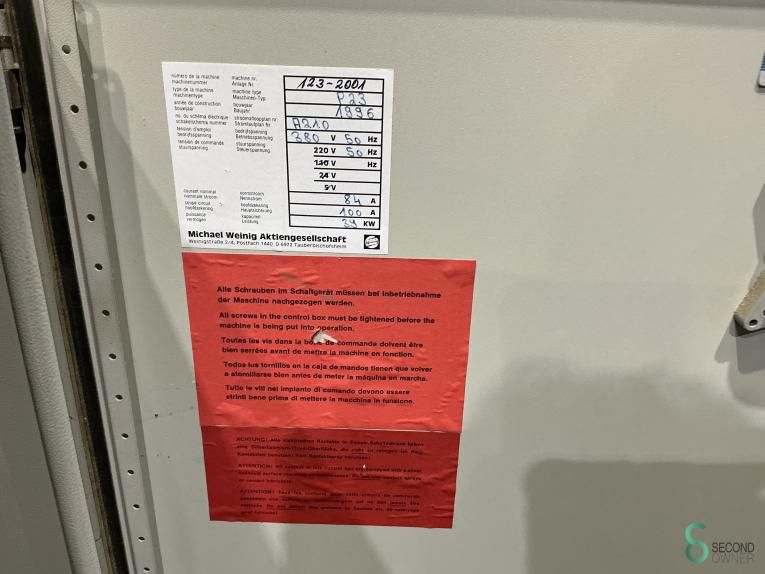

- Voltage [V]: 380
- Current consumption [A]: 84
- Fuse [A]: 100
- Power [kW]: 39.0
- Transport dimensions: 4000mm x 1700mm x 1650mm (l x w x h)
- Transport weight [kg]: 2500kg
- Transport packages [pcs.]: 1
