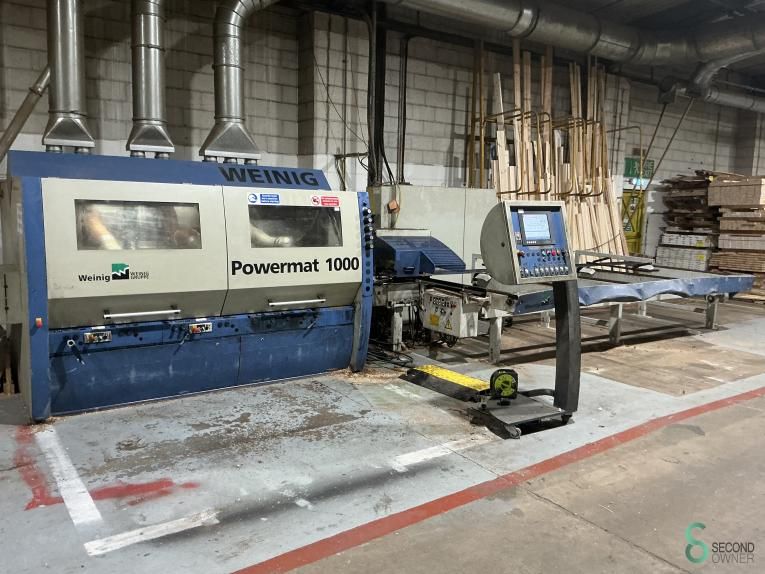

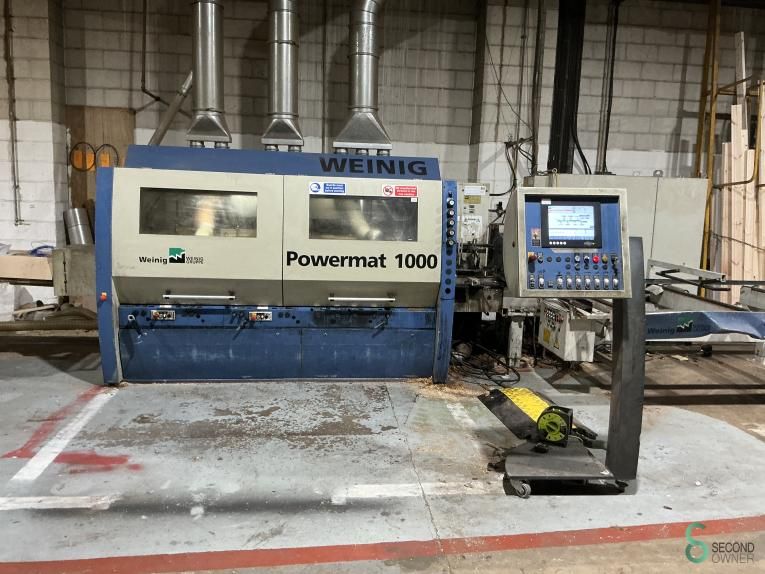

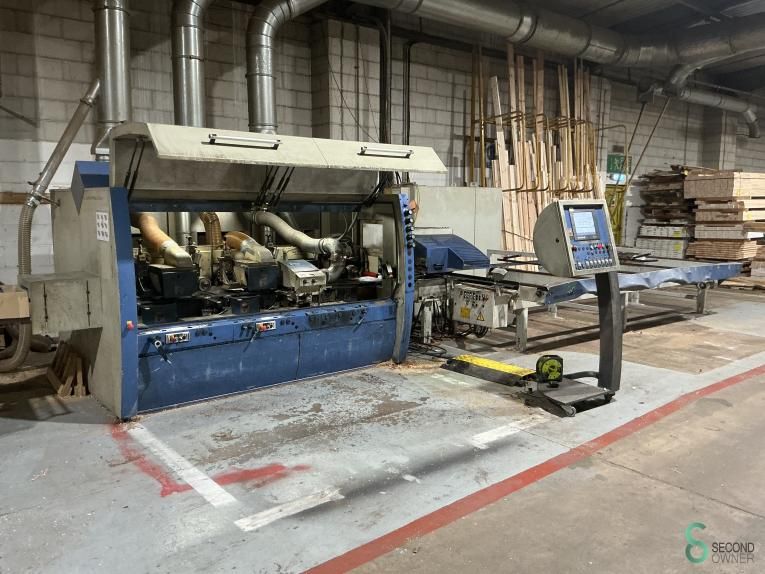

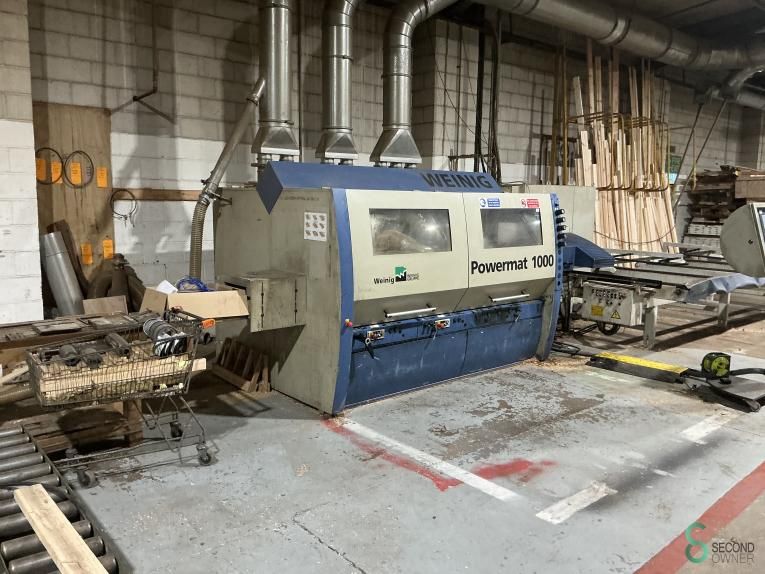

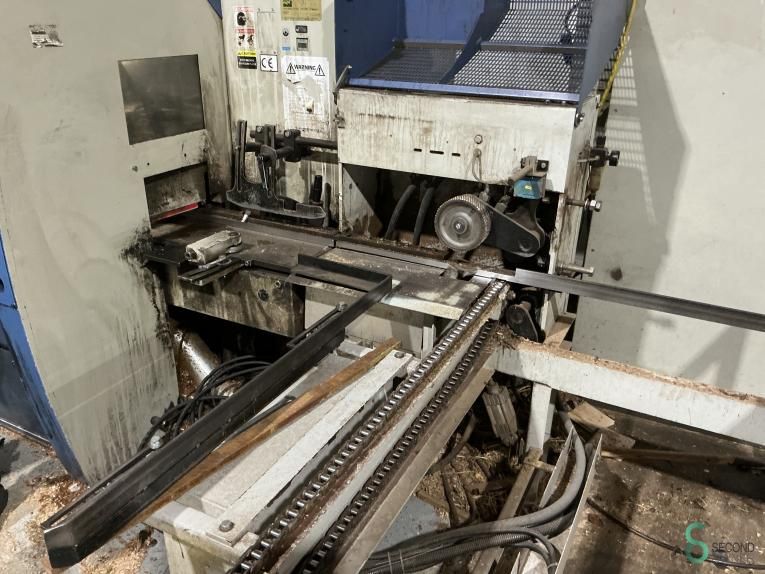

Four sided planers Weinig Powermat 1000 2006

Description

- Details:

- └ Description: Currently not working, problem with 7th-spindle sensor

- Year: 2006
- Documentation available: No
- CE certificate present: No
- Serial number: 105364

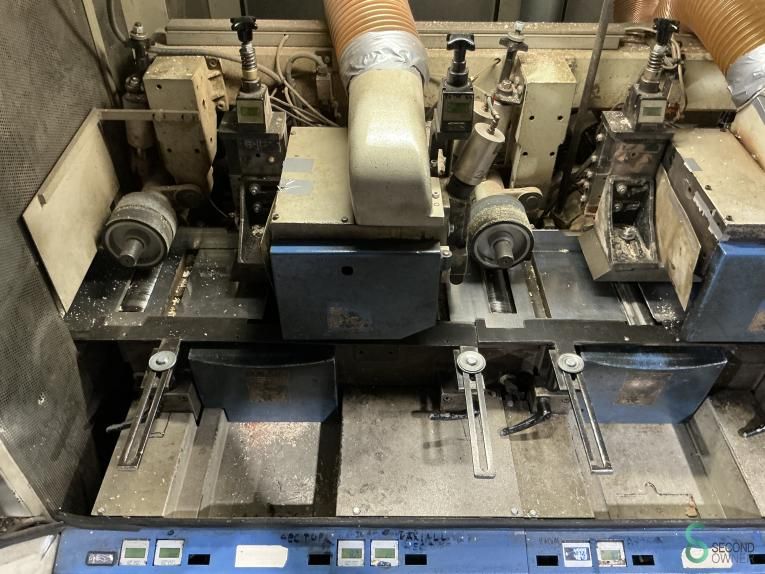

- Number of spindles [pcs.]: 7

- └ Spindle 1:

- - Spindle type: Bottom
- - Motor power [kW]: 11
- - Tool present: Yes

- └ Spindle 2:

- - Spindle type: Right
- - Motor power [kW]: 11

- └ Spindle 3:

- - Spindle type: Left
- - Motor power [kW]: 11

- └ Spindle 4:

- - Spindle type: Top
- - Motor power [kW]: 18.5
- - Tool present: Yes

- └ Spindle 5:

- - Spindle type: Bottom
- - Motor power [kW]: 11
- - Tool present: Yes

- └ Spindle 6:

- - Spindle type: Top
- - Motor power [kW]: 18.5
- - Tool present: Yes

- └ Spindle 7:

- - Spindle type: Bottom

- Min. planing width [mm]: 15
- Max. planing width [mm]: 231
- Min. planing height [mm]: 3
- Max. planing height [mm]: 161
- Feed table length [mm]: 1000
- Feed roller diameter [mm]: 140
- Feed motor [kW]: 7.5
- Conveyor drive: Cardan drive
- Lubrication system: Automatic
- Diameter extraction nozzle [mm]: 160
- Options: Powerlock, Powered rollers in table, Automatic feeding system
- Feed speed: Automatic

- └ Min. feed speed [m/min]: 6
- └ Max. feed speed [m/min]: 36
- └ Feed speed control: Continuously adjustable

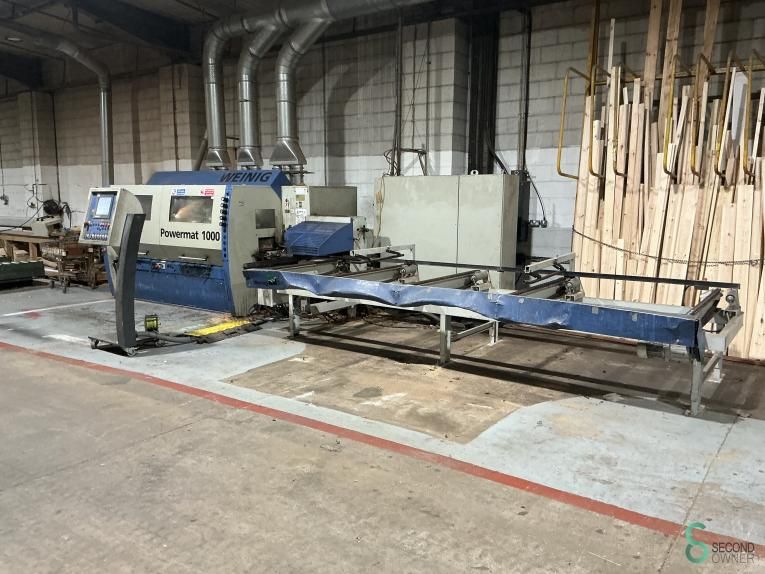

- Feeding system:

- └ Brand: Weinig
- └ Type: E-1/L
- └ Max. feed length [mm]: 5000
- └ Max. feed width [mm]: 230.5

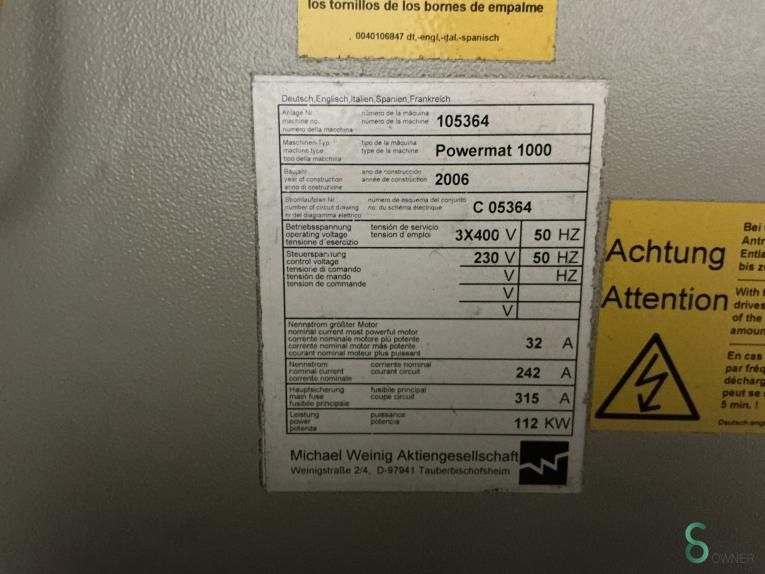

- Voltage [V]: 400
- Current consumption [A]: 242
- Fuse [A]: 315
- Power [kW]: 112.0
- Transport weight [kg]: 5000kg
- Transport packages [pcs.]: 2
