Four sided planers Leadermac Compact 623 2015

Description

- Year: 2015
- Documentation available: No
- CE certificate present: No

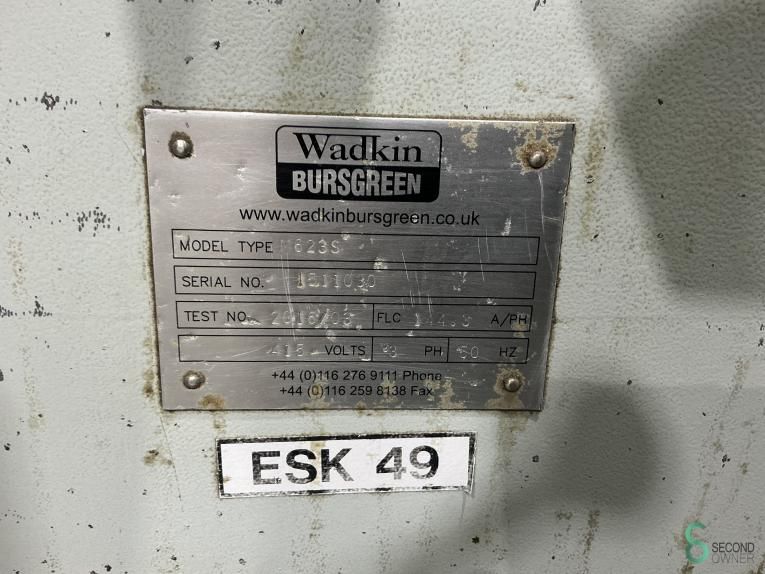

- Serial number: 1511030

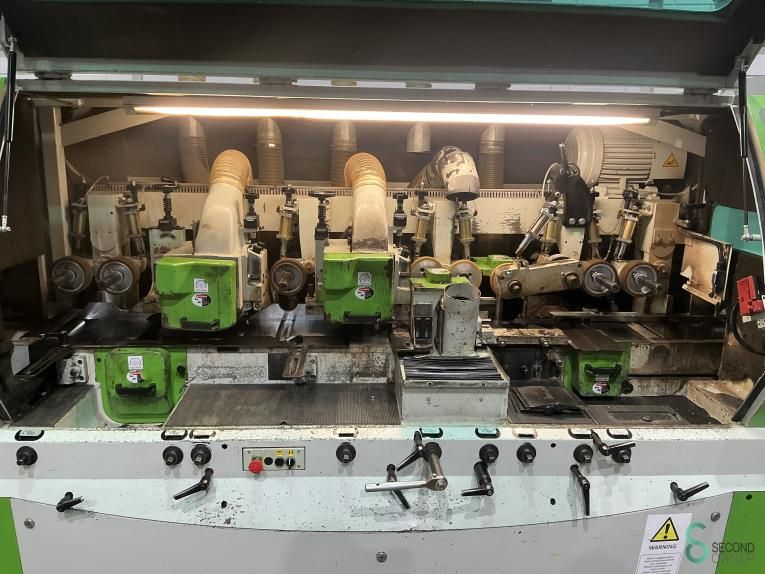

- Number of spindles [pcs.]: 6

- └ Spindle 1:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 2:

- - Spindle type: Vertical spindle
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 3:

- - Spindle type: Vertical spindle
- - Motor power [kW]: 7.5
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 4:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 5:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- └ Spindle 6:

- - Spindle type: Horizontal spindle
- - Motor power [kW]: 11
- - Spindle diameter [mm]: 40
- - Cutterhead speed [rpm]: 6000

- Min. planing width [mm]: 44
- Max. planing width [mm]: 240
- Min. planing height [mm]: 18
- Max. planing height [mm]: 150
- Feed table length [mm]: 1150
- Feed roller diameter [mm]: 140
- Feed motor [kW]: 8.7
- System/software: Schneider
- Conveyor drive: Cardan drive
- Lubrication system: Manual

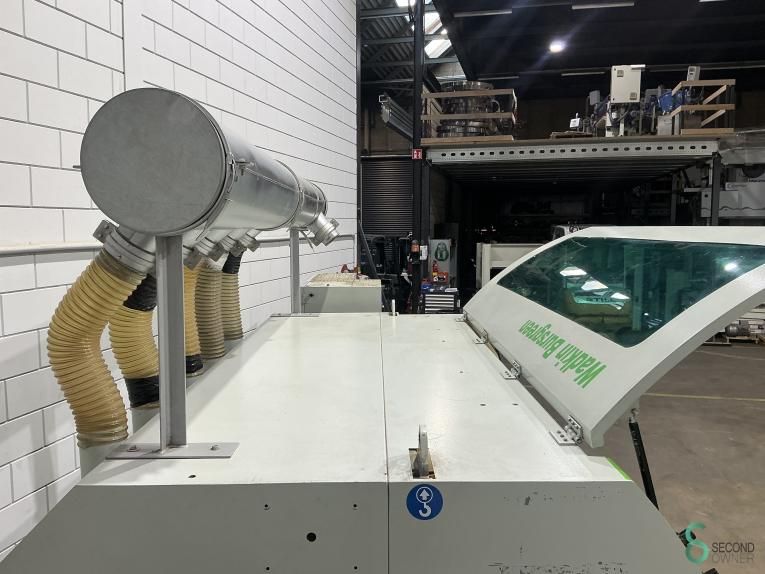

- Diameter extraction nozzle [mm]: 125
- Options: Powered rollers in table
- Feed speed: Automatic

- └ Min. feed speed [m/min]: 6
- └ Max. feed speed [m/min]: 24.1
- └ Feed speed control: Continuously adjustable

- Voltage [V]: 415
- Current consumption [A]: 144.3
- Fuse [A]: 200
- Power [kW]: 60.0
- Transport dimensions: 4900mm x 1900mm x 1800mm (l x w x h)
- Transport weight [kg]: 2000kg
- Transport packages [pcs.]: 1
