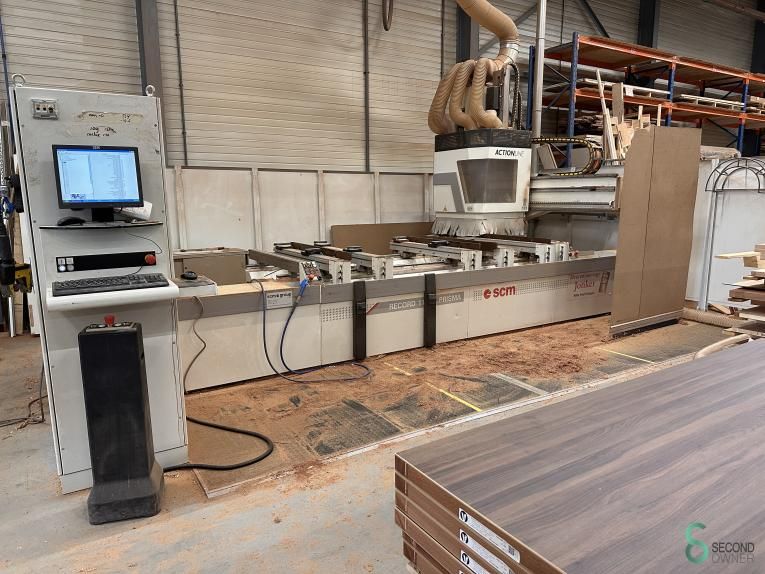

CNC Horizontal Machine centers SCM Record 110 AL TVN Prisma 2006

Description

- Machine available from: 2026-07-10
- Year: 2006
- Documentation available: Yes
- CE marking present: Yes
- CE certificate present: Yes

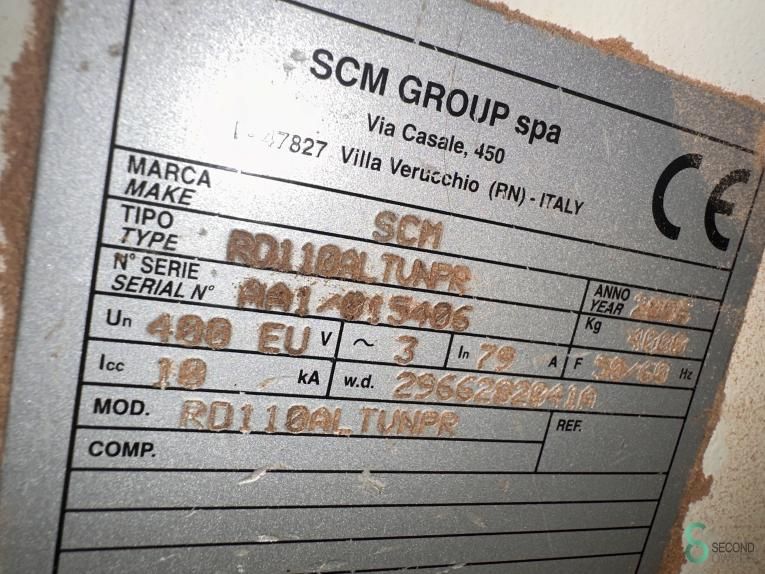

- Serial number: AA1/015406
- Operating hours: 14808
- Number of milling spindles [pcs.]: 1

- └ Milling spindle 1:

- - Number of controlled axes [pcs.]: 5
- - Min. spindle speed [rpm]: 600
- - Max. spindle speed [rpm]: 24000
- - Main motor power [kW]: 11
- - C-axis present: Yes

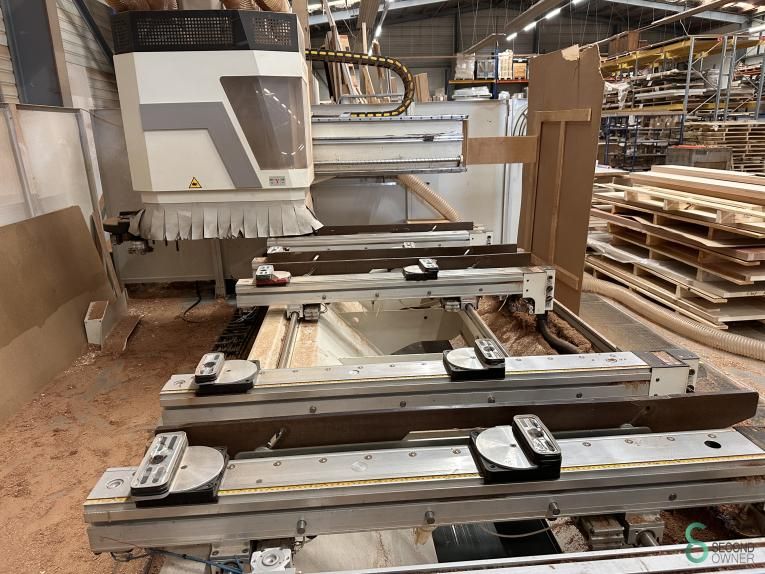

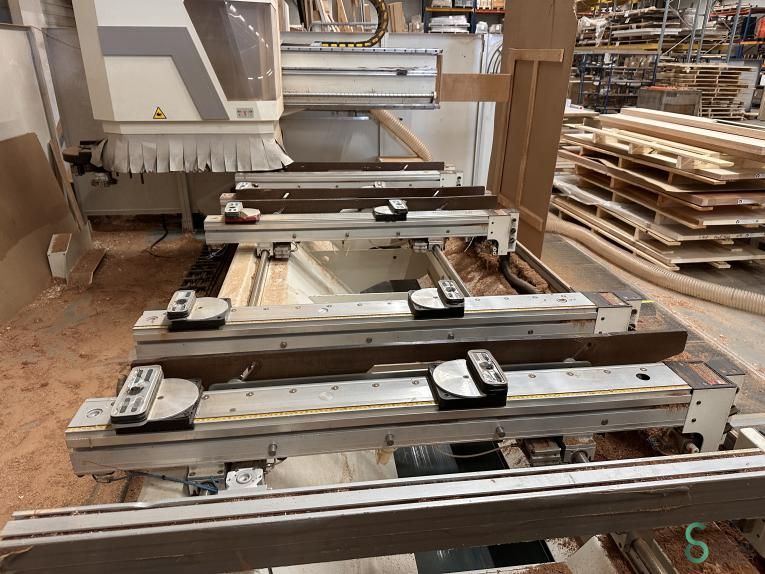

- Type milling table: Beam table
- Tool clamping system: HSK-F63
- Material clamp system: Pneumatic
- Drilling unit present: Yes

- └ Horizontal drill spindles [pcs.]: 6
- └ Vertical drilling spindles [pcs.]: 12

- Saw unit present: Yes
- Tool changer positions [pcs.]: 16
- System/software: Xilog plus
- Safety feature: Safety mat
- Vacuum pump present: Yes

- └ Number [pcs.]: 1
- └ Brand: Becker
- └ Main motor power [kW]: 5.5
- └ Capacity [m³/h]: 250

- CNC options: Offcut conveyor, Manual control
- CNC documentation available: User keys/licenses
- Table length [mm]: 3050
- Table width [mm]: 13
- Working range X [mm]: 3110
- Working range Y [mm]: 1300
- Z-axis working range [mm]: 200
- X-axis maximum stroke [mm]: 3500
- Y-axis maximum stroke [mm]: 1815
- Z-axis maximum stroke [mm]: 440
- Installed length [mm]: 4600
- Installed width [mm]: 6500
- Installed height [mm]: 3400
- Transport dimensions: 9000mm x 2450mm x 2850mm (l x w x h)
- Transport weight [kg]: 4000kg
- Transport packages [pcs.]: 1
