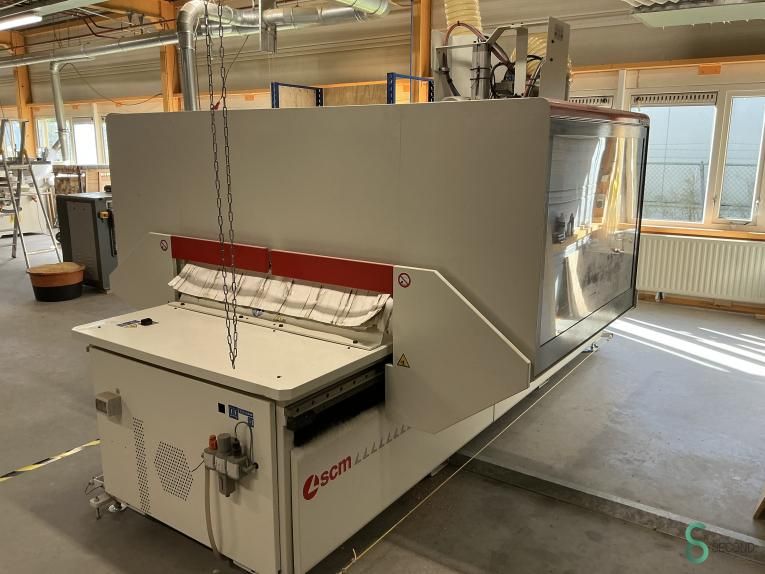

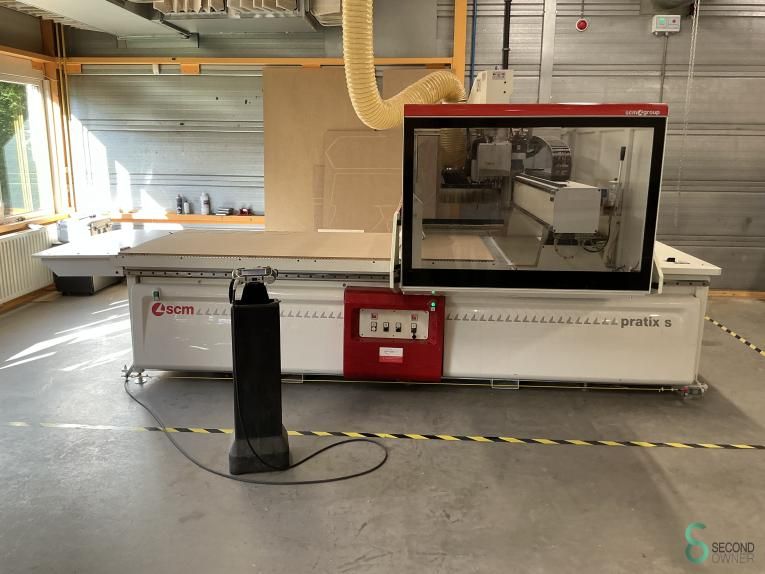

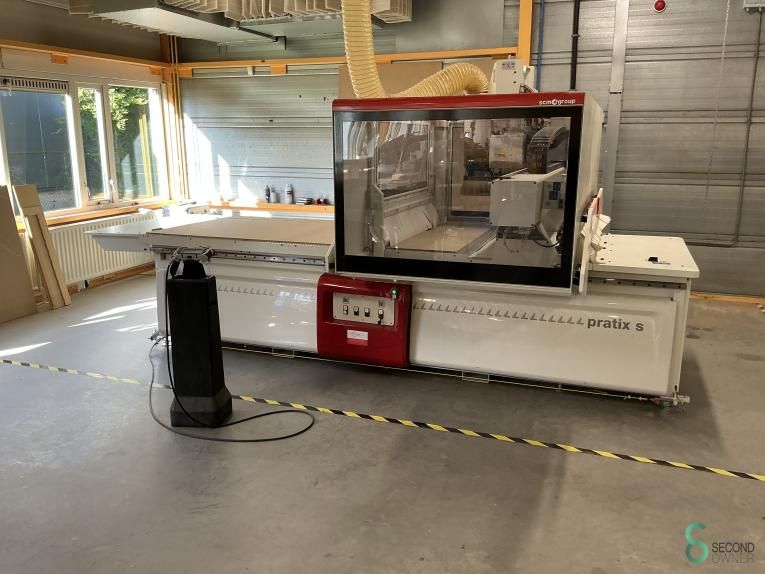

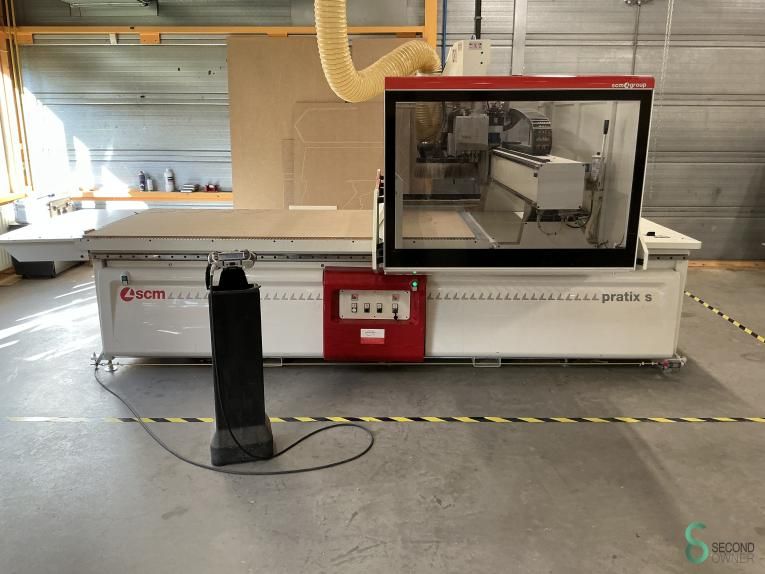

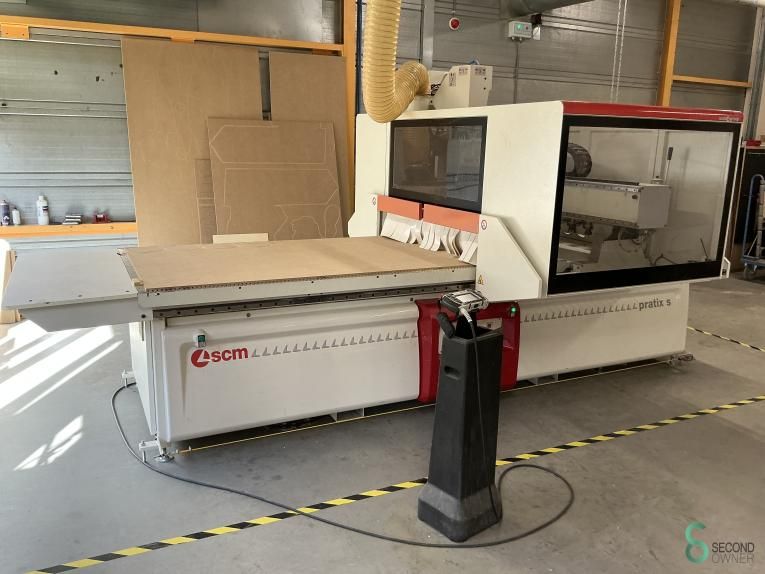

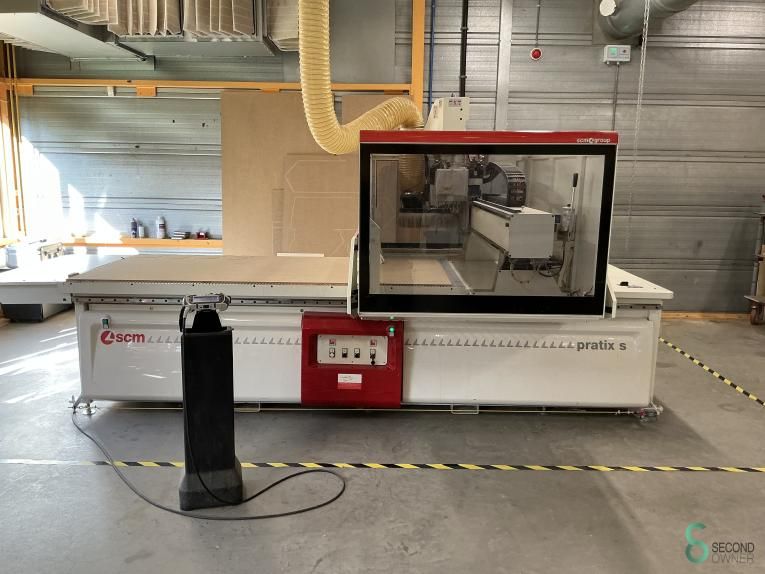

CNC Horizontal Machine centers SCM Pratix S 12 B 2012

Description

- Details:

- └ Description: The machine is operated manually and via USB for programs; a computer is not included.

- Year: 2012

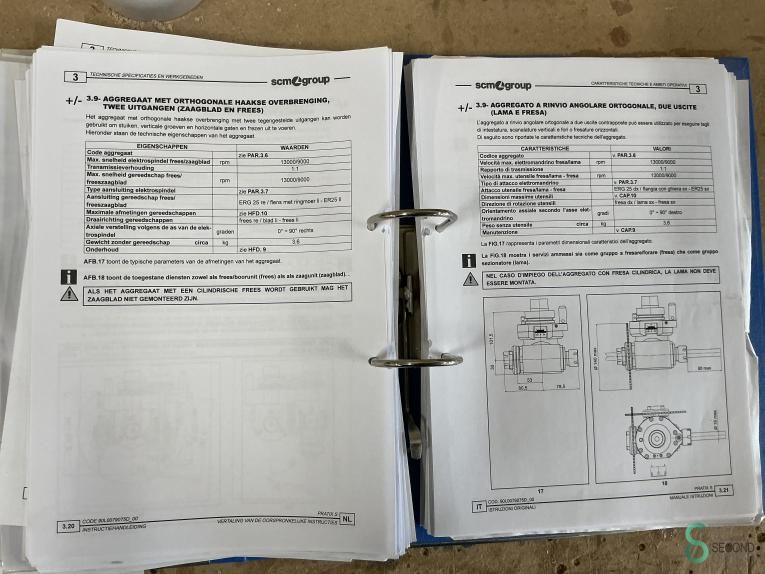

- Documentation available: Yes
- CE marking present: Yes
- Serial number: AH/116420
- Number of milling spindles [pcs.]: 1

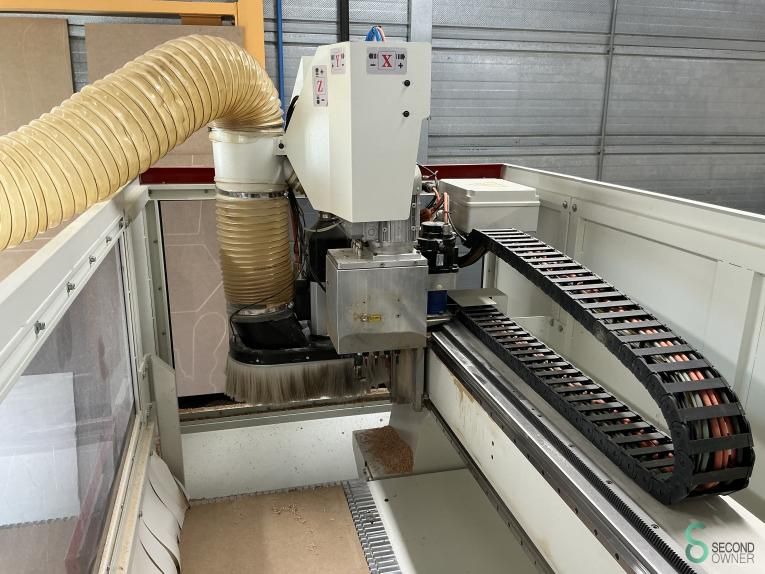

- └ Milling spindle 1:

- - Number of controlled axes [pcs.]: 3
- - Min. spindle speed [rpm]: 1500
- - Max. spindle speed [rpm]: 24000
- - Main motor power [kW]: 6.6

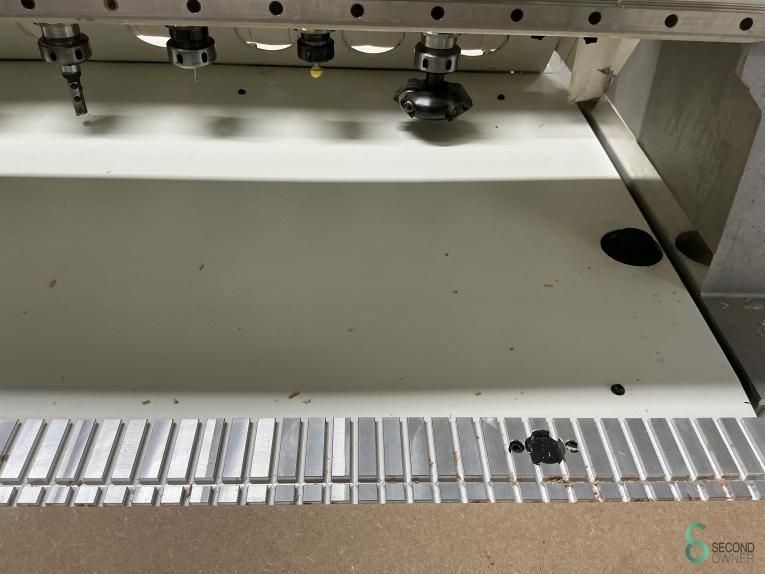

- Type milling table: Flat table
- Tool holder: HSK-F63
- Material clamp system: Pneumatic

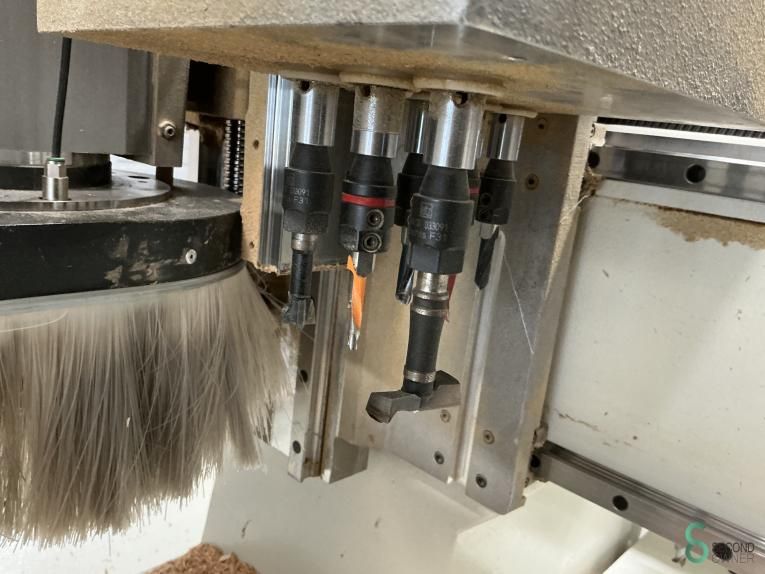

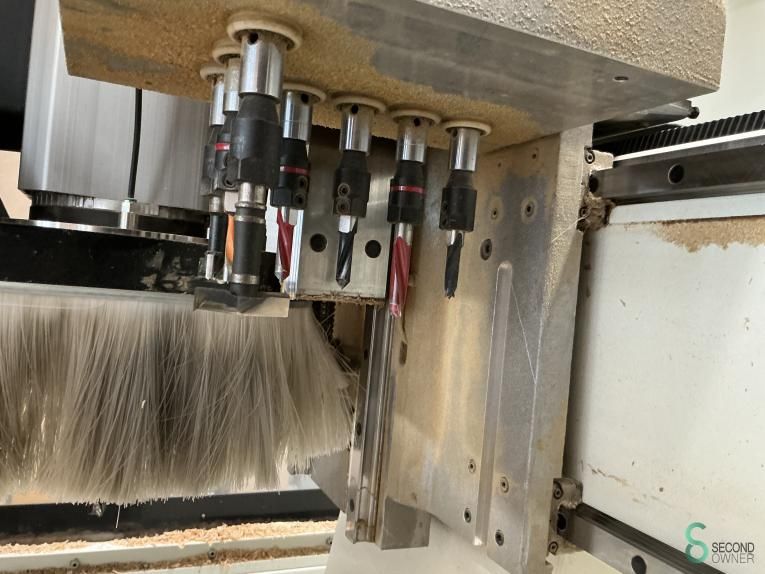

- Drilling unit present: Yes

- └ Motor power [kW]: 2.2
- └ Vertical drilling spindles [pcs.]: 7

- Tool changer positions [pcs.]: 8
- System/software: Xilog Maestro
- Safety feature: Bumper guard, Door interlock switches
- Vacuum pump present: Yes

- └ Number [pcs.]: 1
- └ Brand: Becker
- └ Type: VTLF 2.250/0-791
- └ Year of manufacture: 2012
- └ Main motor power [kW]: 5.5
- └ Capacity [m³/h]: 244
- └ Connection diameter [mm]: 80

- Table length [mm]: 2450
- Table width [mm]: 1220
- Working range X [mm]: 4320
- Working range Y [mm]: 1985
- Z-axis working range [mm]: 250
- Voltage [V]: 400
- Current consumption [A]: 37
- Fuse [A]: 40
- Installed length [mm]: 4500
- Installed width [mm]: 2500
- Installed height [mm]: 2300
- Transport dimensions: 4500mm x 2250mm x 2300mm (l x w x h)
- Transport weight [kg]: 2100kg
- Transport packages [pcs.]: 1
