CNC Horizontal Machine centers SCM Accord 25 FX 2018

Description

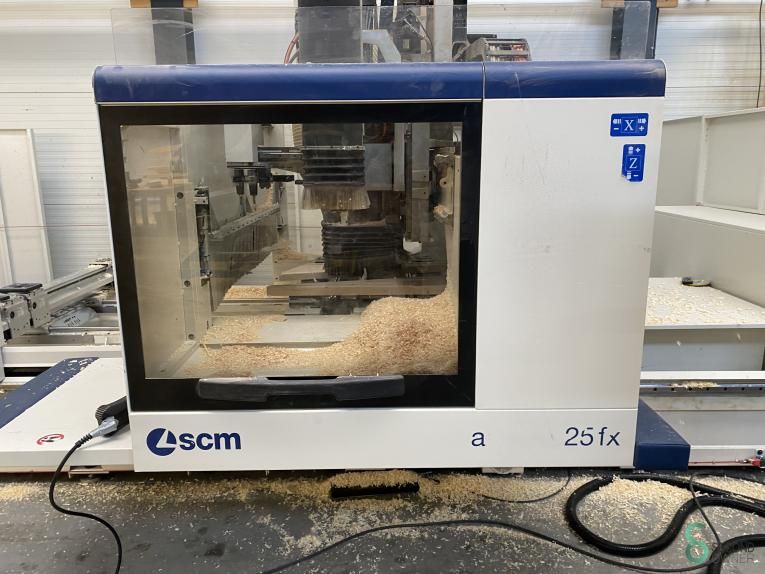

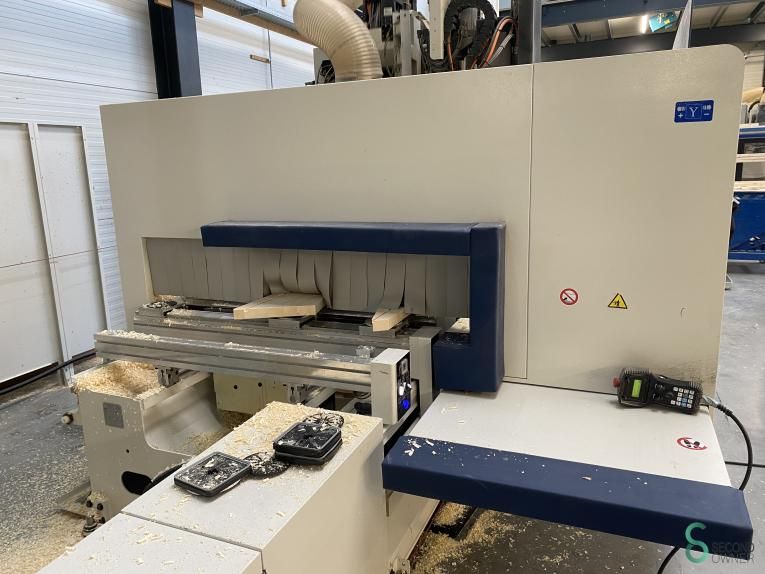

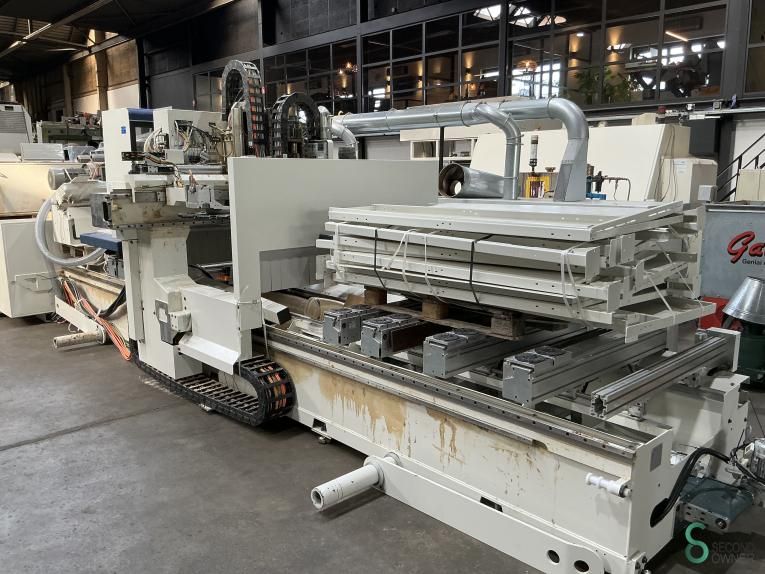

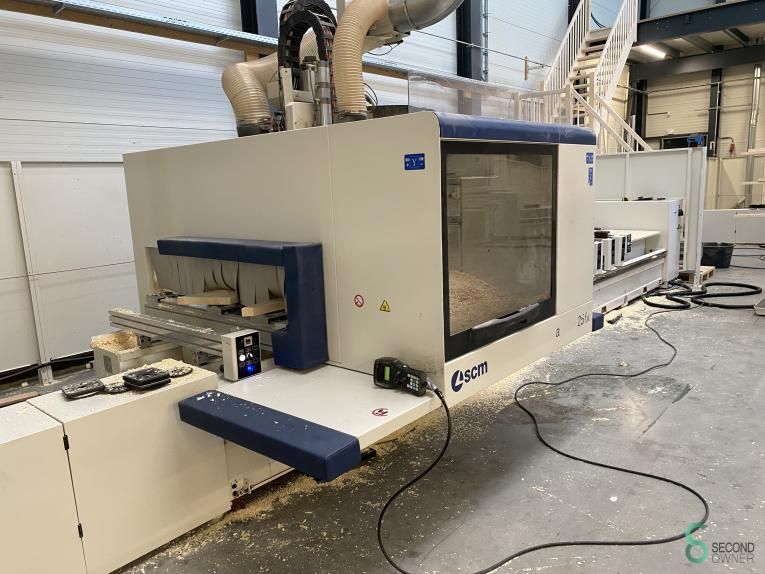

CNC machining centre SCM ACCORD 25 FX

Brand SCM

Type ACCORD 25 FX

Year of construction 2018

Machine no. AA10000992

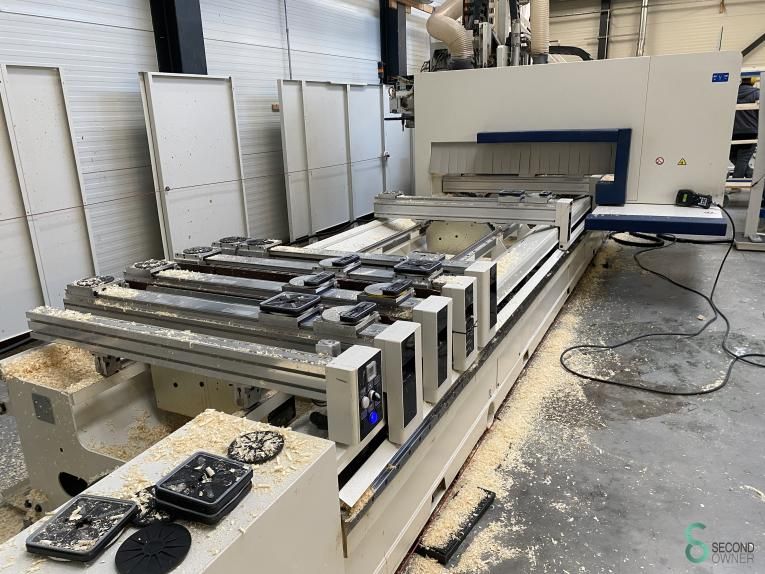

Machining table dimensions 5020x1380 mm (LxW)

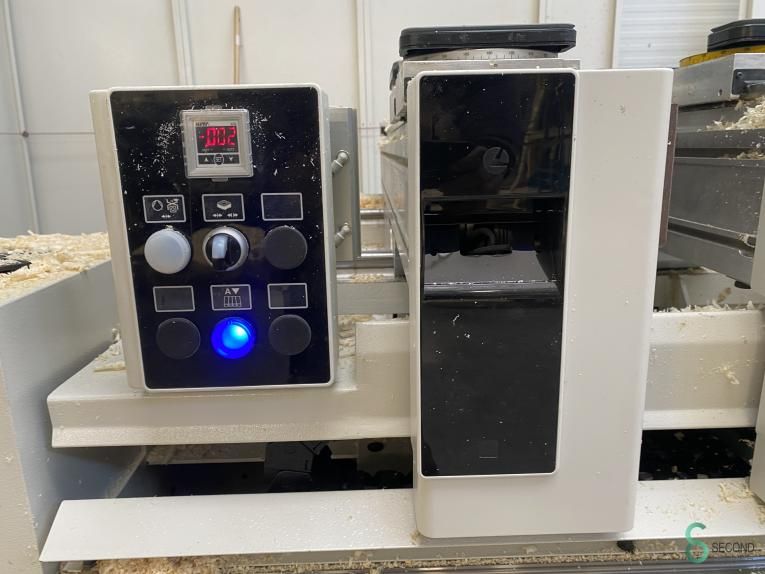

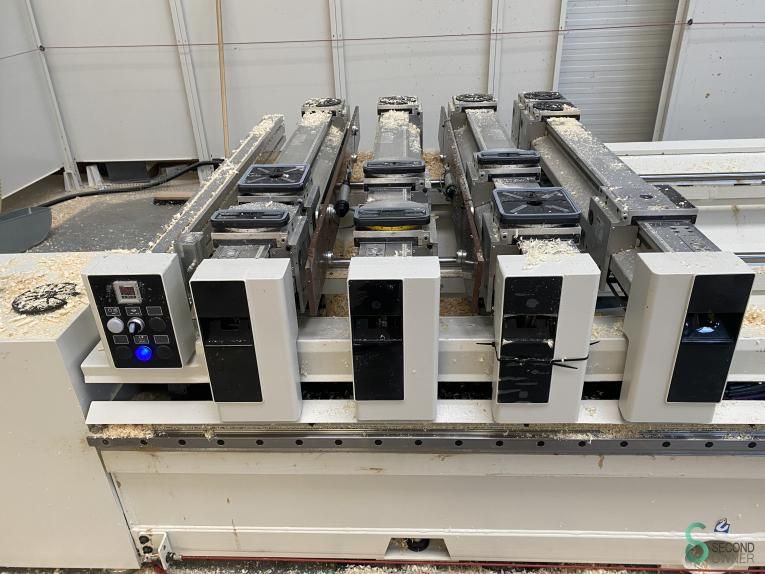

Worktable equipped with 2 vacuum fields

Worktable equipped with 2 reference lugs

Including 8 reference lugs and 8 supports

Speed XY, vector 35 m/min

Movement axes

Maximal speed X axis 25 m/min (pro space)

Maximum speed X axis 90 m/min (pro speed)

Maximum speed Y axis 90 m/min

Maximum speed Z-axis 30 m/min

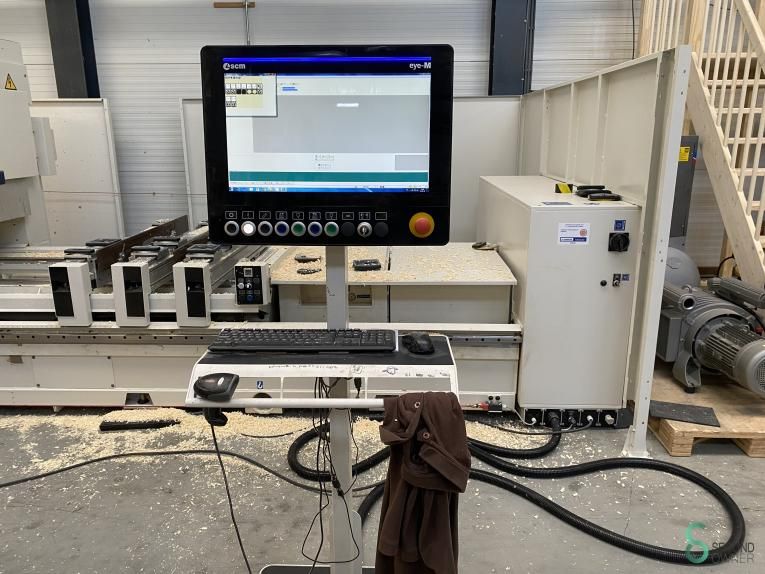

Control unit

Machine control KVARA control

Windows Embedded Standard 7-64bit

Hard disk storage capacity 500GB-7200rpm

Microprocessor Intel Pentium-2.9GHz

RAM memory 8GB-DDR4

XILOG-MAESTRO software package

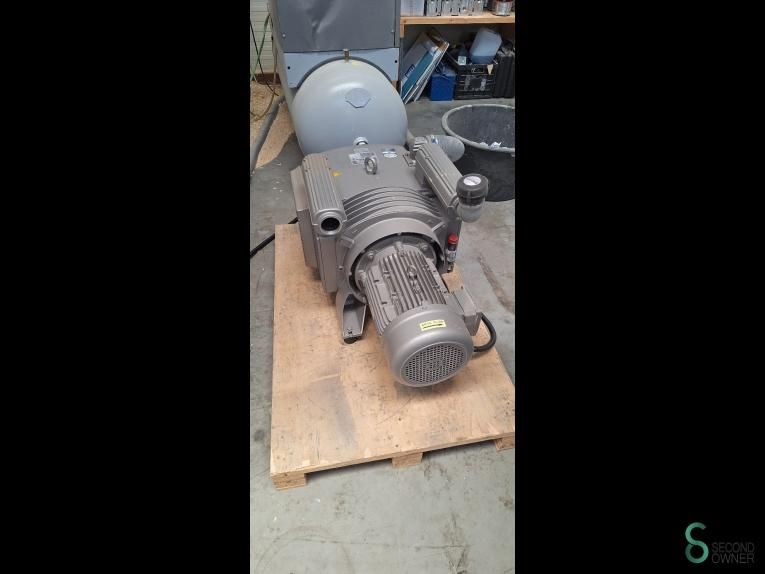

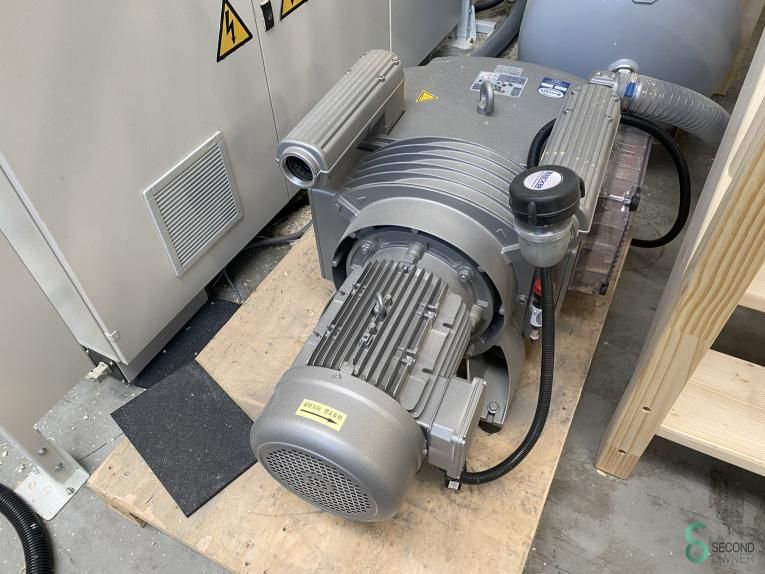

Including vacuum pump

Motor power 5.5 kW

Pump capacity 250m3/hour

Vacuum pressure maximum 0.9 bar

Total dimensions 9000x4500x3000 (LxWxH)

Total weight 7,500 KG.

- Year: 2018
- Documentation available: No
- CE marking present: Yes
- CE certificate present: No
- Serial number: AA10000992

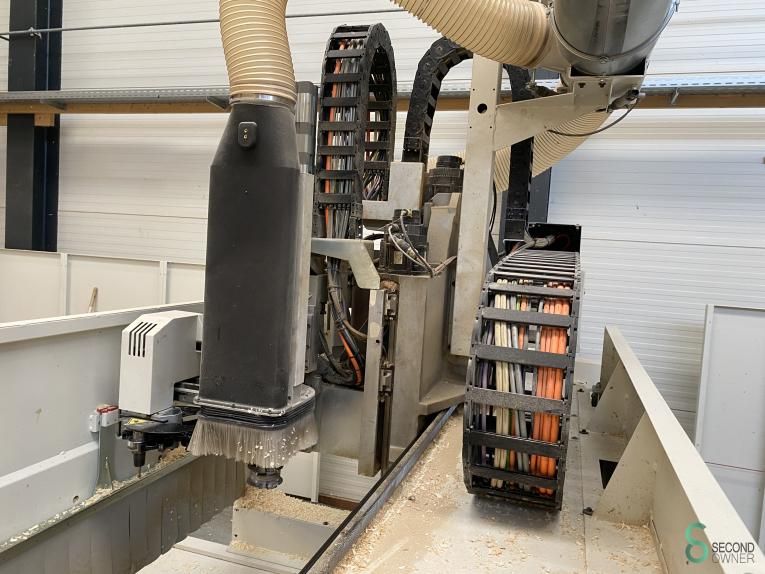

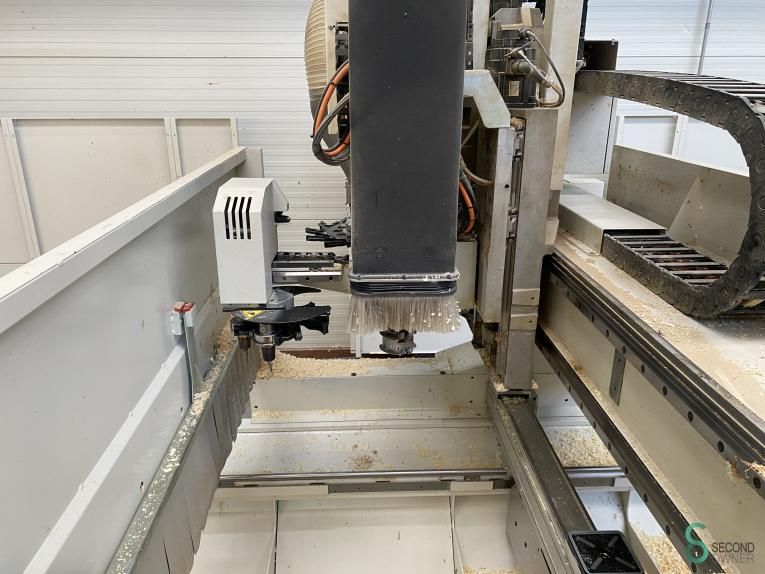

- Number of milling spindles [pcs.]: 2

- └ Milling spindle 1:

- - Number of controlled axes [pcs.]: 3
- - Min. spindle speed [rpm]: 6000
- - Max. spindle speed [rpm]: 18000
- - Main motor power [kW]: 15

- └ Milling spindle 2:

- - Number of controlled axes [pcs.]: 3
- - Min. spindle speed [rpm]: 600
- - Max. spindle speed [rpm]: 24000
- - Main motor power [kW]: 12

- Type milling table: Beam table
- Tool holder: HSK-F63
- Tool changer positions [pcs.]: 12
- System/software: SCM Maestro
- Safety feature: Bumper guard
- Vacuum pump present: Yes

- └ Number [pcs.]: 1
- └ Brand: Becker
- └ Main motor power [kW]: 5.5
- └ Capacity [m³/h]: 250

- CNC options: Offcut conveyor
- Table length [mm]: 5020
- Table width [mm]: 1380
- Working range X [mm]: 5020
- Working range Y [mm]: 1300
- Z-axis working range [mm]: 250
- X-axis maximum stroke [mm]: 5400
- Y-axis maximum stroke [mm]: 1650
- Z-axis maximum stroke [mm]: 450
- Transport weight [kg]: 7500kg
