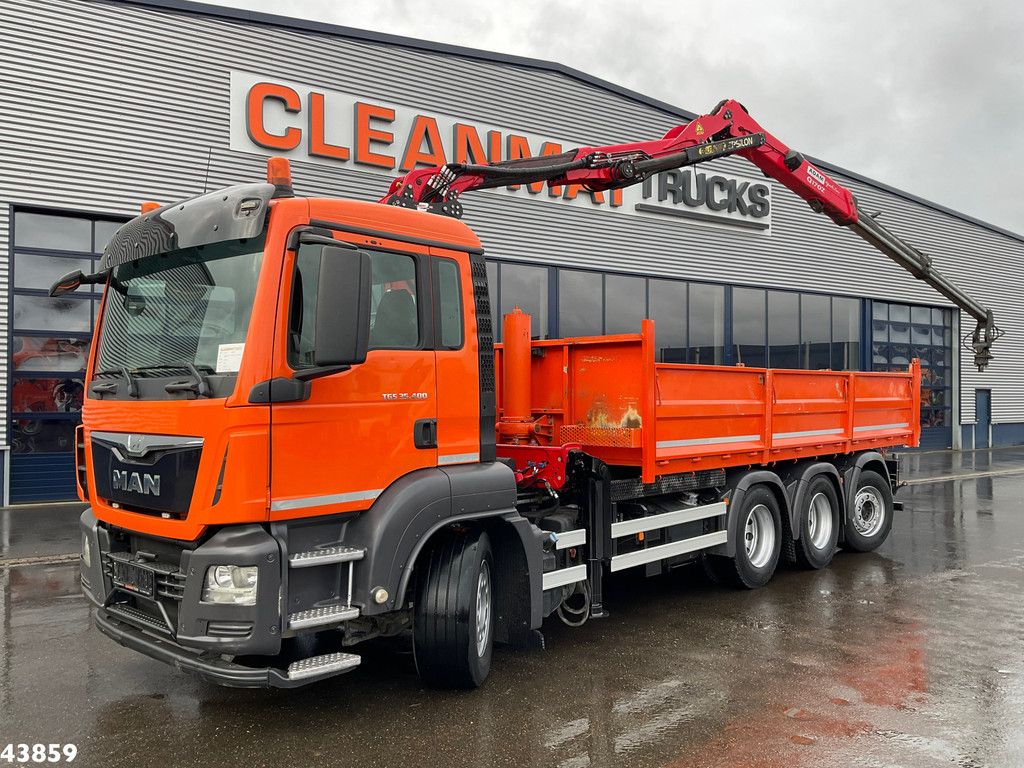

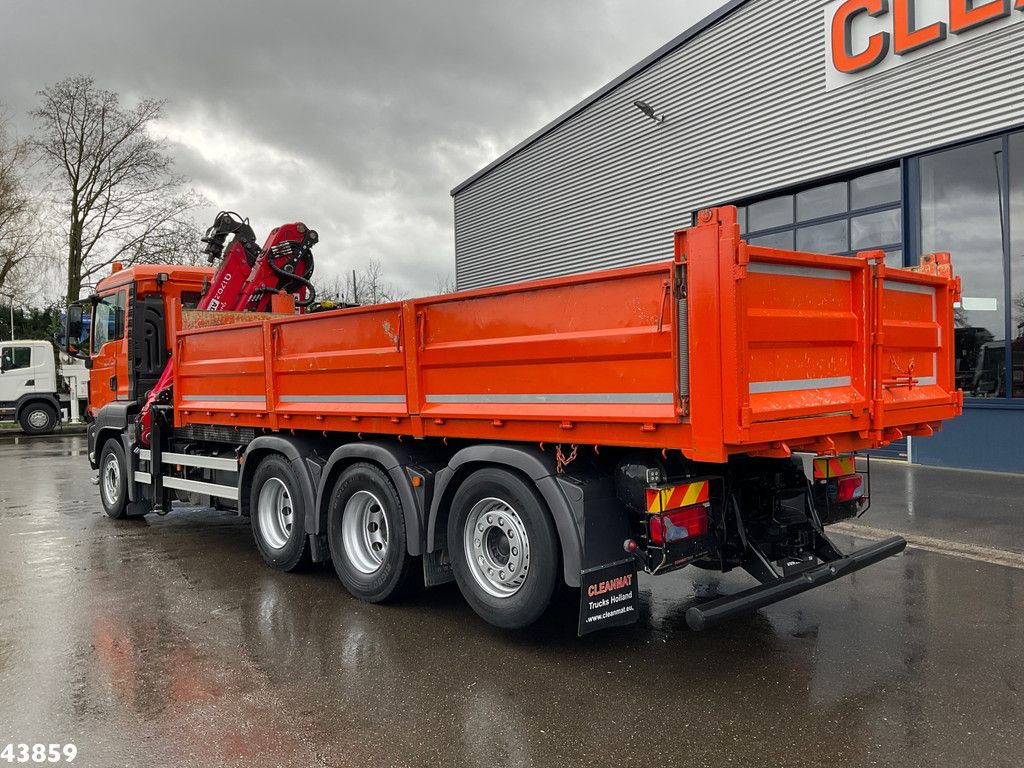

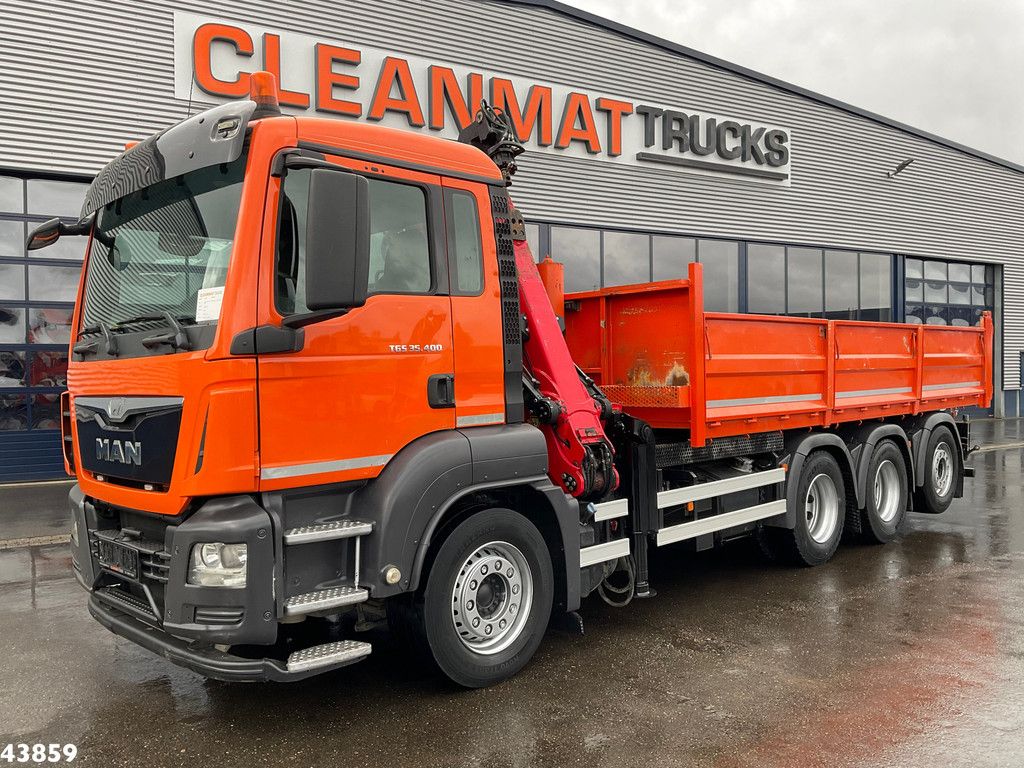

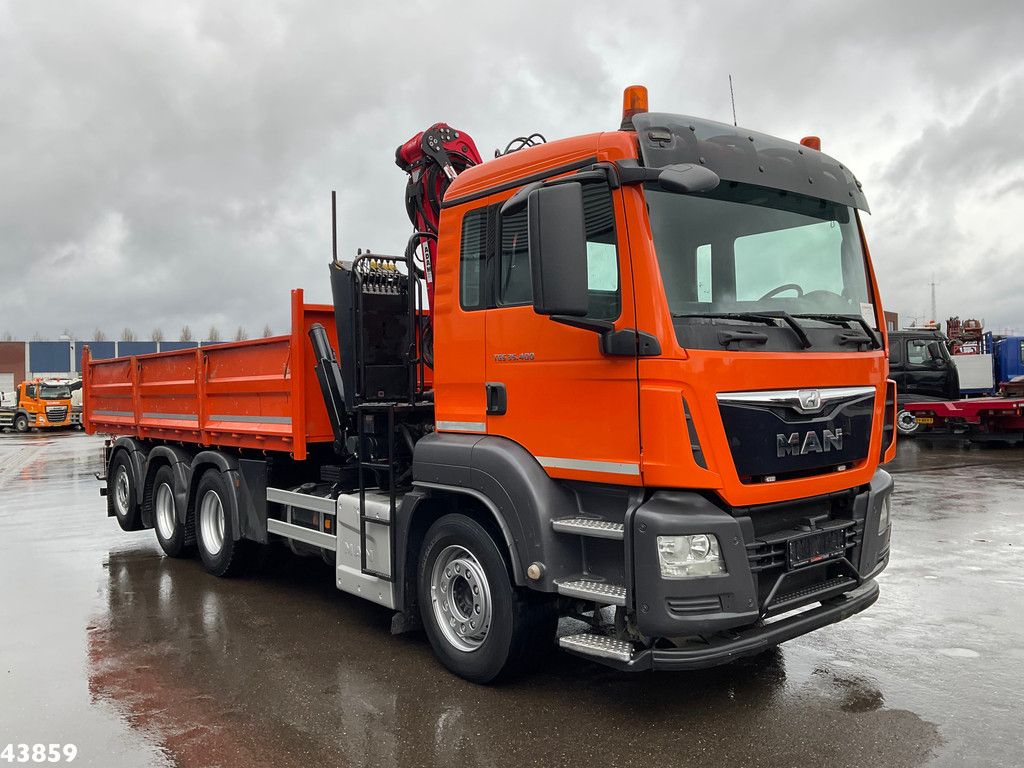

Man TGS 35.400 8x4 Euro 6 Palfinger 17 Tonmeter Z-kraan
4361617
8x viewed
Today
Basic information
Brand
MAN
Model/Type
TGS 35.400 8x4 Euro 6 Palfinger 17 Toner Z-
Condition
Used
Price
€53,500 VAT ex.
Year of construction
2015
Meter read-out
462253
Number of doors
2
Transmission
Manual gearbox
Cab
day
Axle configuration
8x4
Front axle
Tyre size: 385/55 22.5; Max. axle load: 9000 kg; Steering; Tyre profile left: 40%; Tyre profile right: 40%; Suspension: leaf suspension
Rear axle 1
Tyre size: 315/70 22.5; Double wheels; Differential lock; Max. axle load: 9500 kg; Tyre profile left inner: 60%; Tyre profile left outer: 60%; Tyre profile right outer: 60%; Tyre profile right outer: 60%; Reduction: single reduction; Suspension: air suspension
Rear axle 2
Tyre size: 315/70 22.5; Double wheels; Differential lock; Max. axle load: 9500 kg; Tyre profile left inner: 70%; Tyre profile left outer: 70%; Tyre profile right outer: 70%; Tyre profile right outer: 70%; Reduction: single reduction; Suspension: air suspension
Rear axle 3
Tyre size: 385/55 22.5; Lift axle; Max. axle load: 9000 kg; Steering; Tyre profile left: 40%; Tyre profile right: 40%; Suspension: air suspension
Power
294 kW (400 HP)
Engine capacity
10.518 cc
Empty weight
17160 kg
Carrying capacity
14840 kg
GVW
32000 kg
Dimensions (LxBxH)
1000 x 255 x 380 cm
Wheelbase
390 cm
Dimensions of cargo space
623 x 244 x 76 cm
Crane
Palfinger Q170Z95TR, year of manufacture 2014, behind the cab
Tipper
Back
Number of seats
2
Emission class
Euro 6
General condition
good
Technical condition
good
Visual appearance
good
Manufacturer
Clean Mat Trucks B.V. Wageningsestraat 17 6673DB ANDELST, NL 0488712600 http://www.cleanmat.eu sales@cleanmat.eu
Options

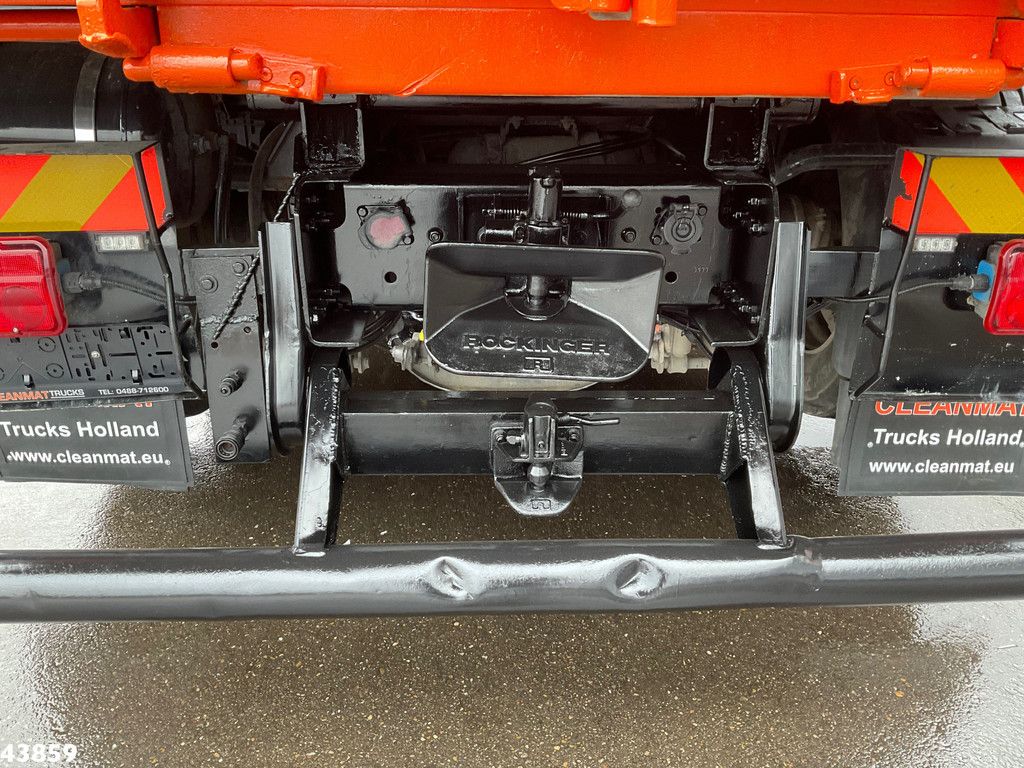

Airconditioning, Air suspension rear, Anti-lock braking system, Armrest, Coupling 40 mm, Cruise control, EBS, Electrically operated windows, Euro 6, Liftable and steering axle, Power take-off, Radio/CD player, Roof hatch, Toolbox, Visor, Warning lights
Reference number
43859
Description

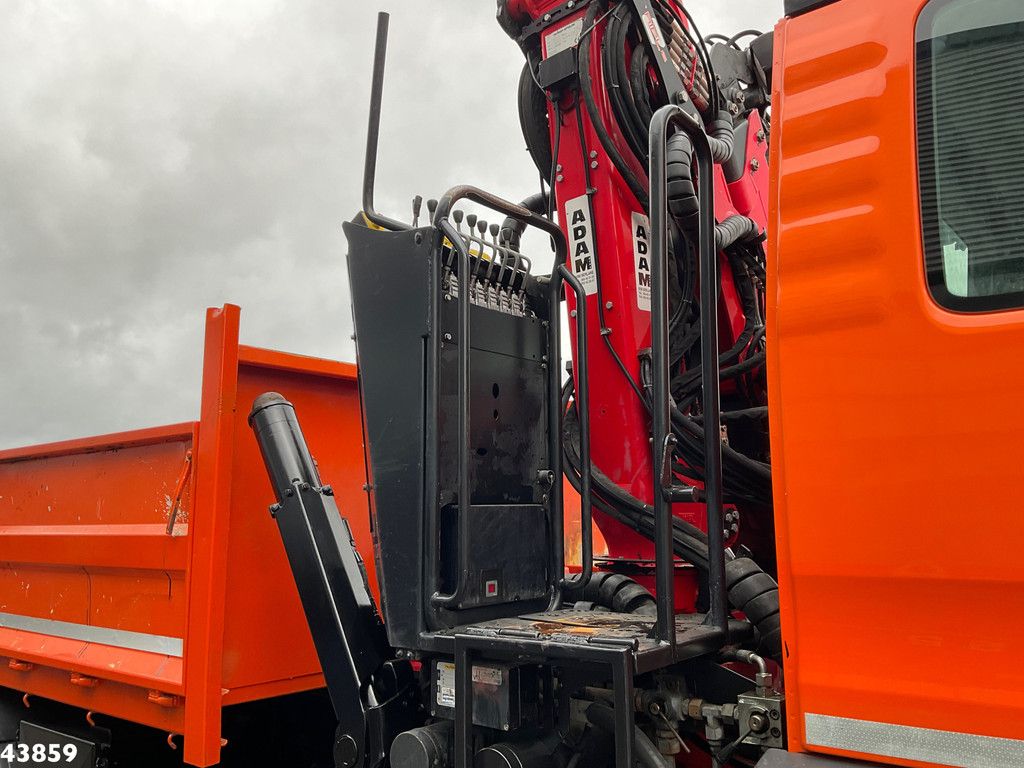

- Palfinger 17 Tonmeter Z-crane (type Q170Z95TR)
- 2 x hydraulic extendable
- 5th and 6th function
- High standing loading crane operation
- Rotator
- Lifting chart:
* 5.0 meters -> 3000 kg
* 7.0 meters -> 2120 kg
* 9.0 meters -> 1520 kg

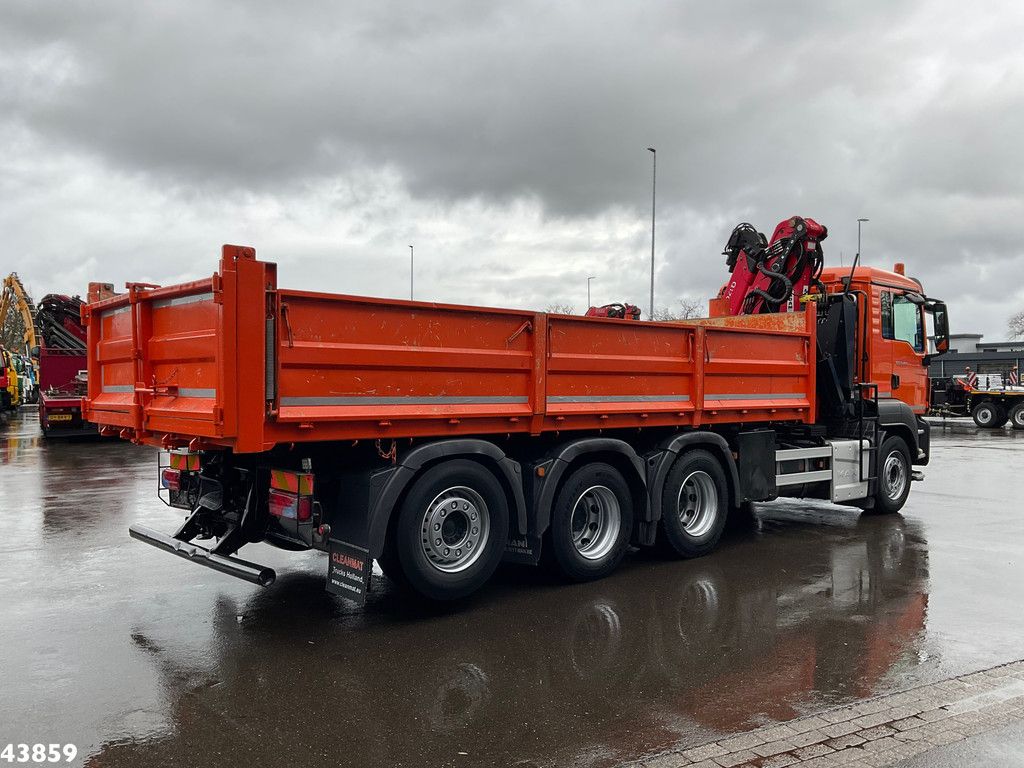

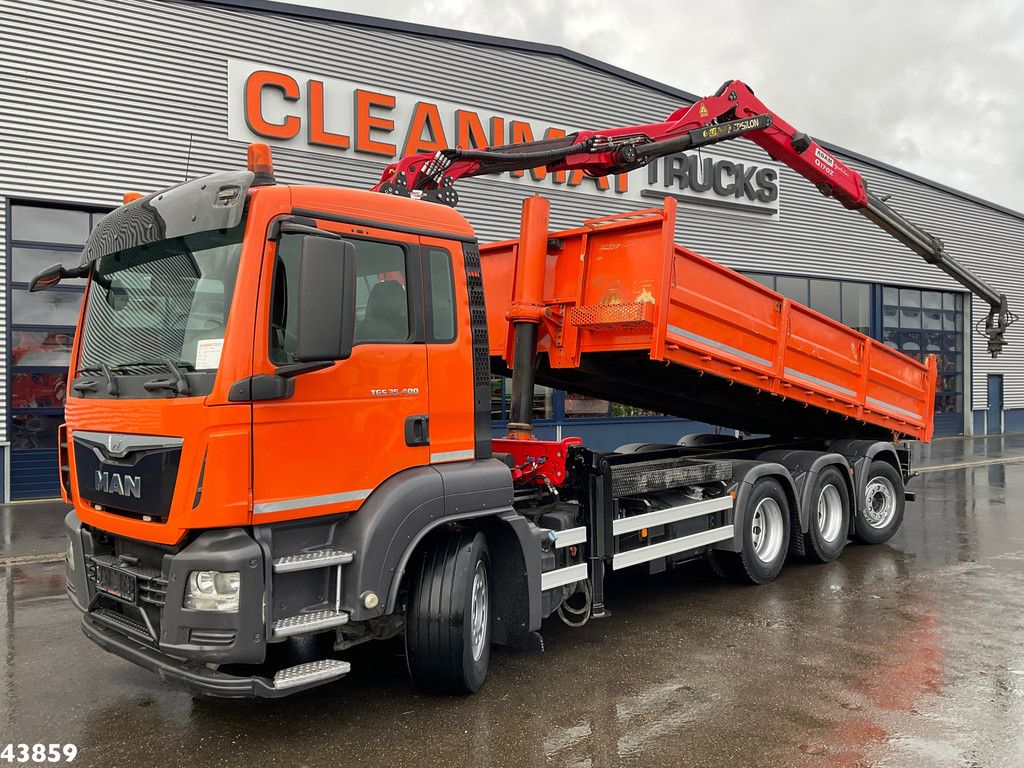

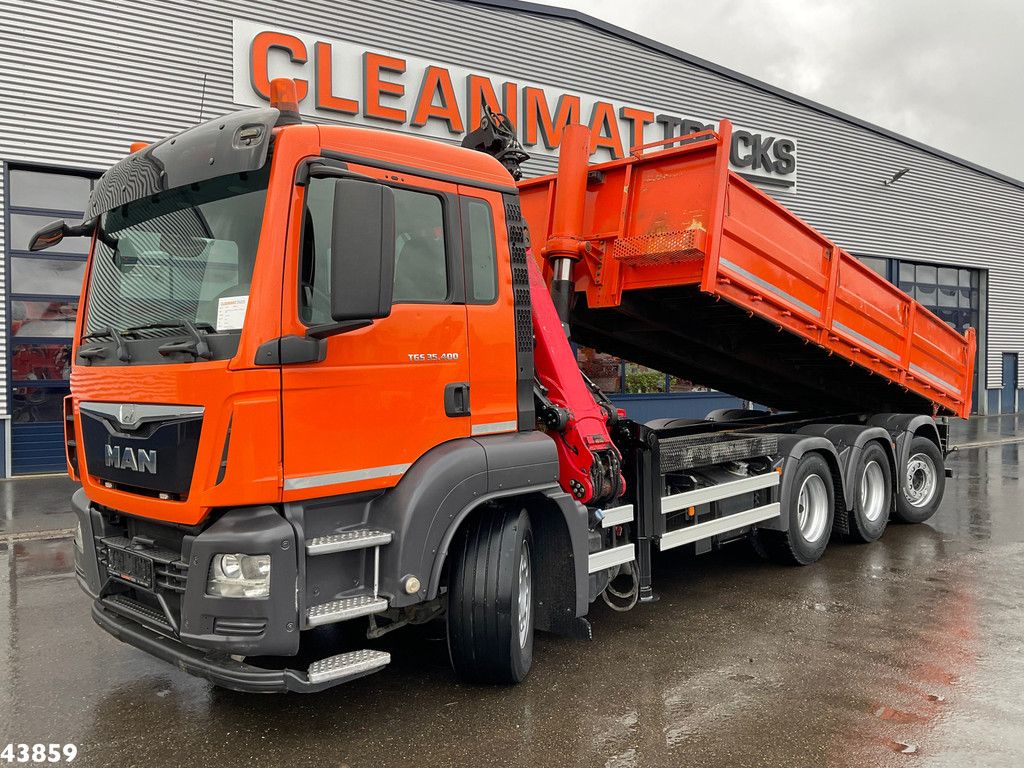

- Rear tipper 11m³
- Tipper dimensions (internal) length 623 cm x width 244 cm x width 76 cm
- Loading floor height 140 cm

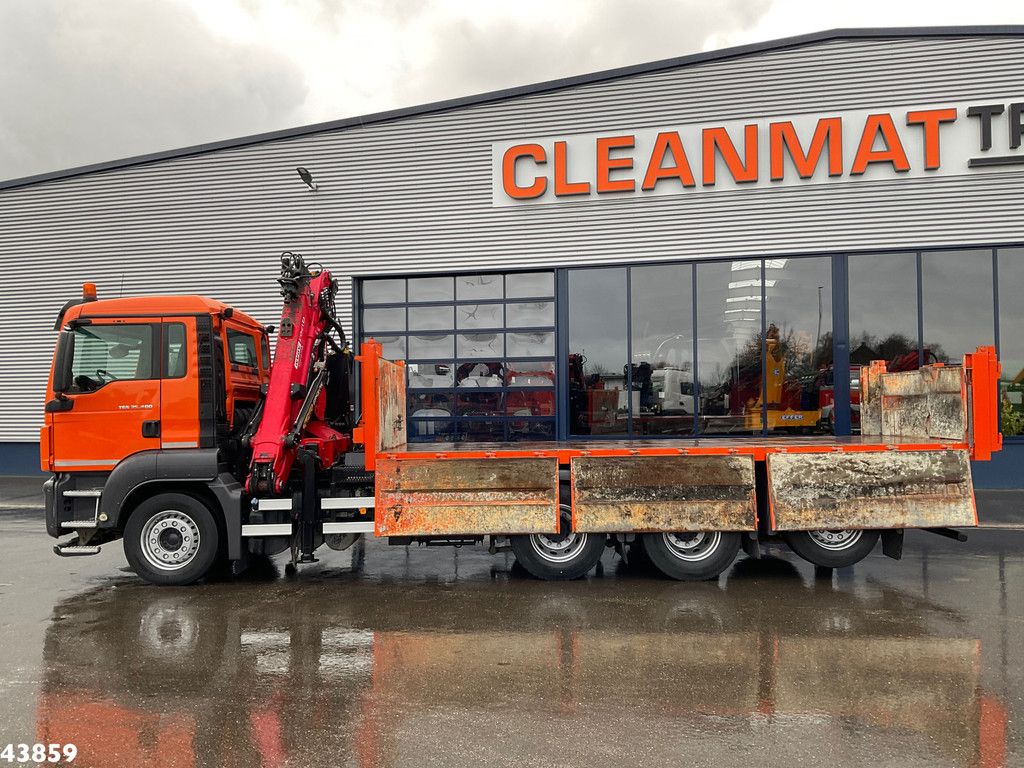

- Fold-out side boards

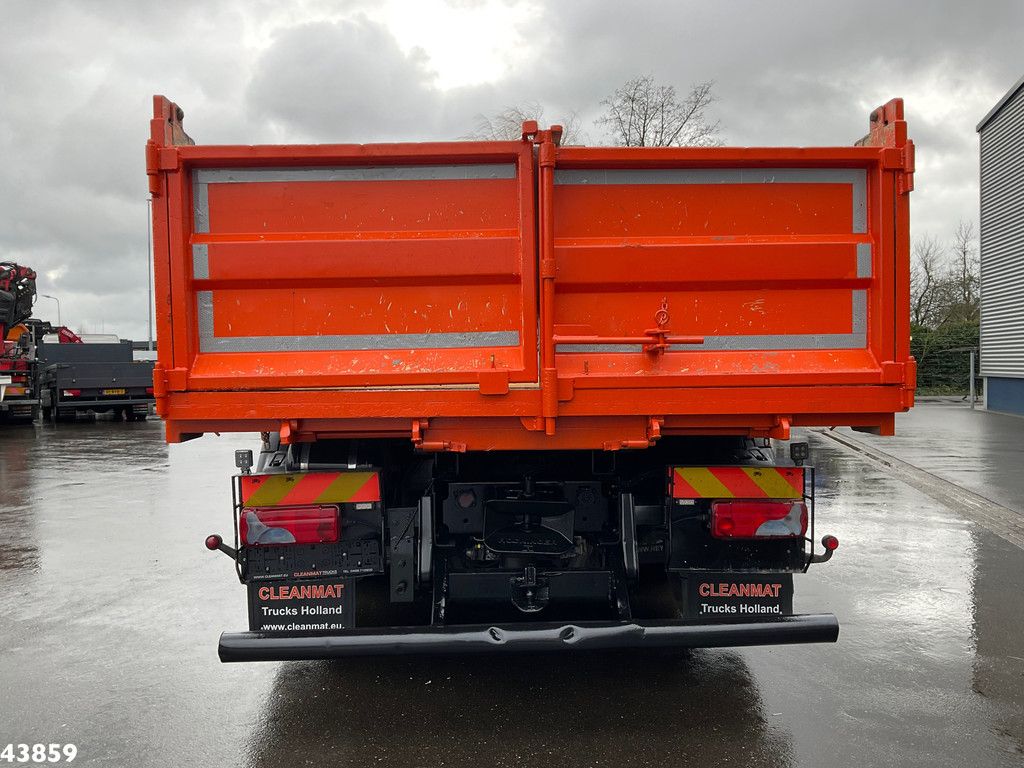

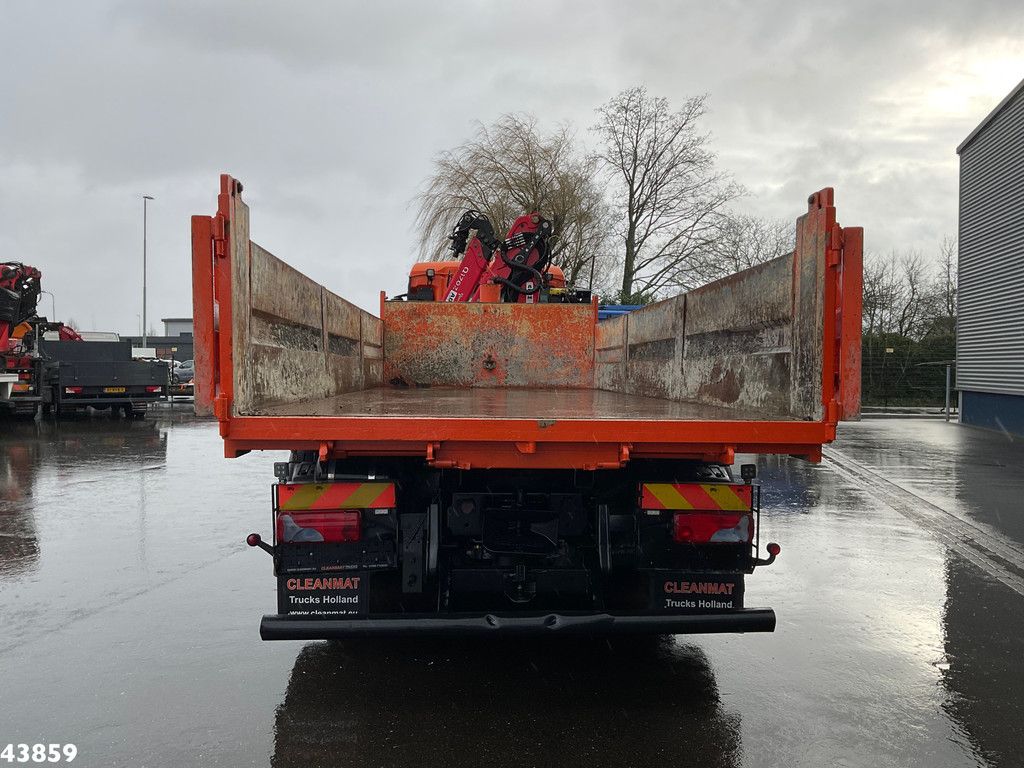

- Double action rear doors
- Toolbox
- 9 Ton front axle
- In good condition!
