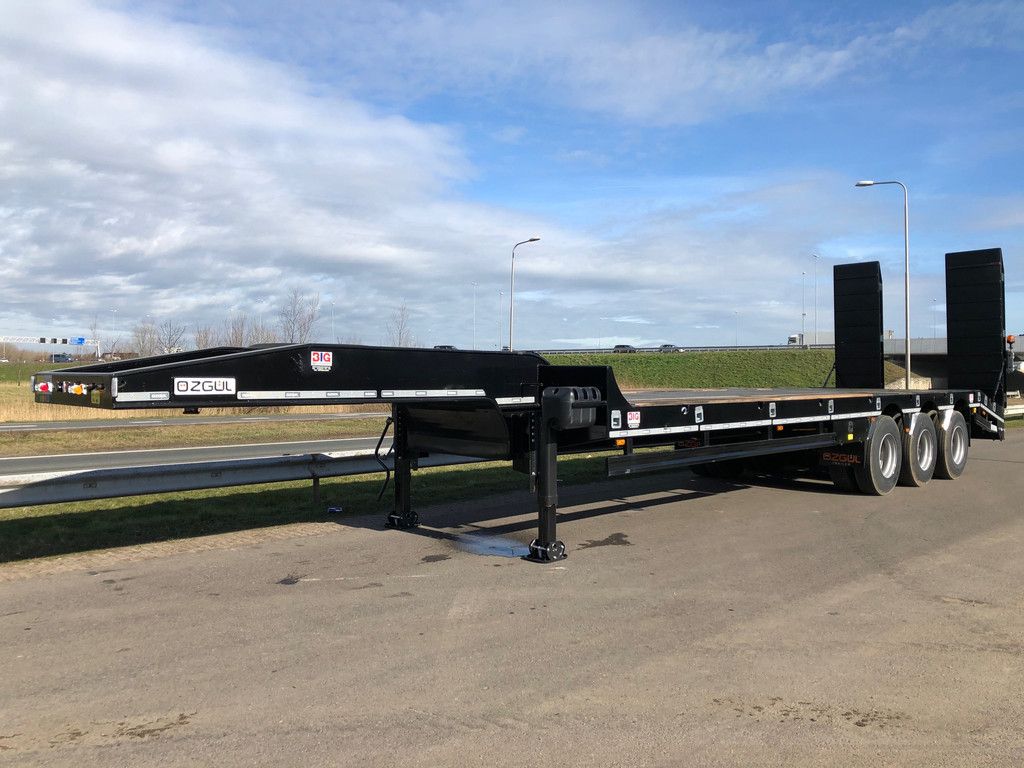

Ozgul 60 Ton 3 axle - LW3 AFR FIX

Description

MASSES & DIMENSIONS
Gross Vehicle Weight (kg) : 70.000 Loading Platform Length (mm) : 10.500
Weight of Axle Group (kg) : 48.000 Total Lenght (mm) : 14.900
Kingpin Capacity (kg) : 22.000 Total Width (mm) : 3.000
Curb Weight (kg) : 13.440 Loading Platform Height (mm) : 1.350
Pay Load (kg) : 60.000 Height of 5.th Wheel (mm) : 1.400
CONSTRUCTIONS
Base Chassis
Heavy duty and extra durability designed I type chassis All welded S355 steel
chassis. Outer frame is UPE 240 profile.
Welding (Chassis) : Automatic ARC submerged.
Welding (Superstructure) : Automatic robot welding.
Axle (Type) : Özgül Turkish Brand Drum brakes 3 x 16 Ton axles
Suspension (Type) : Mechanical leaf spring suspension / 12-14 lines
King pin (Type) : 1 position with 1x coupling-pen 2” (EU approved) Çayırova Brand. + 3.5 inch
Tires : 12+1 Units, 12 R 22.5 Available brand in stock
Rims : 12+1 Units, 9.00 x 22.5 steel rims. Jantas or Ako Brand.
Landing Gear : Mechanical operated by one side, two speed. Gos Brand.
Brake System : Two line air brake system acting on all wheels
Brake Chamber
1 axles with 2 units emergency brake chambers.
2 axle with 4 unit service brake chambers.
Electric System
24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation
SABA Brand.
● 2 x Rear Stop Lights. - 4 x Side Lights.
● 2 x White Lights - 2 x Front Lights
● 2 x Registration Plate Lights - 2 x rotating Lights
Floor
Middle of platform and on the axles complete chequred sugar plate 6/7 mm
steel,edges of the axles are wood and steel ,From the gooseneck end to 1.axles
finishing area edges are 900 mm width,70 mm height hard wood.
Rear Loading Ramps
Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic
funsion with cable push – button for remote cont.Rear ramps length 2800 mm width
900 mm,covered all steel and 20x40 mm thickness steel bars.
Color : Upon Request
Paint Application
Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats
of acrylic paint.
TECHNICAL SPECIFICATIONS
Accessories
● 2 x 7 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
● 4 x Certificated Expray mud flaps.
● 1 x Plastic water tank
● 2 x Wheel chocks and holders
● 2 x 7 Galvanized sides extensions brackets 250 mm + 250 mm
● 2 x Side Protections steel
● 1 x Tool box.
● 1 x spare Wheel carrier with 1 tire(on the gooseneck)
● 2 x Manual support Legs at the rear.
● 2 x Reflective tape and reflector sign at the rear and sides.
● 2 x Side extensions reflector
● 1 plaque places on bumper
