GUELT F110L - Izipick 115 GUELT – F110L / IZIPICK 115 Automatic Forming and Robotic Case-Packing Line with ABB FlexPicker Robot

Description

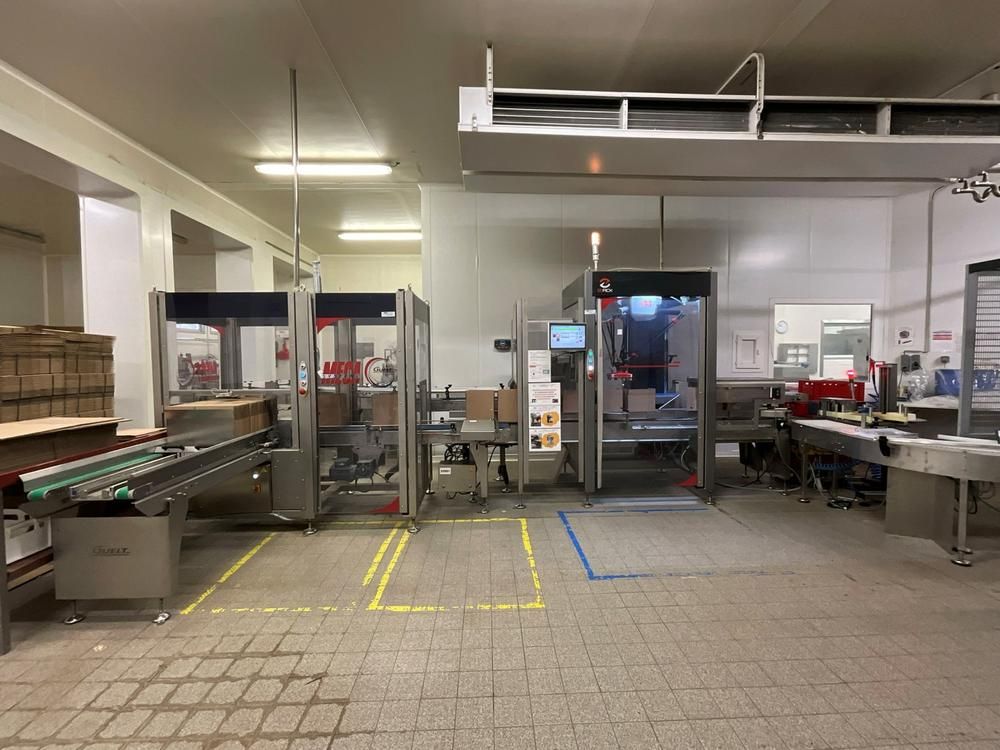

GUELT automatic cardboard box forming and packing line, consisting of:

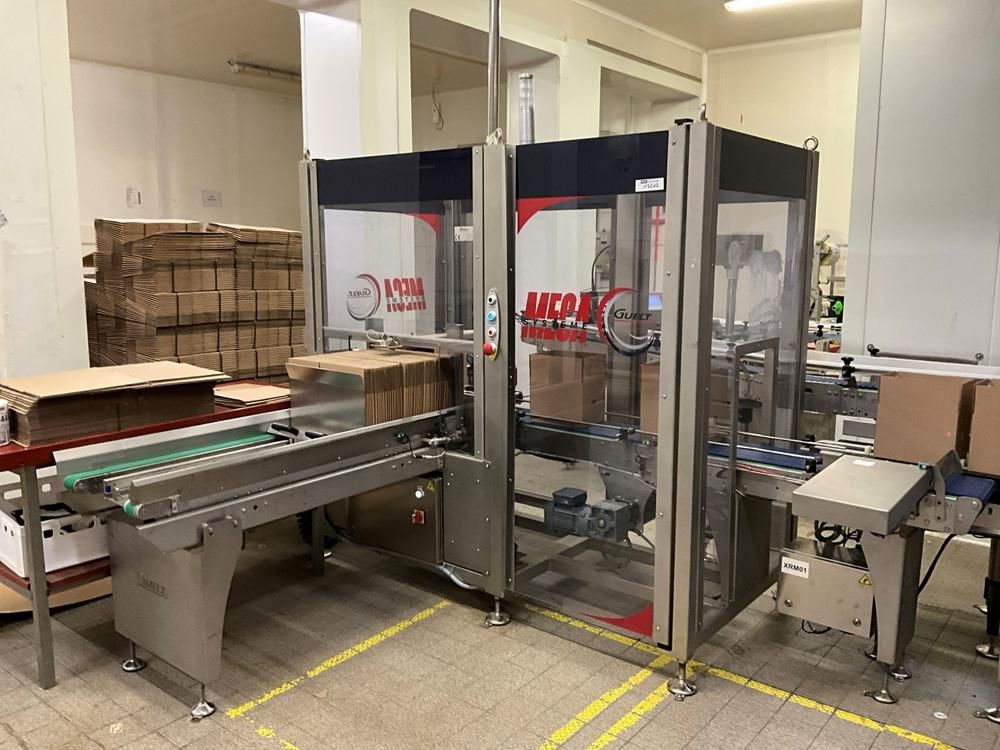

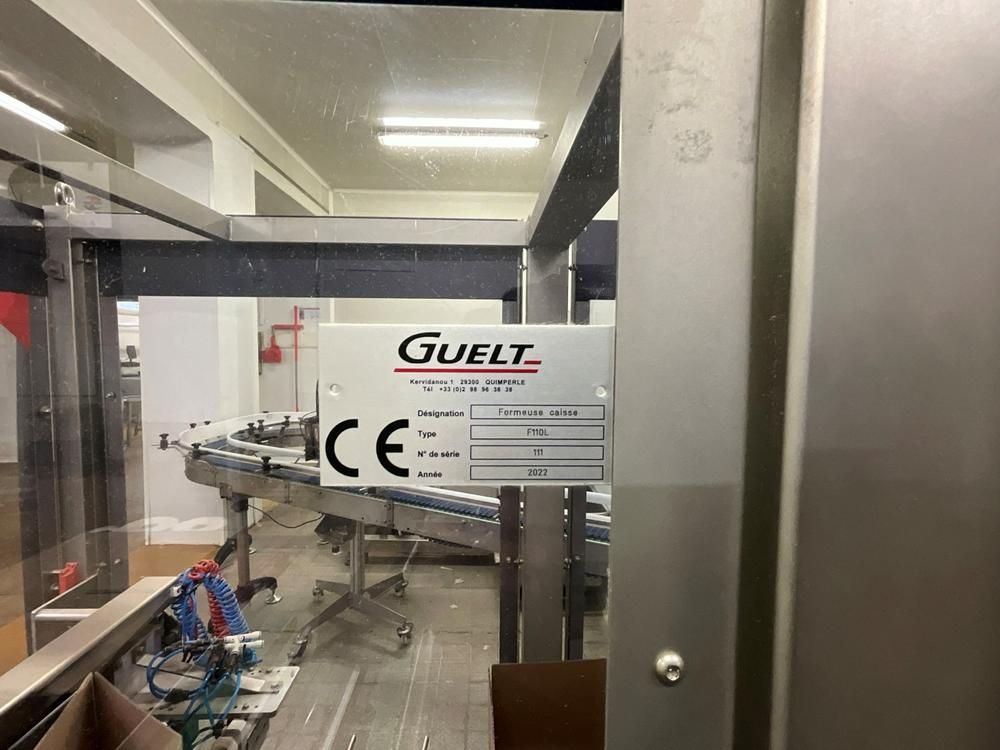

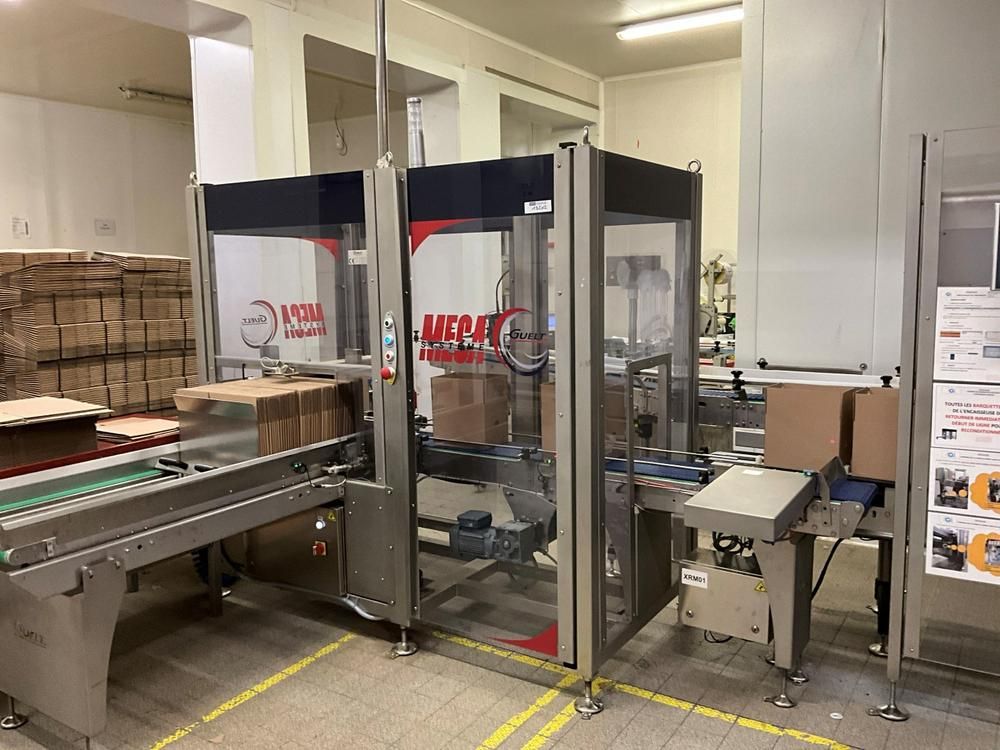

* GUELT F110L box former:
* Serial number: 111
* Year: 2022
* Feed magazine for flat cardboard boxes
* Automatic box picking and forming system
* Motorized transfer conveyors
* Adjustable side guides
* Detection and positioning sensors
* GUELT IZIPICK 115 robotic case packer
* Serial number: 108168
* Year: 2019
Dimensions: Length: 288 cm x Width: 250 cm x Height: 224 cm

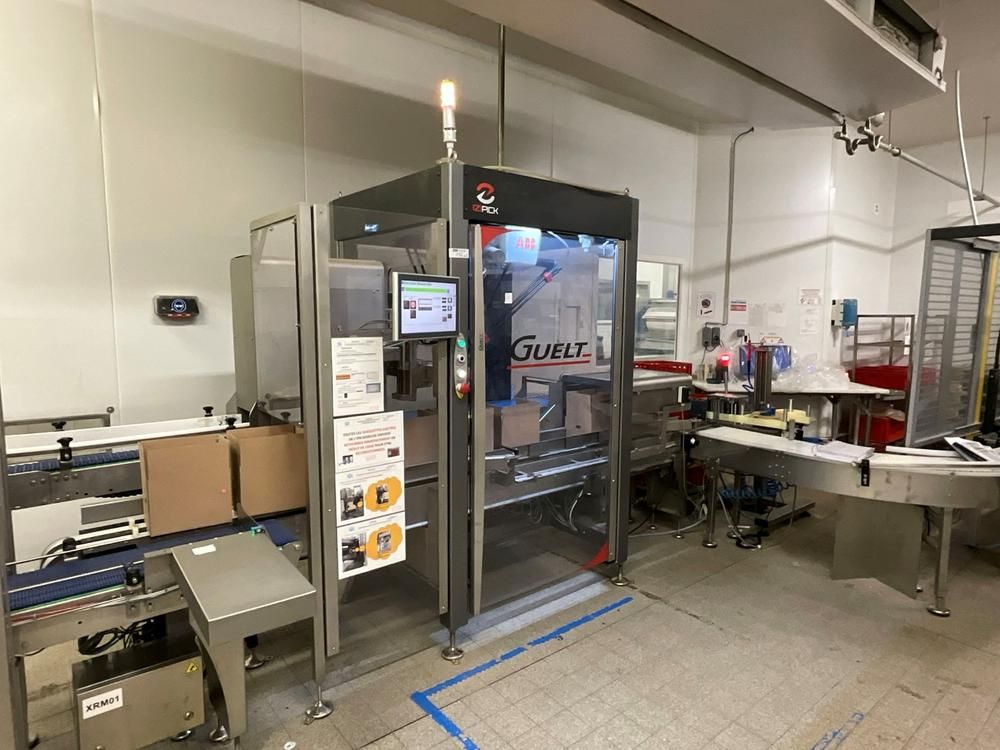

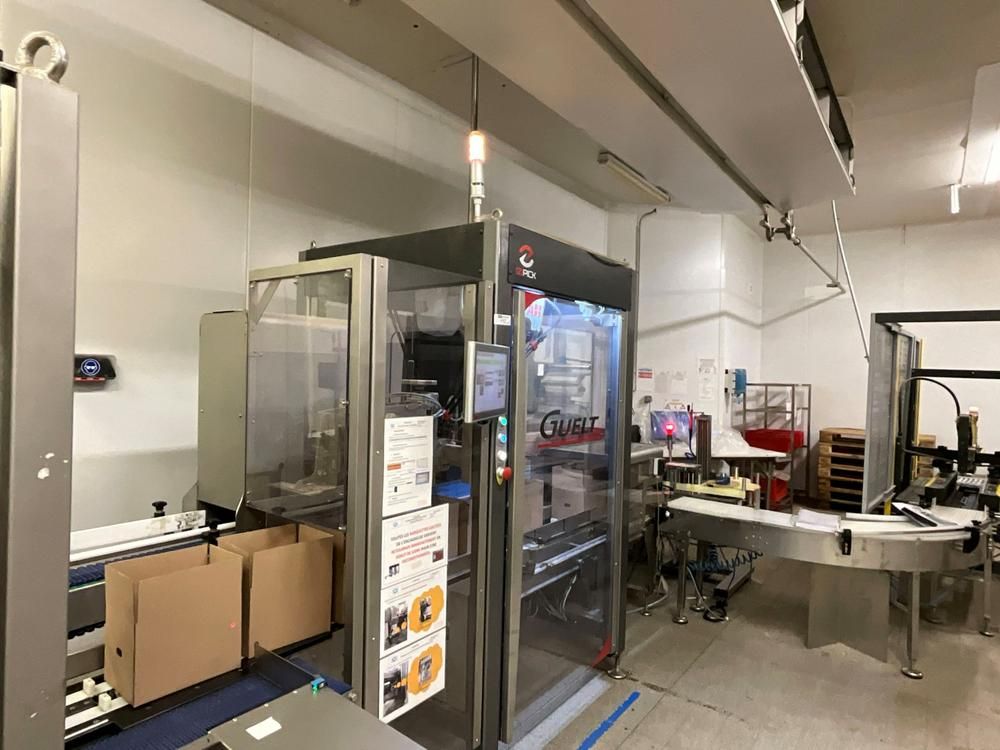

GUELT IZIPICK 115 robotic case packer

* Type: IZIPICK 115
* Serial number: 108168
* Year: 2019
* Machine designed for automatically picking up trays and placing them into cases

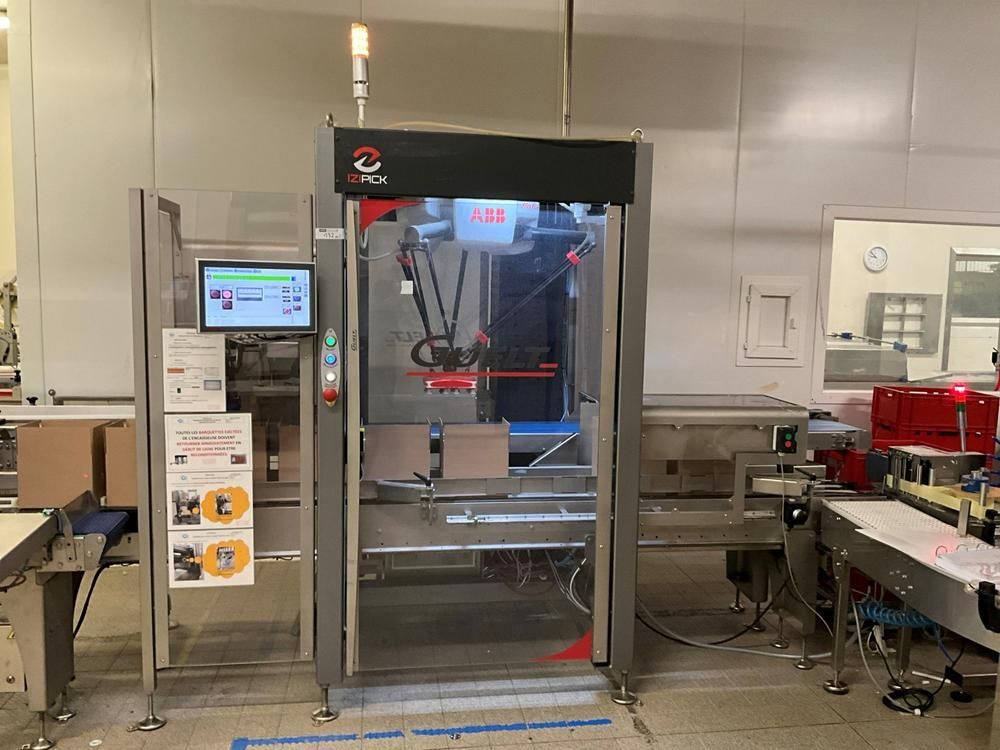

* ABB FlexPicker Delta robot
* Product handling via suction cups
* Products: Rectangular trays
* 3- or 4-lane configuration
* Product weight: 150 to 900 g depending on configuration
* Product height: 35 to 60 mm
* 4-lane format: 202 × 125 mm
* 3-lane format: 202 × 170 mm
* Maximum throughput: 64 products/min in 4-lane configuration
* Maximum throughput: 48 products/min in 3-lane configuration
* Capacity: 6 to 10 products per carton
* Case-packing speed: 6 to 12 cartons/min
* Outer carton sizes: 278 × 212 × 117 mm and 361 × 216 × 160 mm
* Beckhoff touchscreen operator interface
* ABB RobotWare programming terminal
* Safety enclosure
* IZIPICK dimensions: 1,890 × 1,260 × 2,550 mm
* Weight: approx. 1,100 kg

Process

1. Carton Feeding

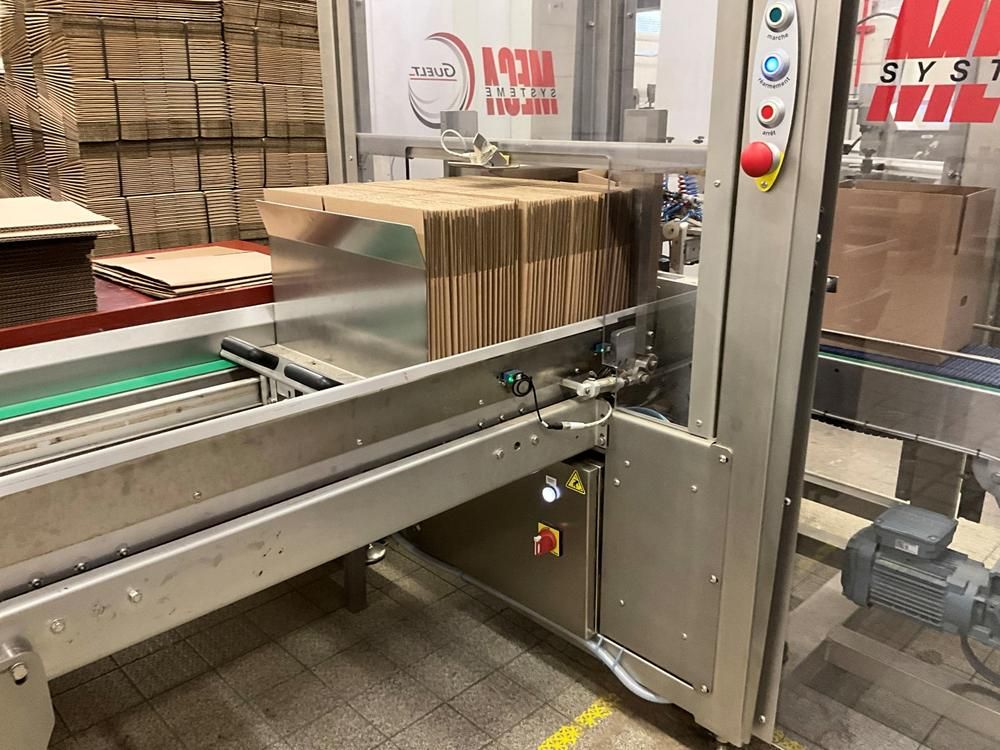

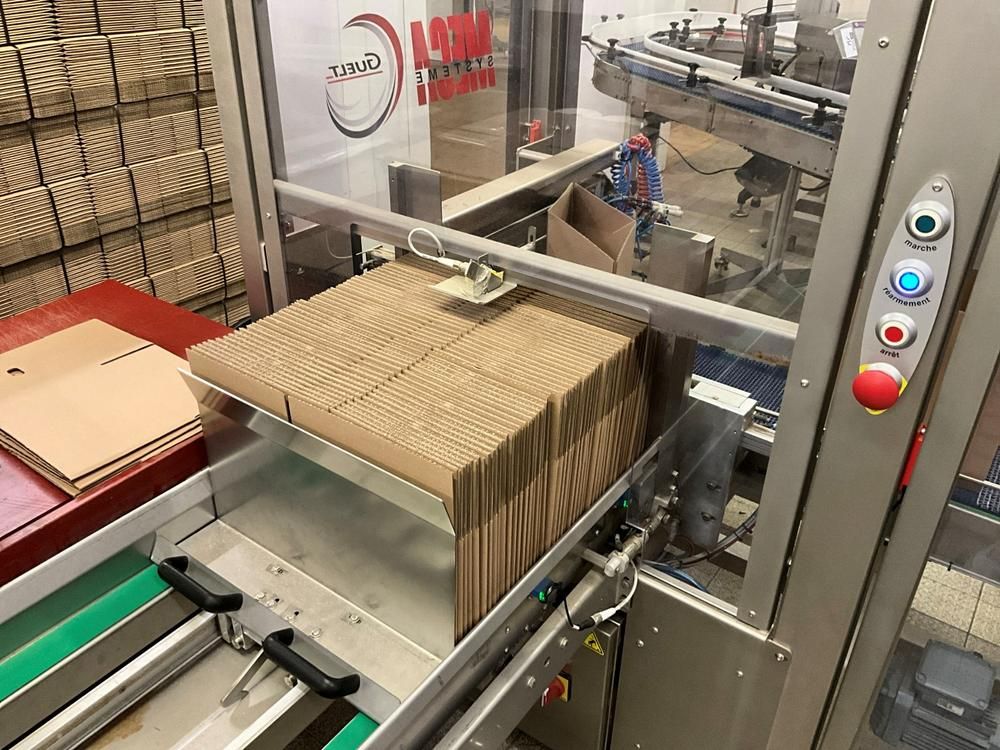

* Flat cardboard blanks are loaded into the case erector’s magazine.
2. Case Erecting

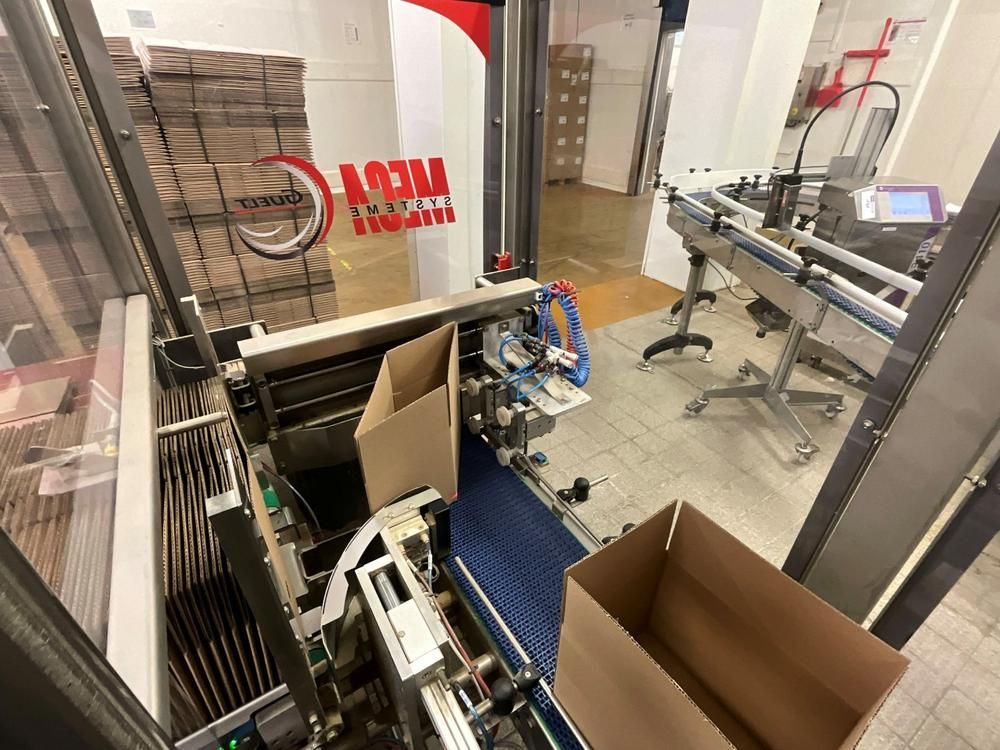

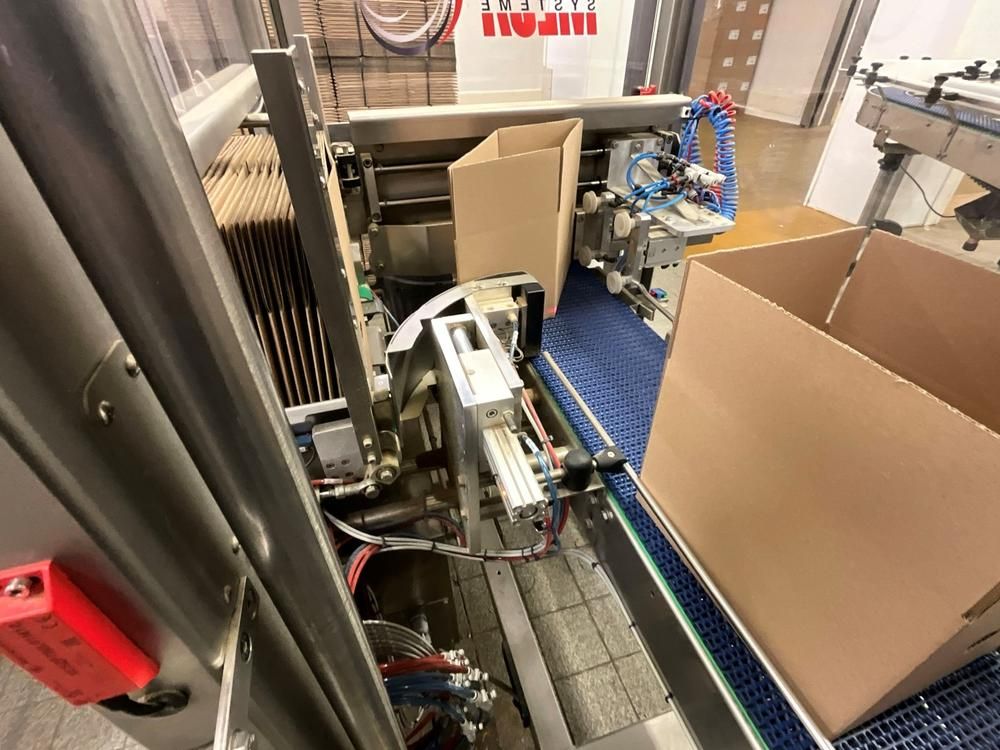

* The GUELT F110L case erector automatically retrieves a cardboard blank.
* The cardboard is unfolded and formed into a case.
* The formed box is placed on the conveyor.

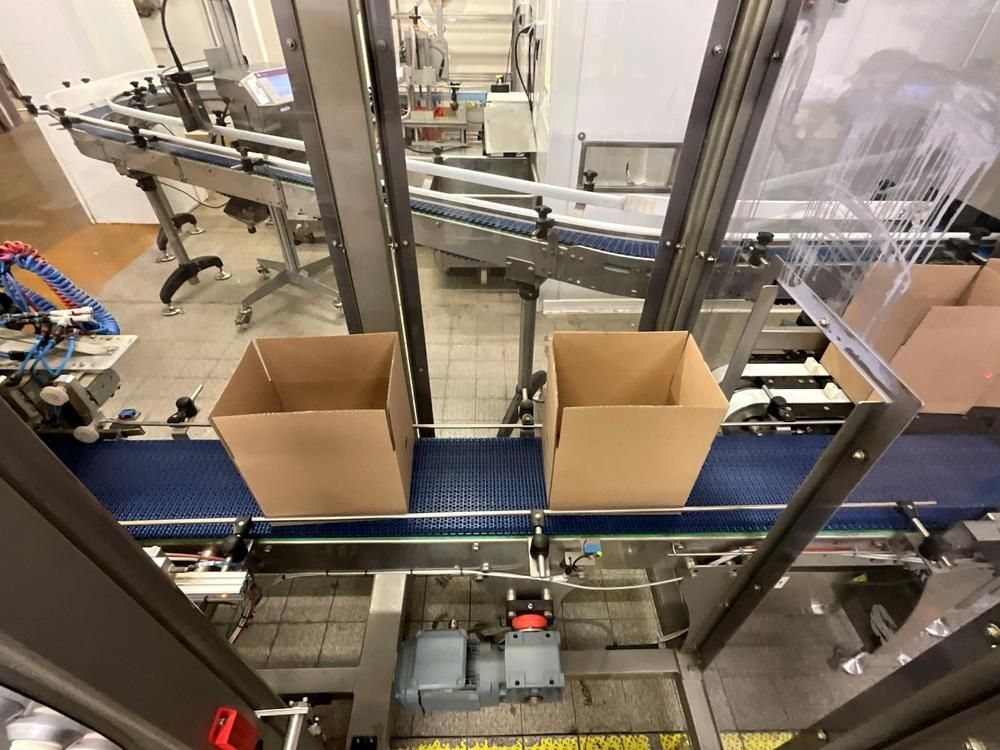

3. Box transfer
* The boxes are automatically conveyed to the case-packing cell.
* Guides and sensors ensure proper guidance, spacing, and positioning.
4. Product Feeding
* The products to be packaged arrive on the case packer’s feed conveyor.
5. Robotic Picking
* The ABB FlexPicker robot automatically picks up the products using its suction cup gripp
