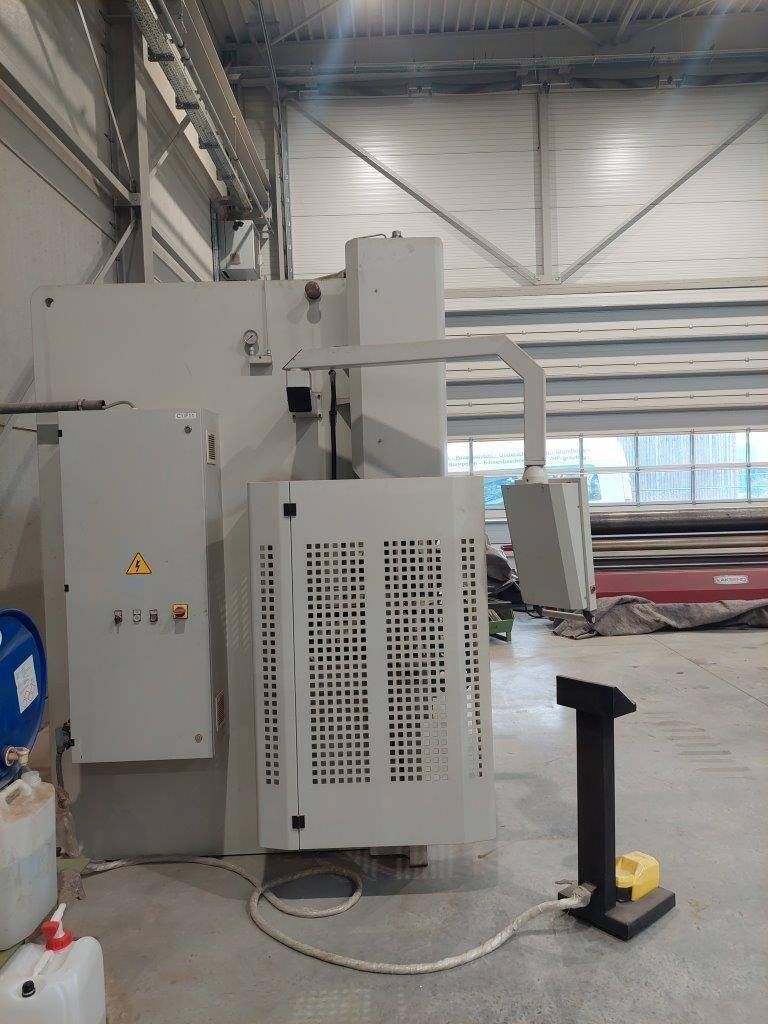

Folding bench MVD iBend C220-3100 3100mm 2016

Description

Brand: MVD
Type: iBend C 220-3100
Year of construction: 2016
Engine power: 18.5 kW
Operating hours: 300 h
Voltage: 400 V
Frequency: 50 Hz
Ampere: 40 Amp
Maximum bending length: 3100 mm
Power: 220 Tons
Pressure: 300 Bar
Distance between columns: 2600 mm
Course: 310 mm
Discharge: 500 mm
Table height: 975 mm
Rapid traverse speed: 110 mm/sec
Bending speed: 11mm/sec
Rear stop: 750 mm
Main motor: 3x 400 V/ 50 Hz
Net weight: 12500 kg
Dimensions: 4800x2970x2550 mm

Options:
Equipped with Delem DA 56 CNC control
Top and bottom beam made of high-quality material with as little tension as possible and as much resistance as possible
Exceptional 500 mm discharge
Top slide mounted in ground guides
Linear rulers check rapid traverse and bend depth
Original Wila Manual Bombing Device
Recording above tool Amada Promecam quick-change system
ground and chromed cylinders
European sealing components
Modern and compact hydraulic components according to European standards (Bosch, Rexroth and Hoerbiger)
Top and bottom beam made of 42 CrM04
Bottom beam for clamping V-tools, width 60 mm
Support arms with T-slots
Foot pedal and two-hand operation
Control console on swing arm
Electrical components from Siemens and Telemecanique

Machine description:
Machine is working.
Works separately or can be linked to lot 208 for a folding width of 6200 mm.
Manual is available.
