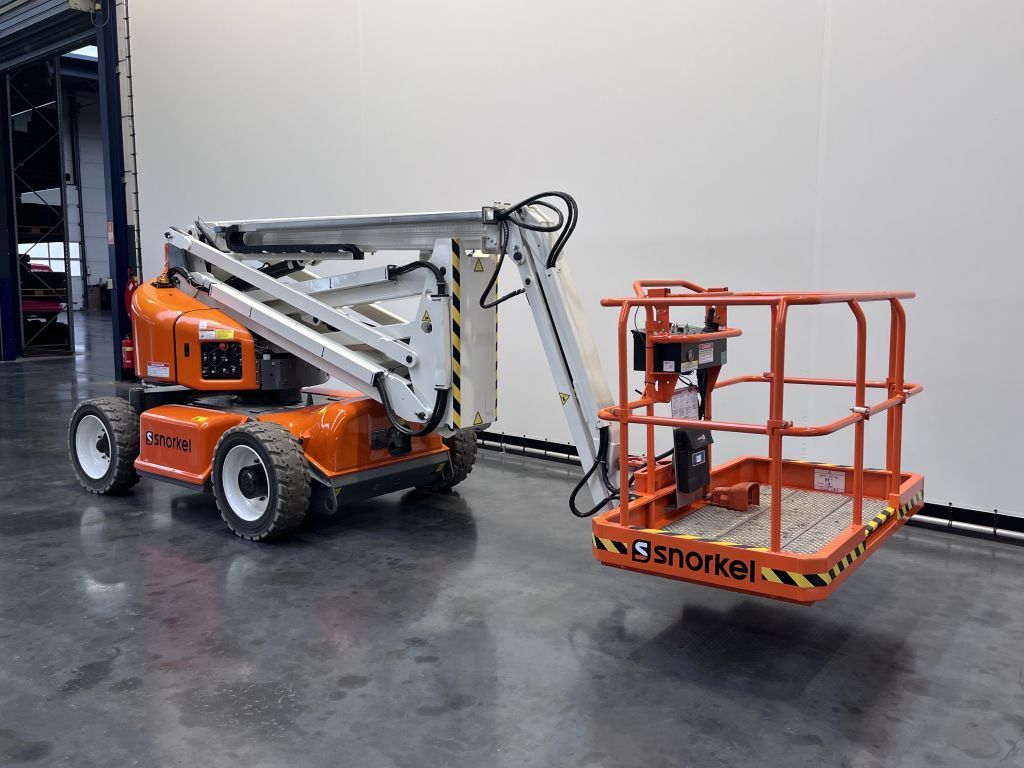

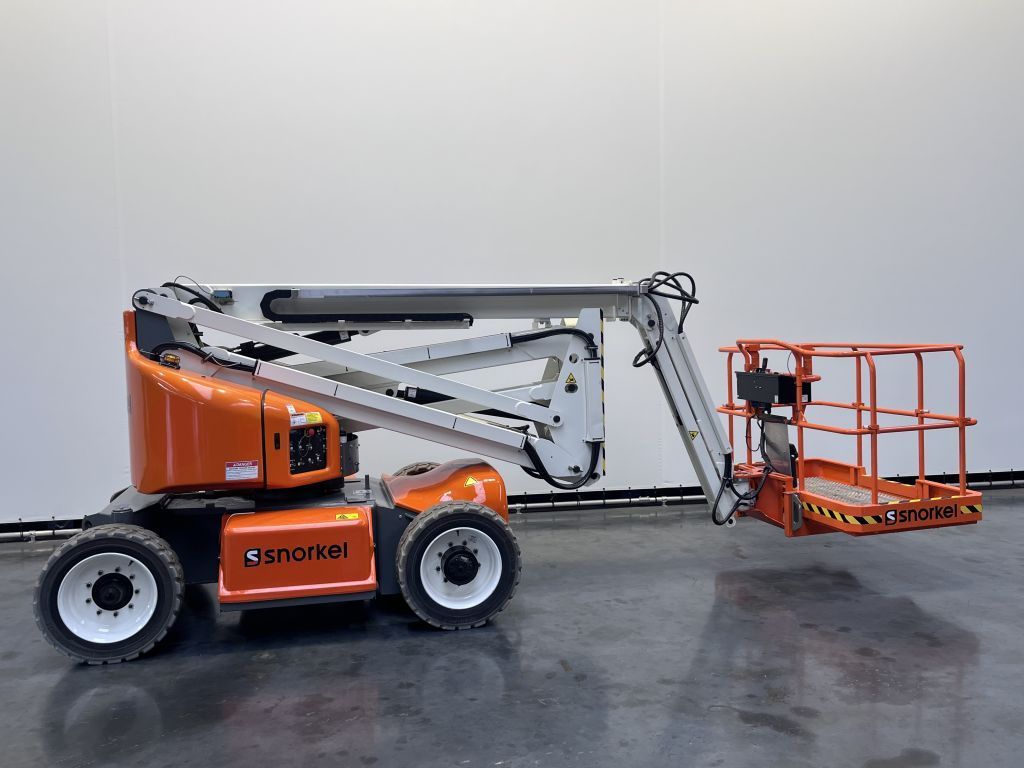

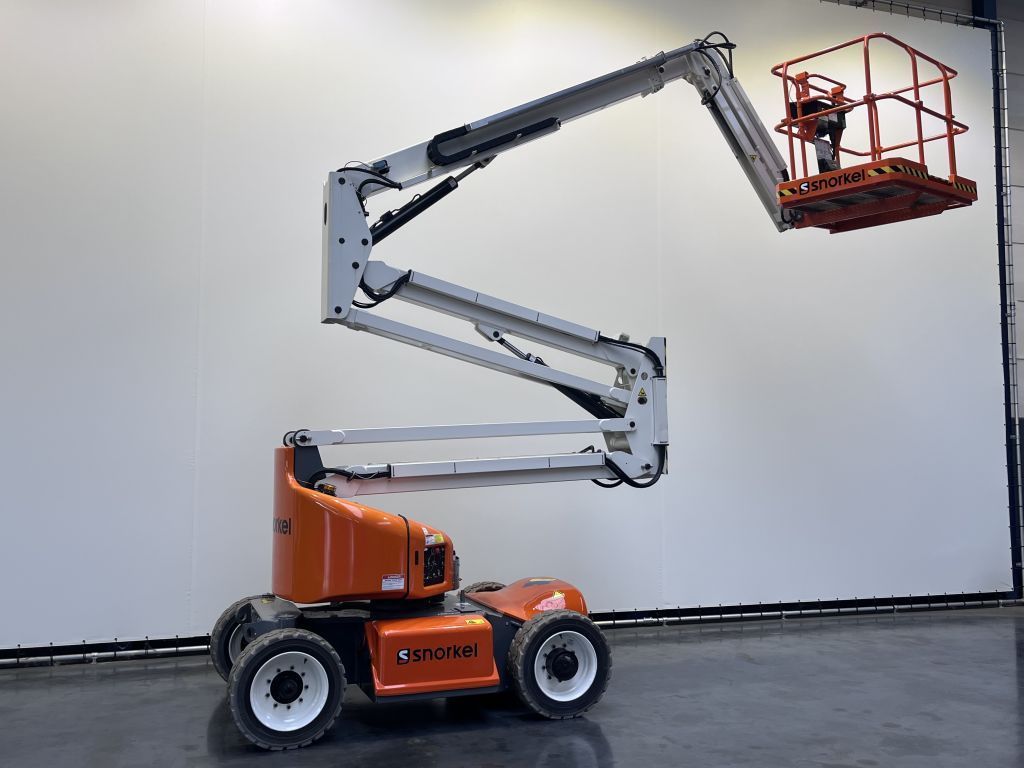

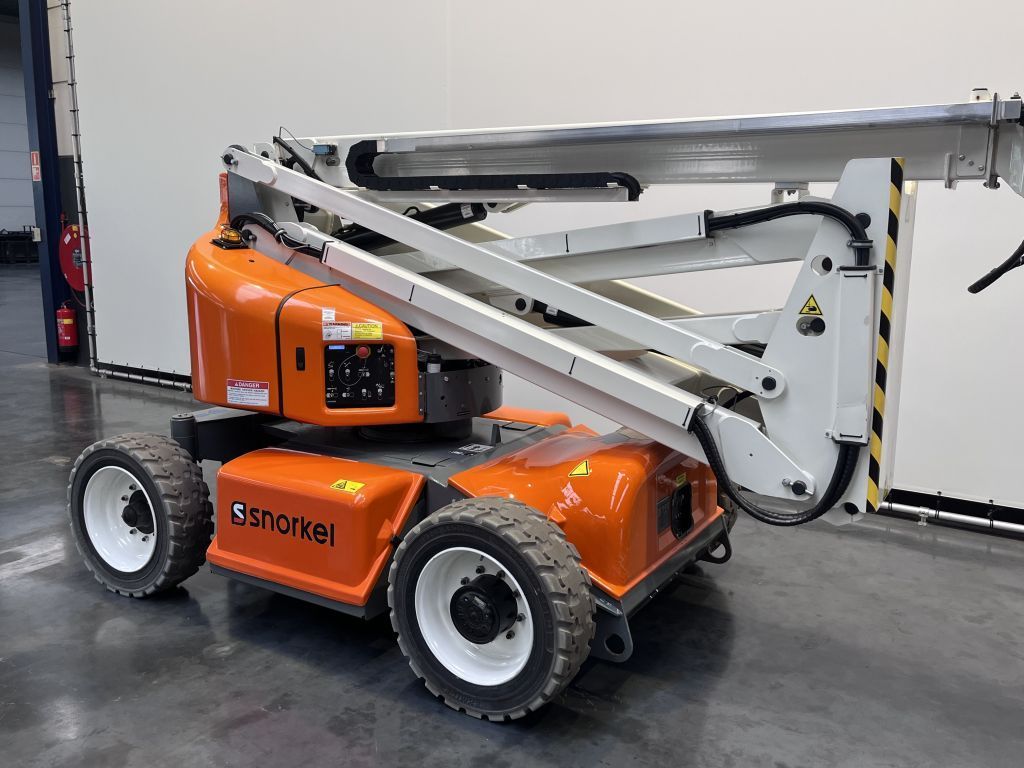

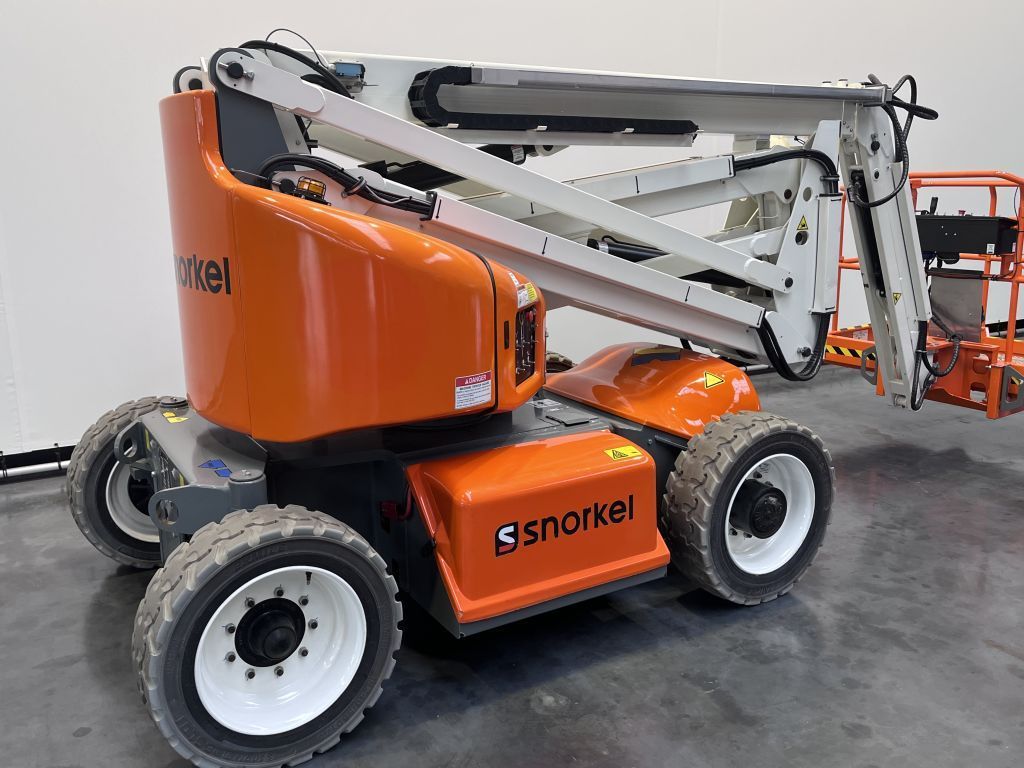

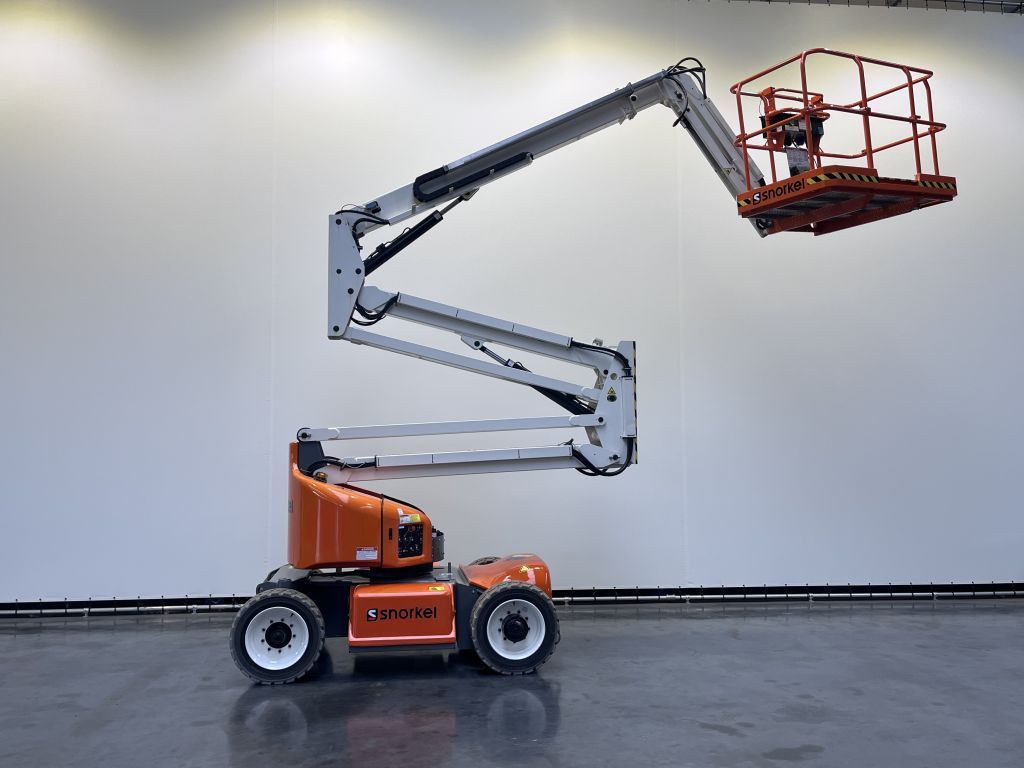

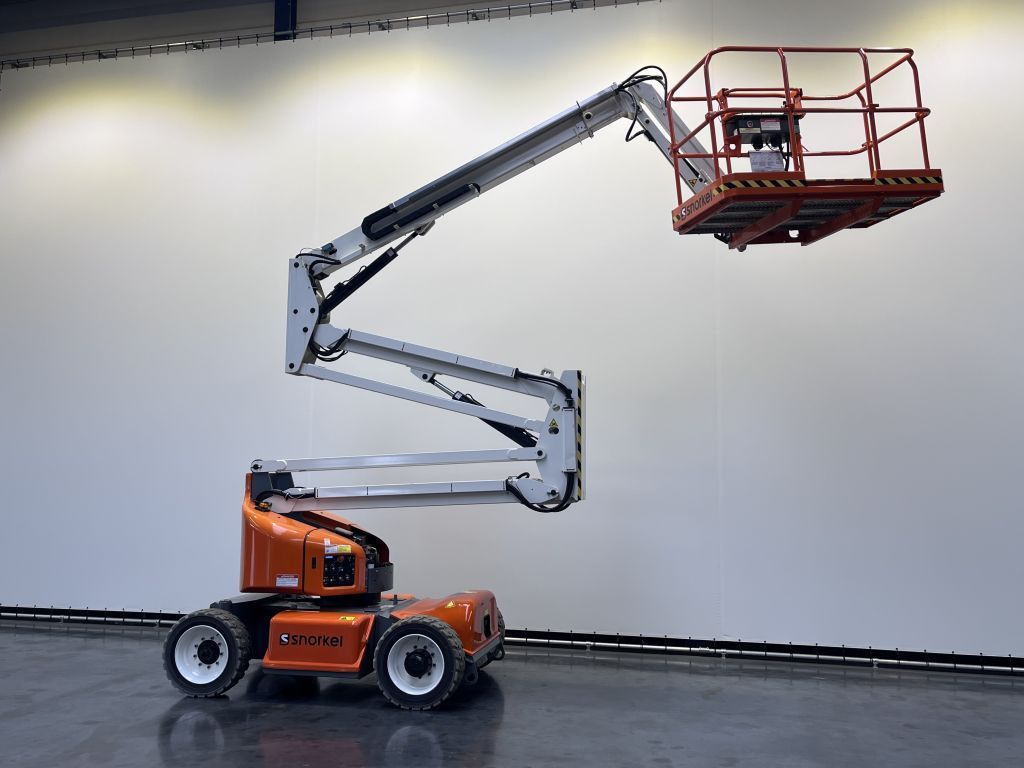

Snorkel A 46 JE
4139270
288x viewed
28 Nov '25
Basic information
Model/Type
Snorkel A 46 JE
Condition
Used
Price
€38,500 VAT ex.
Year of construction
2020
Type of fuel
Electric
Year of manufacture
2020

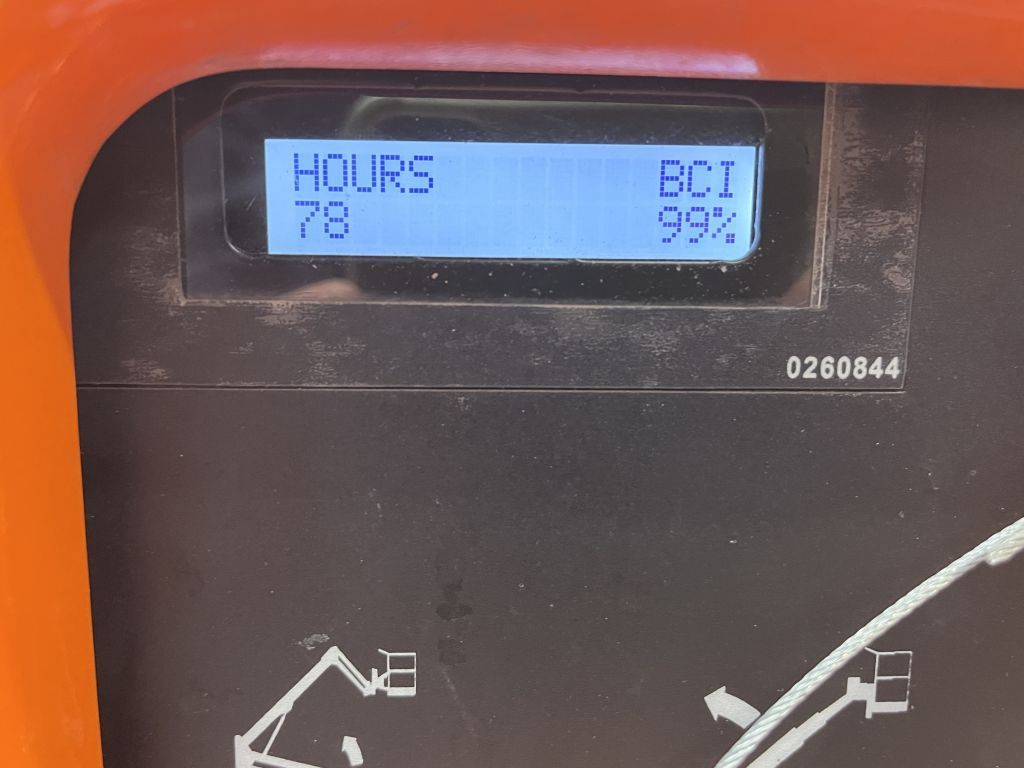

Operating hours
78
Drive
Wheel
Empty weight
6710 kg
Carrying capacity
227 kg
GVW
6937 kg
Mast
articulated arm
Lifting capacity
227 kg
Working height
160 cm
General condition
very good
Technical condition
very good
Visual appearance
very good
Damages
none
Options
Particulate filter
Reference number
6970
Description
Specifications
Max. working height 16.0m
Max. platform height 14.0m
Max. horizontal reach 7.35m
Clearance height at max. outreach 7.46m

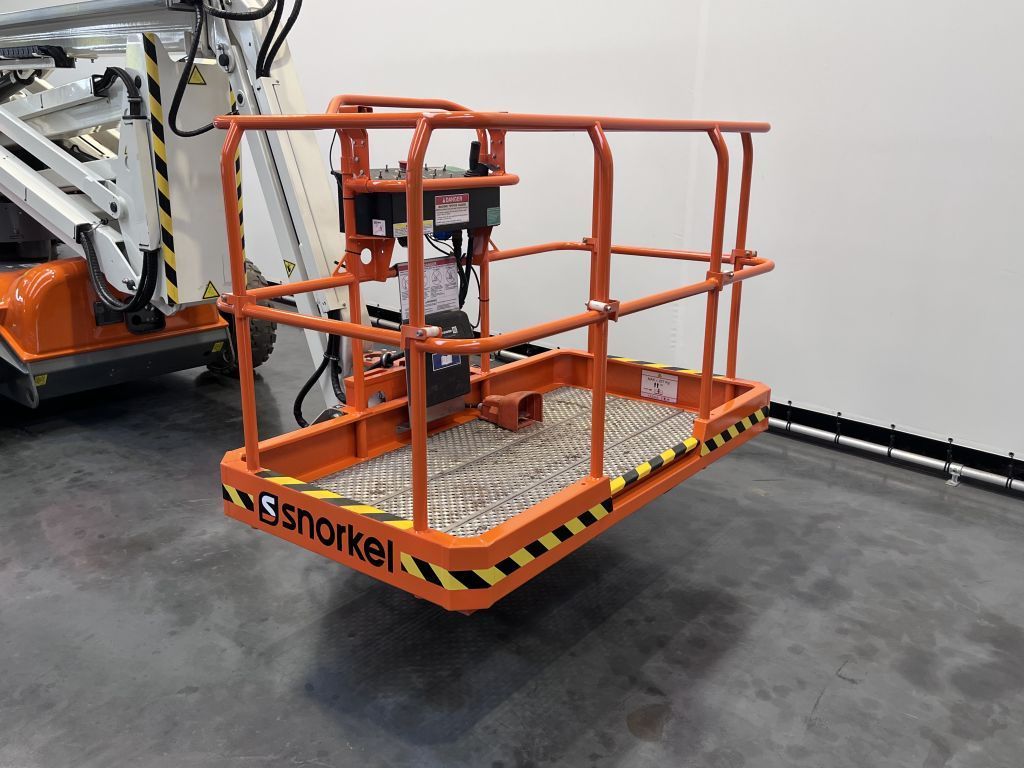

Platform size 1.0m x 1.83m
Chassis width 1.7m
Overall length 5.6m
Stowed height 2.0m
Ground clearance 152mm
Platform capacity (SWL) 227kg
Max. drive height 14.0m
Max. wind speed 12.5m/s
Max. drive speed (elevated) 0.8km/h
Max. drive speed (stowed) 5.1 km/h
Raise / lower time 99 / 92 seconds
Gradeability 20%
Jib length 1.5m
Jib arc 140°
Superstructure rotation 360° non continuous
Tailswing 0m
Inside turning radius 0.6m
Outside turning radius 3.0m
Tires Non-marking IN240/55D 17.5

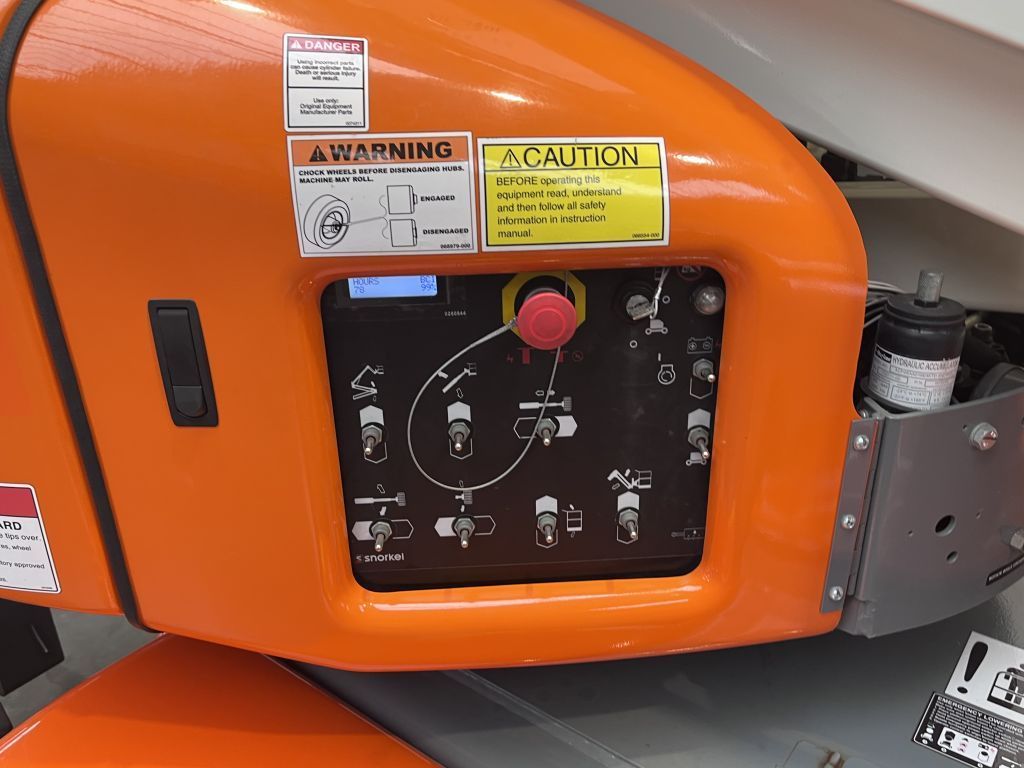

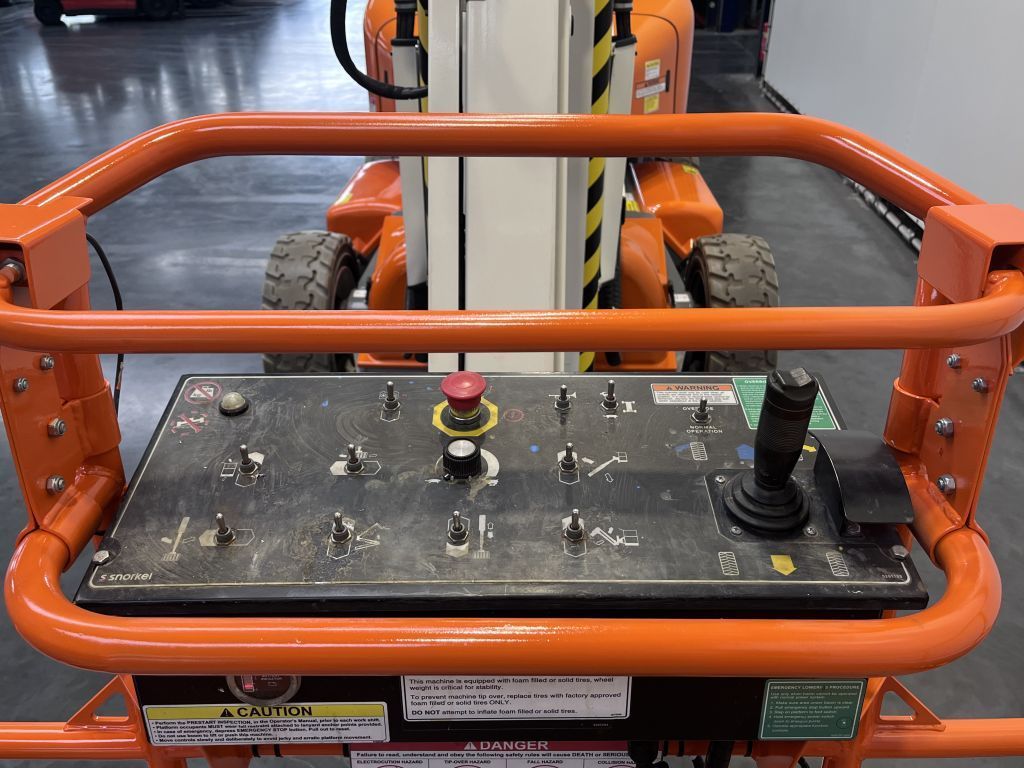

Controls proportional
Drive system 2 wheel drive
Power source 8 x 6V batteries
Weight 6710 kg
