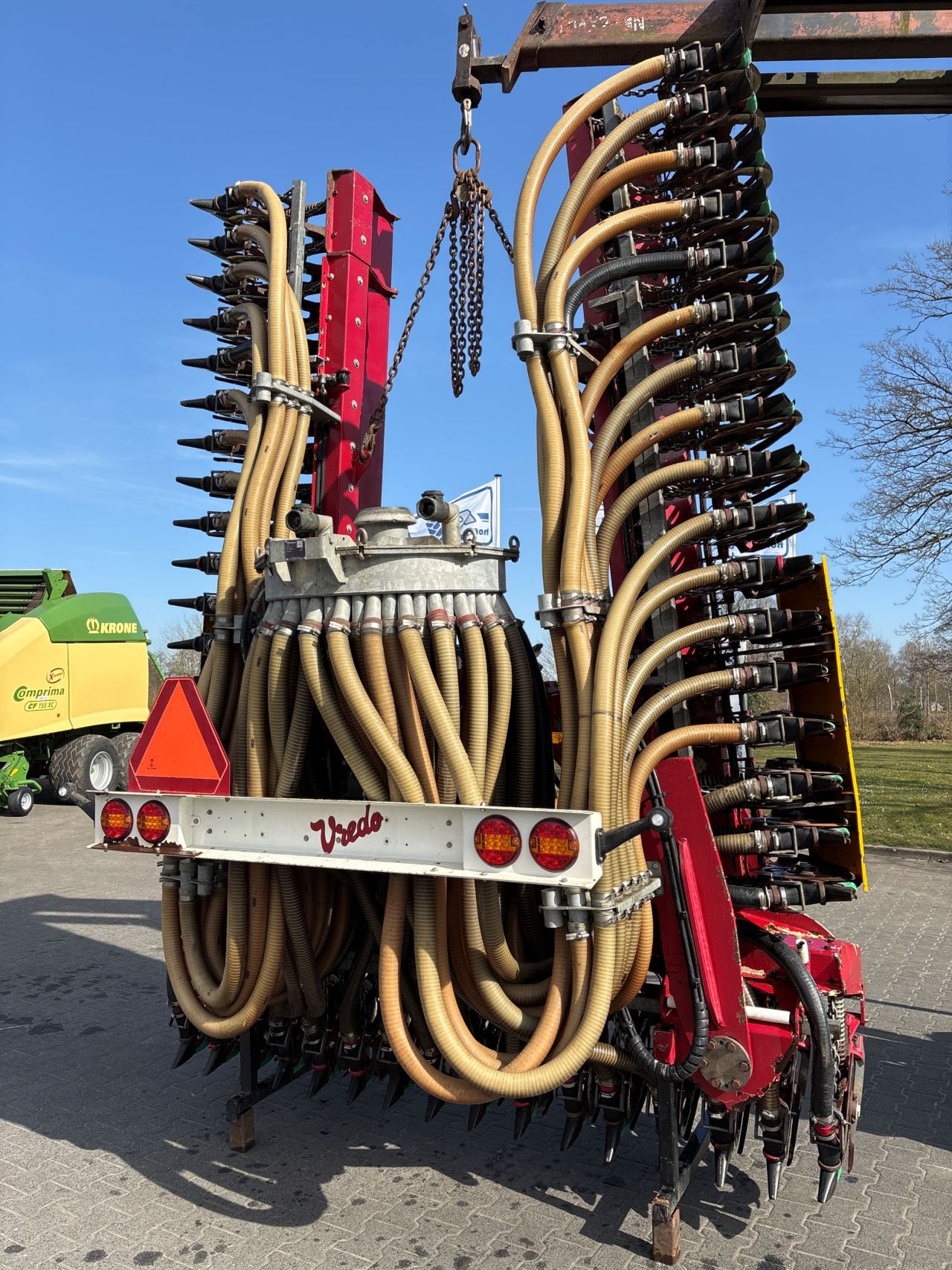

VREDO ZB 8750 with some work

Description

VREDO ZB 8750
Machine no. 1121.365
Year of construction 2020

NOTE: Discs and slip feet are worn, need to be replaced.

Specifications:
-Work width 8.4 metres
-Travel distance 17.5 cm
-Vredo double disc system (spoke discs 408mm diameter)
-Automatic Central SKF bearing lubrication and lubrication of other pivot points by means of grease pump mounted on manure injector
-Grease pot 4L
-Required for power supply: 1 electrical connection point 12V 15A on traction vehicle.
Automatic hydraulic shut-off kit
-Horizontal Vogelsang Dosimat 50 distributor
-3 folding parts with automatic locking
-Leveling distributor
Easily replaceable wear-resistant plastic gliders
-Stainless steel hose clamps on manure hoses and discharge nozzles
-Transport width 2.85 metres
-Weight ±3145 kg
-Automatic disc protection for road traffic with reflective parts
-LED lighting
-A-frame quick coupling
-Special angular contact bearings for disc bearings
-6‘ KKV Manure hose connection on distributor (6’ father part)

Required hydraulics:
-3x DW (2x open centre, 1x closed centre), The manifold requires a continuous oil flow of 55 l/min
-1x pressureless return

Connections:
-2x 1/2’ in/out valves
-2x 1/2’ valves
-2x 3/4’ manifold
-1x 1/2’ pressureless return
