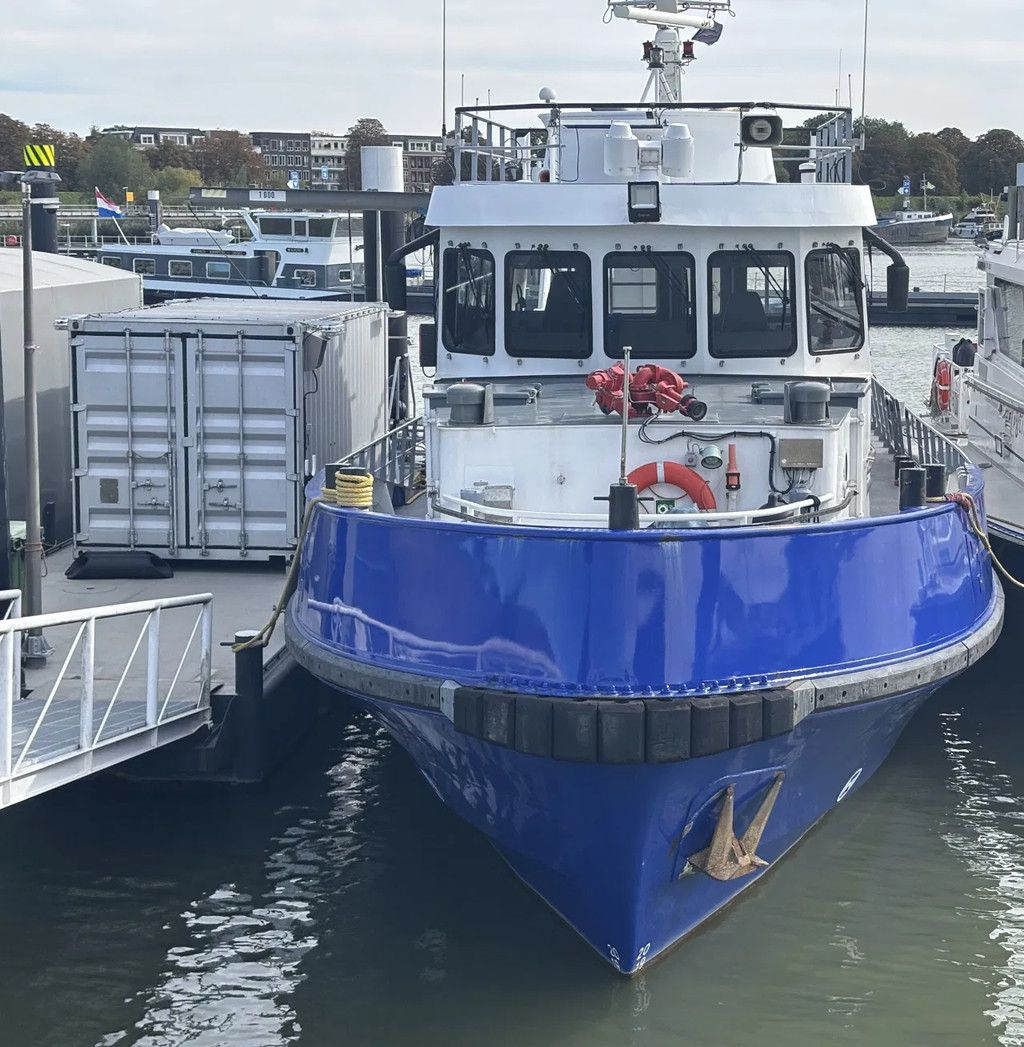

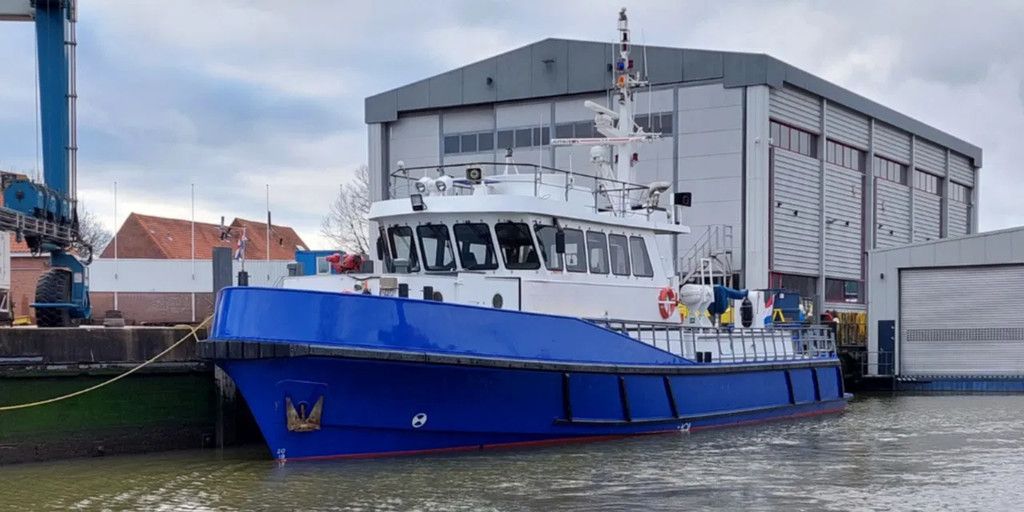

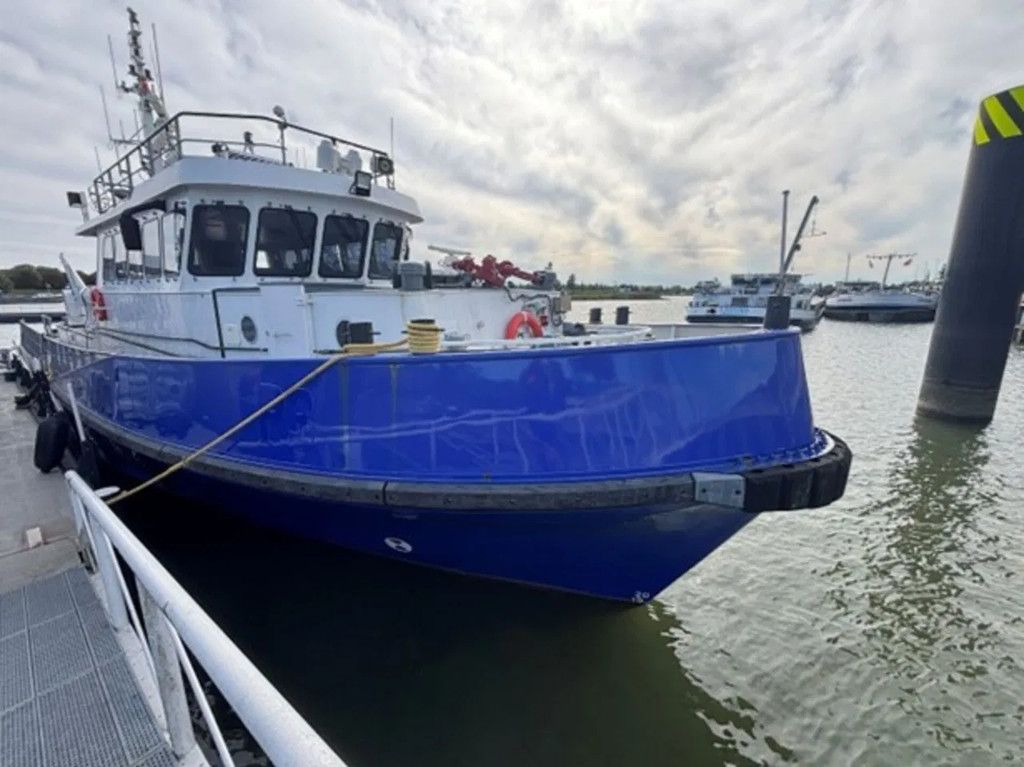

Engelaer shipbuilding B.V. P-3 Engelaer shipbuilding B.V. P-3

Description

Brand: Engelaer Shipbuilding B.V.
Type: P-3
Material: Steel hull, aluminium superstructure midships
Dimensions: L×W×Depth approx. 23.93 × 6.00 × 2.84 m
Year: 1997
Condition: Used, reportedly functioning

Specifications
General Information

Registration number: –

Hull number: 783

Vessel name: P3

Home port: Rotterdam

Vessel type: Surveillance / patrol vessel

Dimensions (L × W): 23.93 m × 6.00 m

Depth: 2.84 m

Gross tonnage: 98 tons

Net tonnage: 29 tons

Construction / hull type: Steel hull with aluminium superstructure

Builder: Engelaer Shipbuilding B.V.

Year built: 1997

IMO number: 9201748

Maximum speed: approx. 28–30 km/h

Propulsion

Engine make / type: 2 × MTU 12V183 TE62

Engine year: 1998

Cylinders / power: Each 12 cylinders / 550 kW per engine at 2,300 rpm

Fuel: Diesel

Drive: Shaft drive

Propellers: 2 × 5-blade propellers

Gearboxes: ZF BW 190 series, reduction 2.03:1, equipped with trolling function (Stratof)

Steering: Hydraulic, main and emergency steering

Bow thruster: Present (hydraulically driven)

Starboard engine hours: 4,099.6 hours

Port engine hours: 4,495.0 hours

In September 2015 the main engines had approx. 20,000 hours; counters were replaced afterwards.

Other: Engine overhaul in 2016

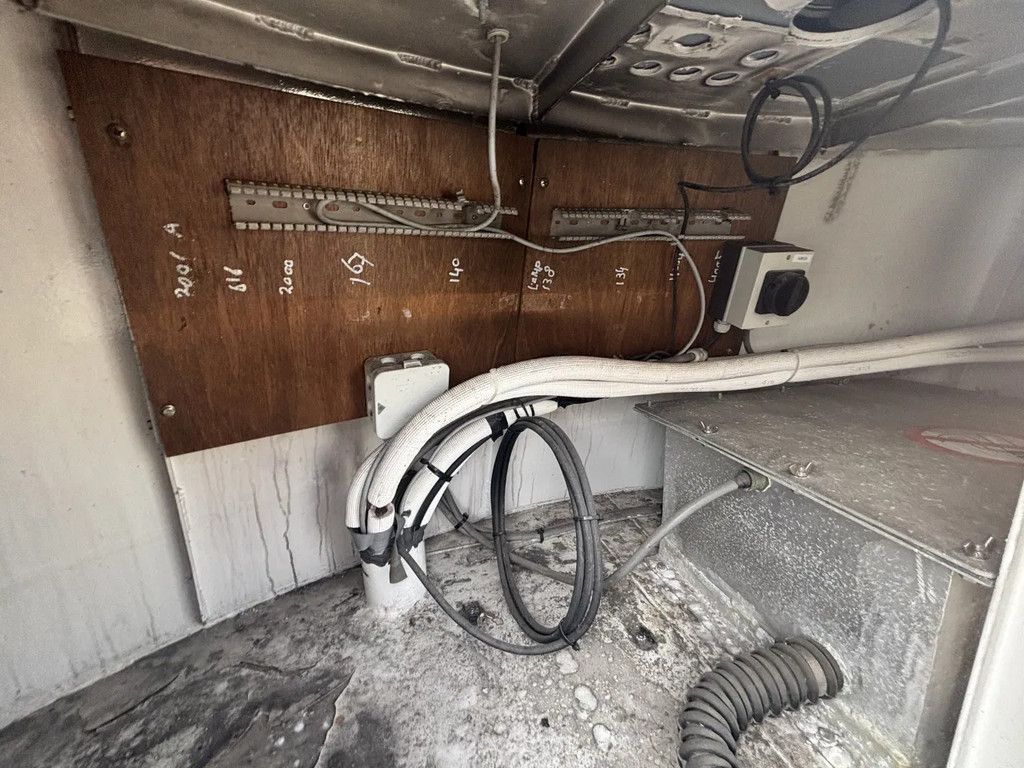

Electrical Installation

Batteries: Start and emergency batteries 24V

Inverter: Victron Energy

Rectifier: Victron Energy

Generators: Two Perkins type 1006TG1A diesel-driven generators, coupled to Stamford generators (400/230 V, 50 Hz, 52 kW), soundproof casing included

Operating hours generators (approx.): Port: 6,369 h – Starboard: 6,208 h

Equipment

Anchor winch with chain: Yes, electrically operated

Anchor(s): Yes

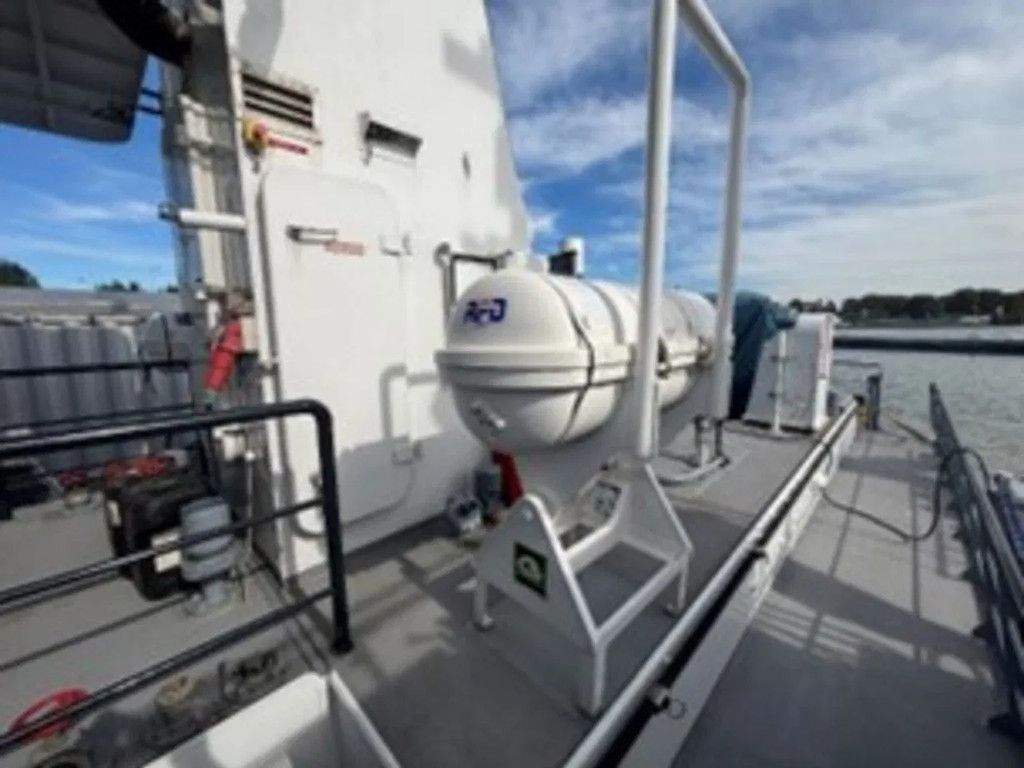

Life rafts: 2 × 6-person, hydrostatic release

Heating: Diesel-fired central heating

Air conditioning: Yes

Refrigerator: Yes

Central heating: Yes, diesel-fired

Radiators: Yes

Deck crane: Manual slewing crane, SWL 300 kg

Water cannons (riot control): 3 units, diesel pump driven

Hydraulically operated mast

Electric winch

Stern ramp with launch platform

Tender boat: Will not be sold with the vessel

Auxiliary Equipment

2 × general service pumps (Elsto, 22 kW)

2 × bilge pumps + manual emergency bilge pumps

Boiler (Raritan 1700) and hydrophore (Speck PM10)

Water cannon installation with diesel pump (Volvo Penta TAMD 41F, 137 kW, 240 m³, 127 hours)

Auction

Auction: Government auction – Police patrol vessel
Closing date: Thursday, 4 December, from 16:00
Location: Krinkelwinkel 23a, 4202LM, Gorinchem
